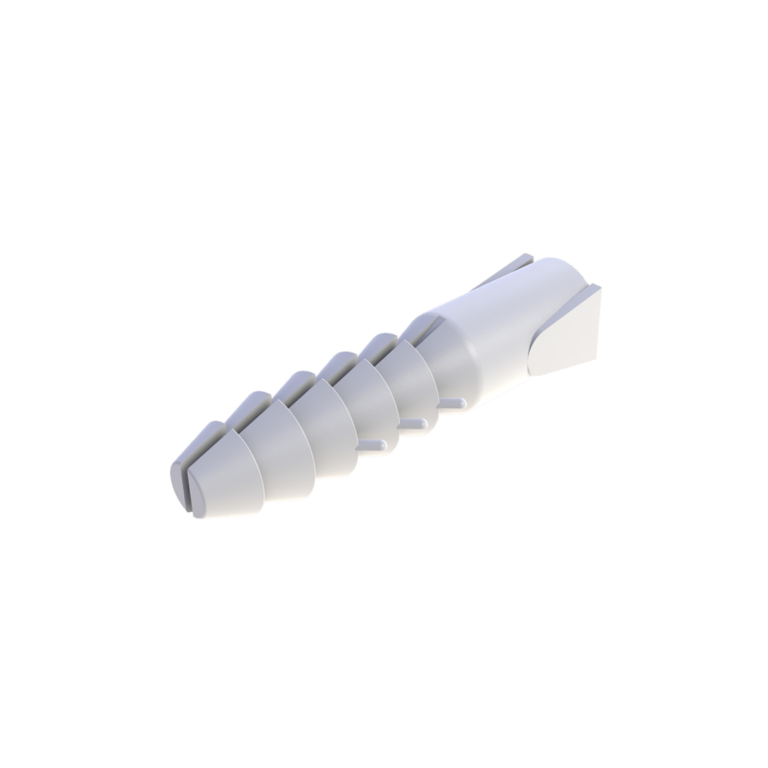

Plastic anchor (upat)

Name: Plastic anchor (upat)
SKU: NPD
Price: 1.00 EUR
Availability: InStock

MODEL: NPD

Used in the places like the assembly of the trifold clips onto concrete or at places where the connection with screw (plug screw) is requested.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

ZOOM IN

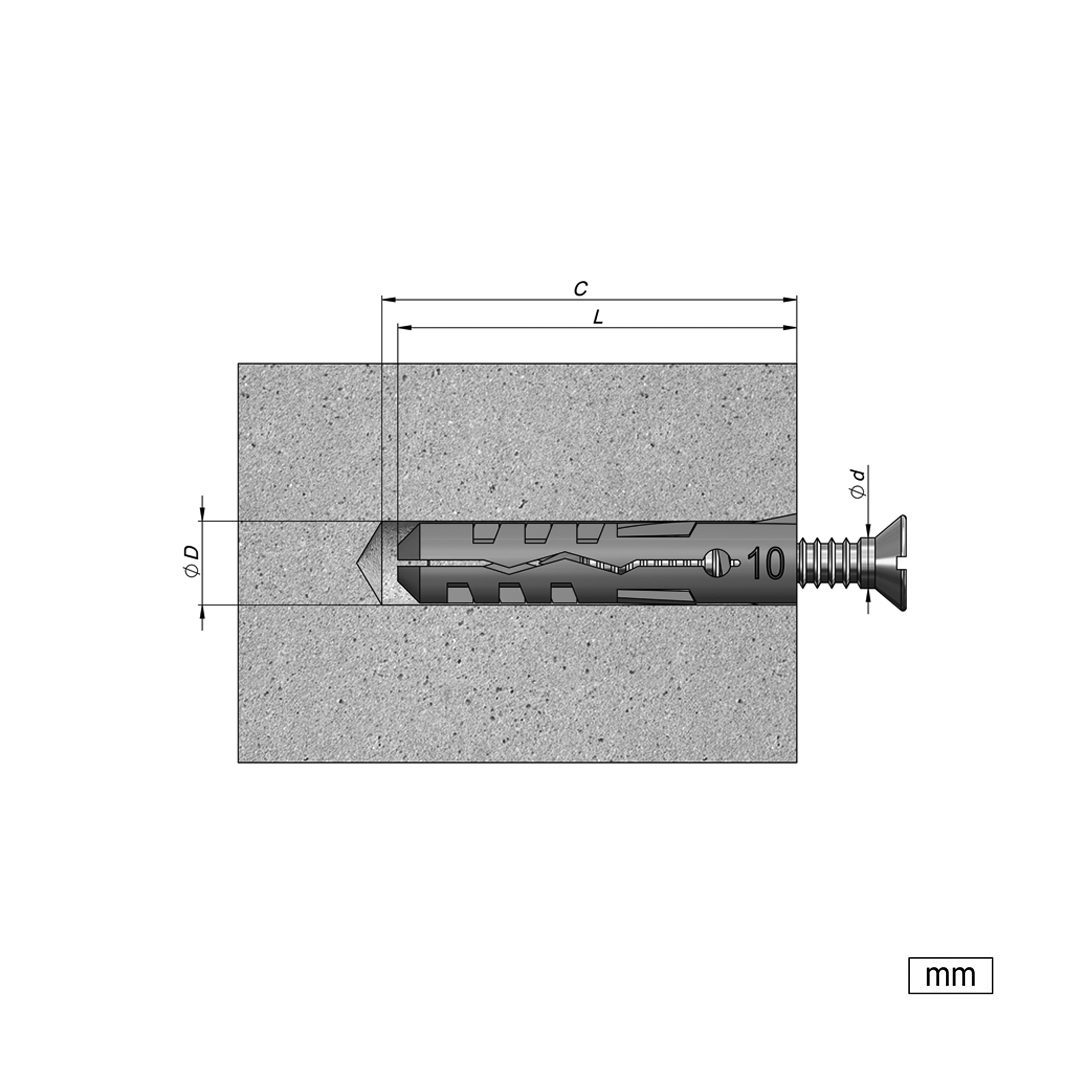

Code	M	ØD (mm)	Ød (mm)	L (mm)	C (mm)	Quantity per box
NPD10	10	10	6-8	45	55	25.000
NPD12	12	12	8-10	55	65	10.000
NPD14	14	14	10-12	60	70	5.000
