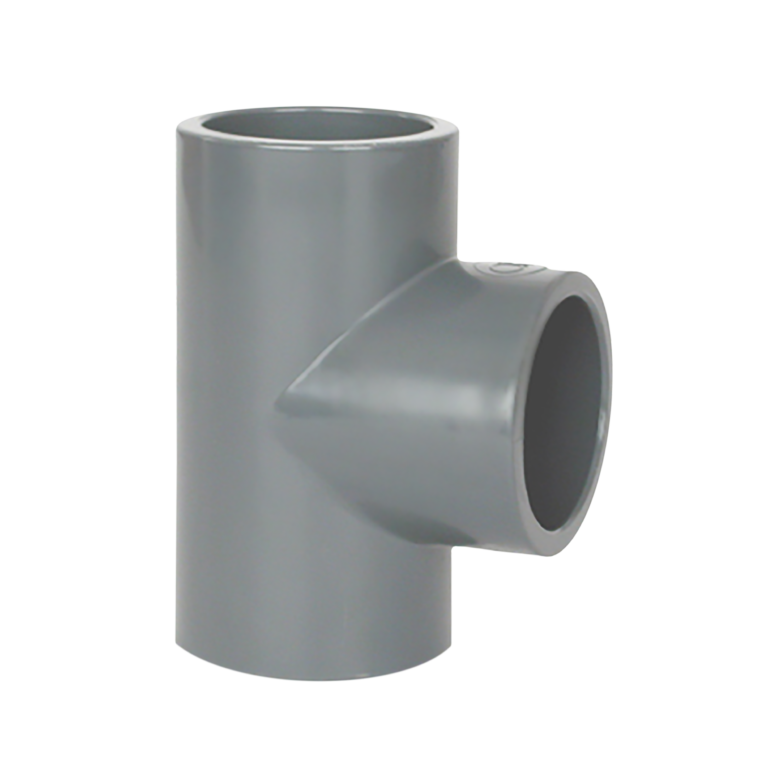

Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
Assembly:
Κωδικός | DN | A | B | C | D | Ø |
---|---|---|---|---|---|---|
7103016 | 10 | 16 | 25 | 14 | 11 | 16 |
7103020 | 15 | 20 | 25 | 16 | 11 | 20 |
7103025 | 20 | 25 | 32 | 19 | 14 | 25 |
7103032 | 25 | 32 | 40 | 22 | 17 | 32 |
7103040 | 32 | 40 | 50 | 26 | 21 | 40 |
7103050 | 40 | 50 | 63 | 31 | 26 | 50 |
7103063 | 50 | 63 | 75 | 38 | 32 | 63 |
7103075 | 65 | 75 | 90 | 44 | 39 | 75 |
7103090 | 80 | 90 | 110 | 51 | 47 | 90 |
7103110 | 100 | 110 | 131 | 61 | 53 | 110 |
7103125 | 110 | 125 | 148 | 69 | 65 | 125 |
7103140 | 125 | 140 | 163 | 76 | 71 | 140 |
7103160 | 150 | 160 | 180 | 86 | 81 | 160 |
7103200 | 175 | 200 | 223 | 106 | 101 | 200 |
7103225 | 200 | 225 | 252 | 119 | 113,5 | 225 |
7103250 | 225 | 250 | 284 | 131 | 126 | 250 |
7103315 | − | − | − | − | − | 315 |
7103355 | − | − | − | − | − | 355 |
7103400 (PN4) | − | − | − | − | − | 400 |
7103500 | − | − | − | − | − | 500 |
