SBI-200
SBI-630
SBI-630
S.S. water bottom inlet
MODEL:
SBI
MANUFACTURER:
Injection moulded bottom inlet made of high-strength ABS and stainless steel AISI-316.
The top part of this inlet is flat-shaped. Adjustable flow rate.
Suitable for concrete pools.
Specifications
- Body made of highly resistant ABS material and face made of stainless steel AISI-316.
- Flow rate: 14m³/h.
- Designed for concrete swimming pools.
- UV protection.

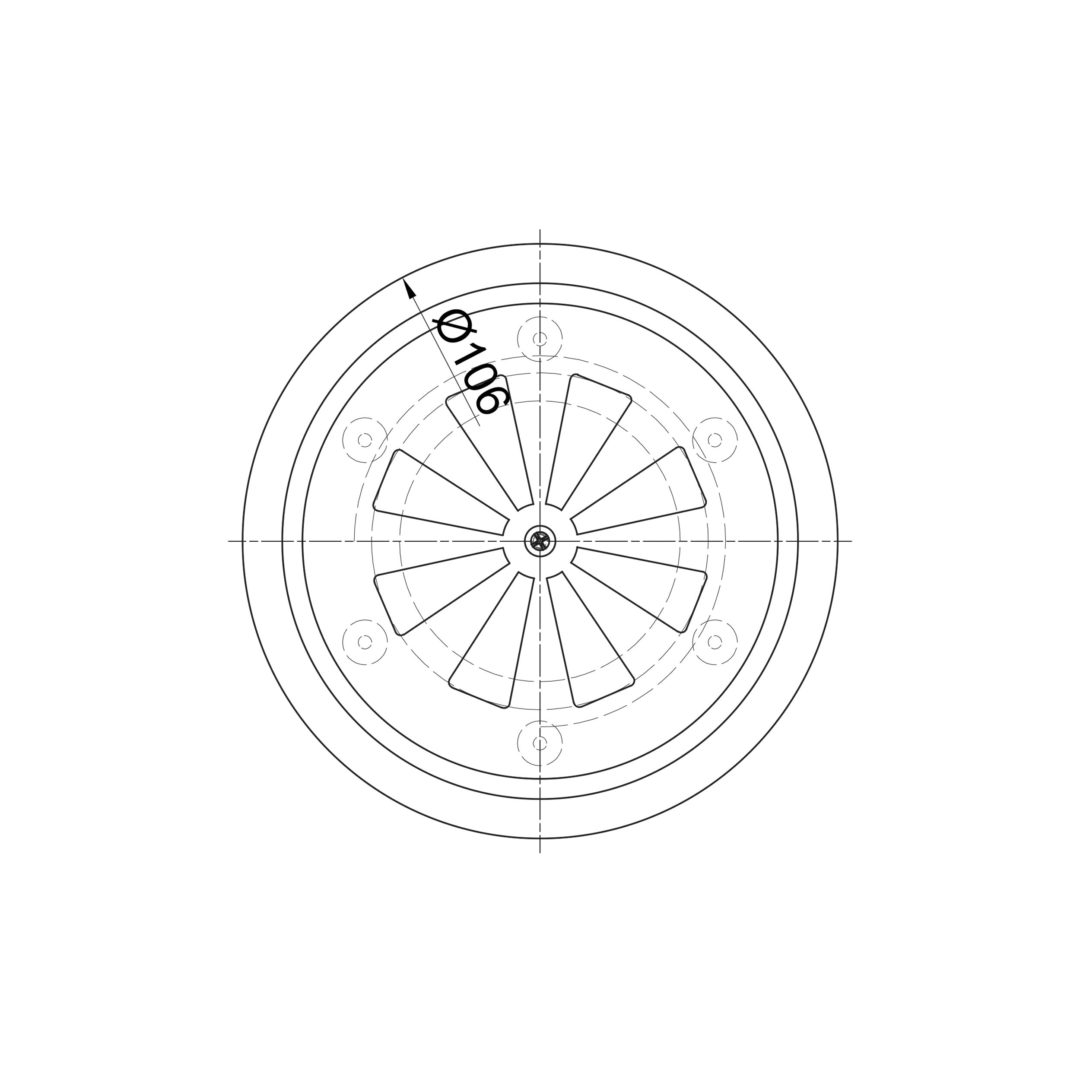

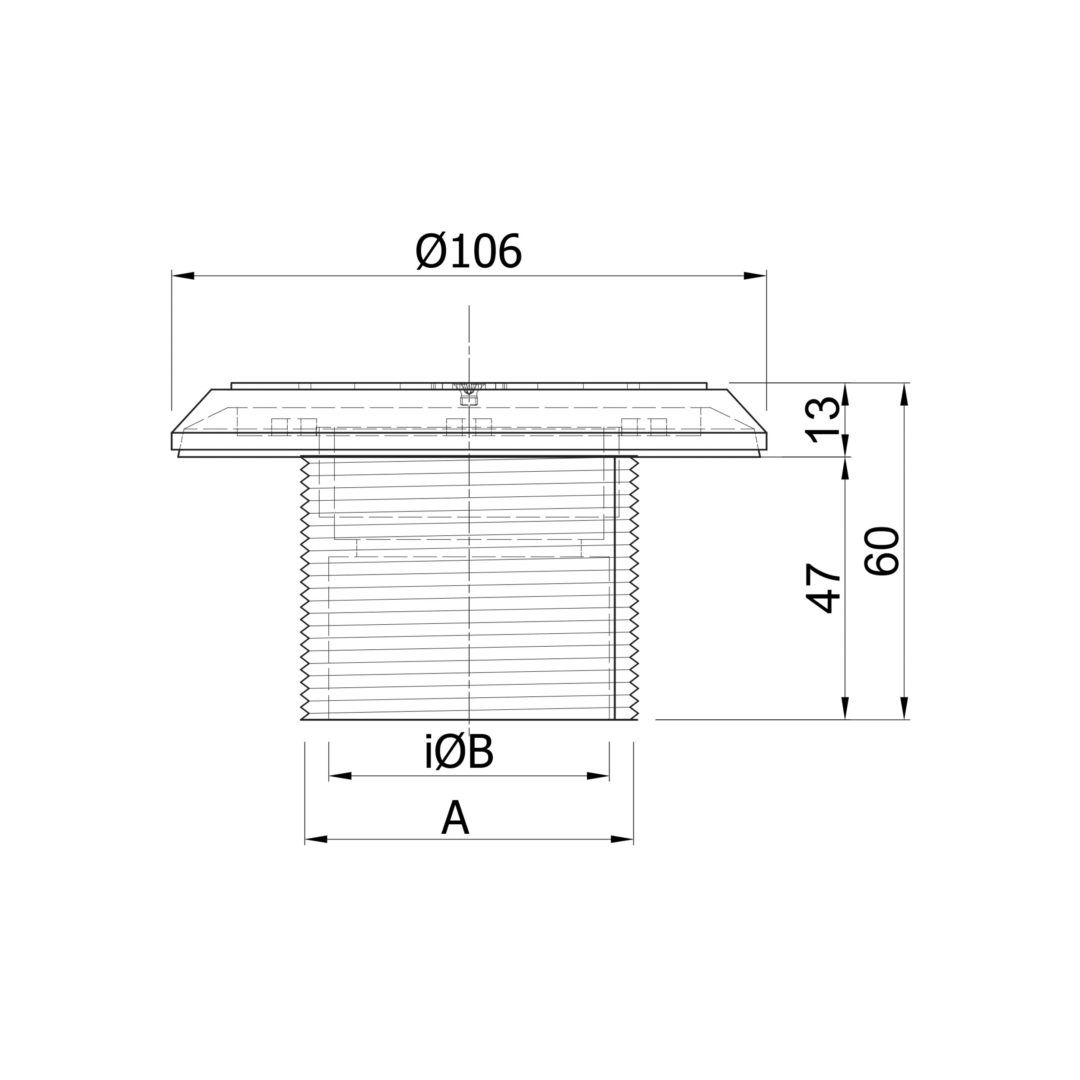

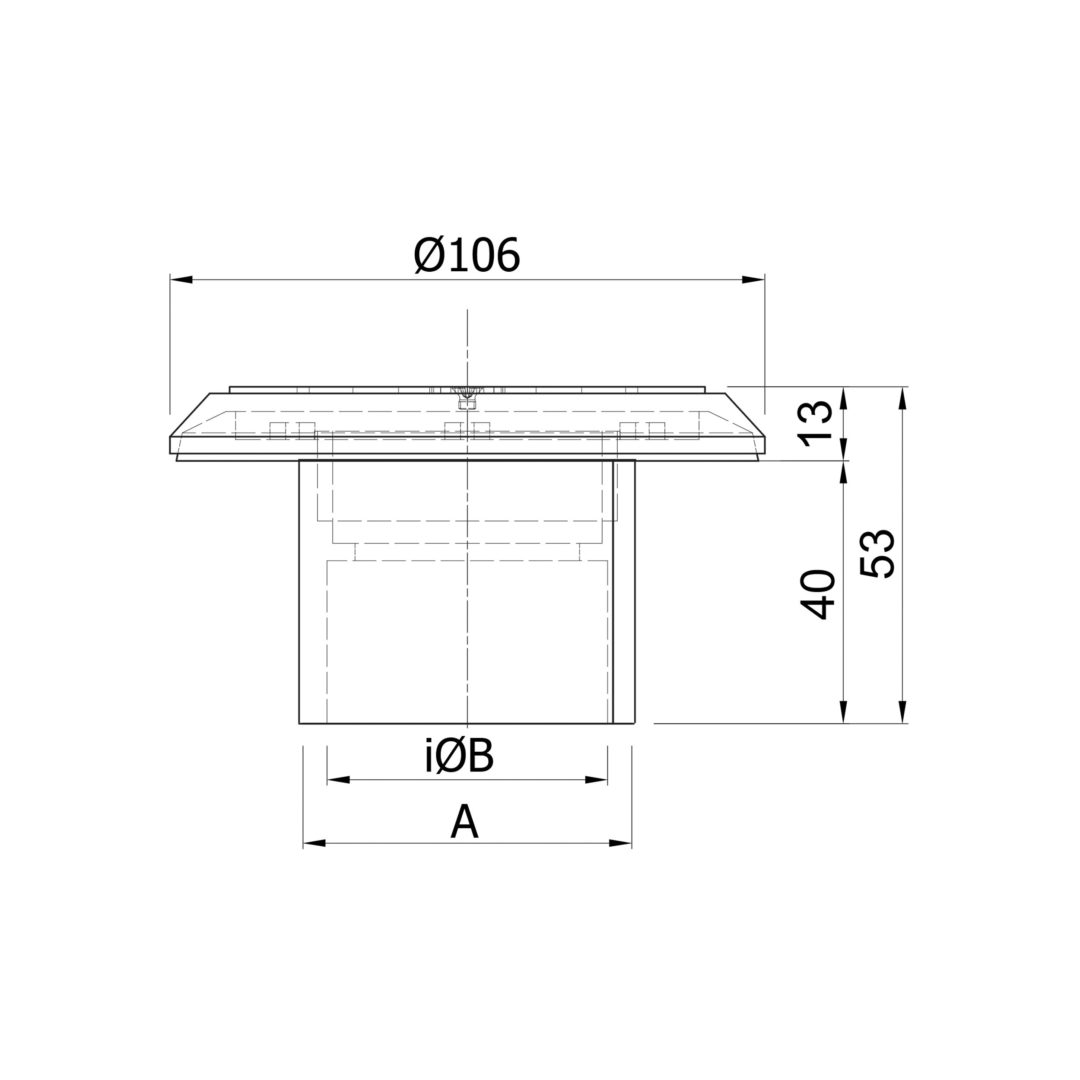

Dimensions & Performances
ZOOM IN
SBI-200
SBI-200
SBI-200
SBI-201, SBI-630
SBI-201, SBI-630
SBI-201, SBI-630
| Model | Connection | A | Β |
|---|---|---|---|
| SBI-200 | 2” thread | 2” | 50mm |
| SBI-630 | 63mm | 56mm | 50mm |
| SBI-201 | 2” slip | 53mm | 50mm |
