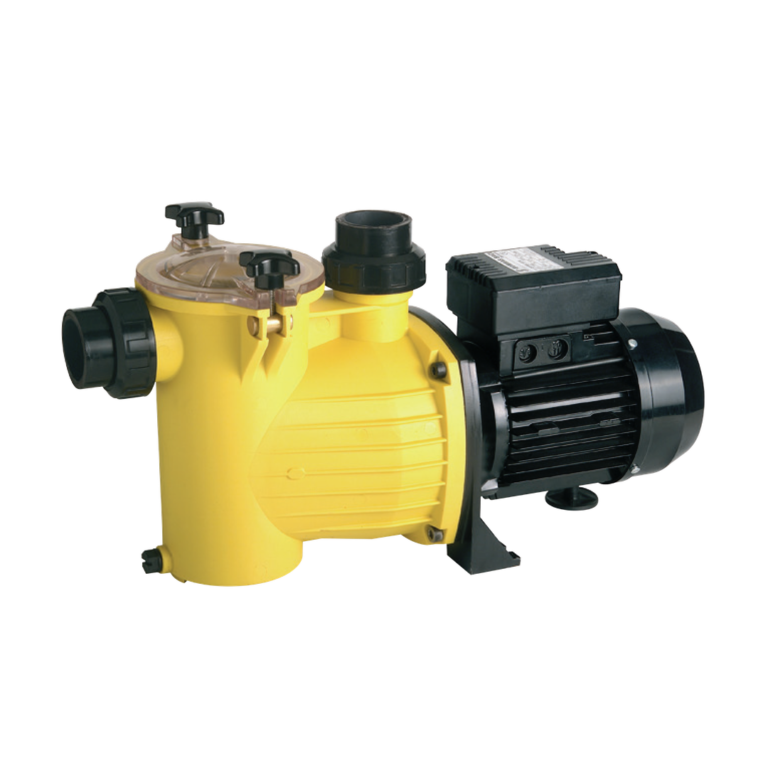

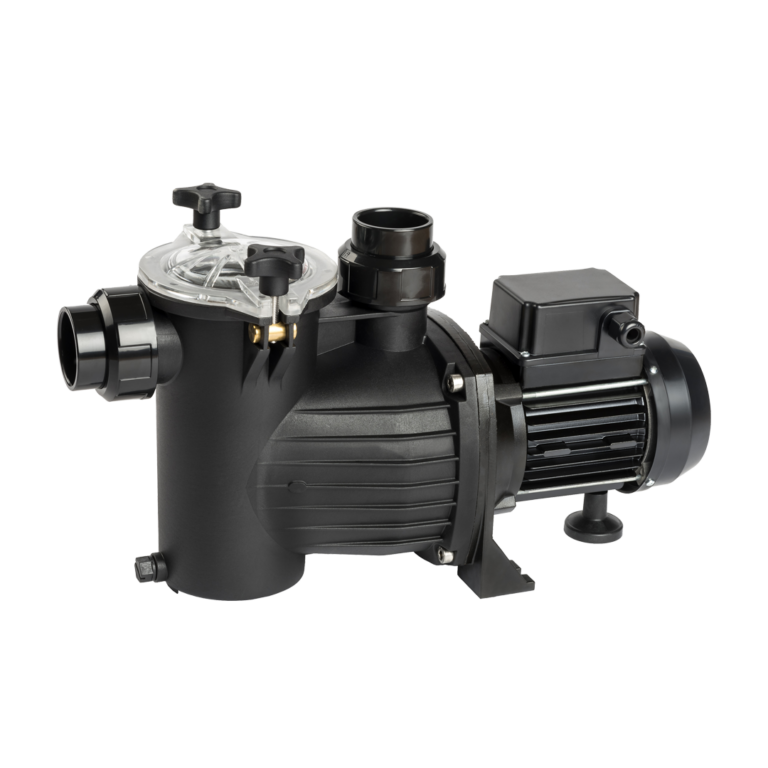

Self-priming pump
MODEL:
ΜP
MANUFACTURER:
Self-priming pump for swimming pools with a large pre-filter, which together with its excellent hydraulic performance, generates a very large filtering capacity.
A filter with a transparent, polycarbonate lid that easily allows inspection of the interior of the pre-filter basket. Large dimensions pre-filter basket.
No possible electrical contact with the water as no part of the motor comes in contact with it.
Specifications
- Pump body, pump body lid and diffuser in polypropylene, resistant to the chemical products in pools and reinforced with fiberglass, guaranteeing excellent duration.
- Noryl impeller. Mechanical seal in carbon-ceramic and stainless steel AISI 316, specially suitable for work with sea water.
- Shaft in stainless steel AISI-316. Noryl impeller. Mechanical seal in stainless steel AISI-316.
- Bolts in AISI 304 Stainless Steel.
- The pumps allows two possible connections:
– Female thread of 1,5”.
– Connection for PVC pipe Ø 50 to glue.
- Electrical asynchronous motor, sealed with external ventilation. Protection IP-55.
- 50Hz (60Hz on request) / 2.850 rpm.
- Class F insulation.
- Motor bearings are greased for life and selected to ensure the long duration and silent work.
- Maximum water temperature: +40ºC.

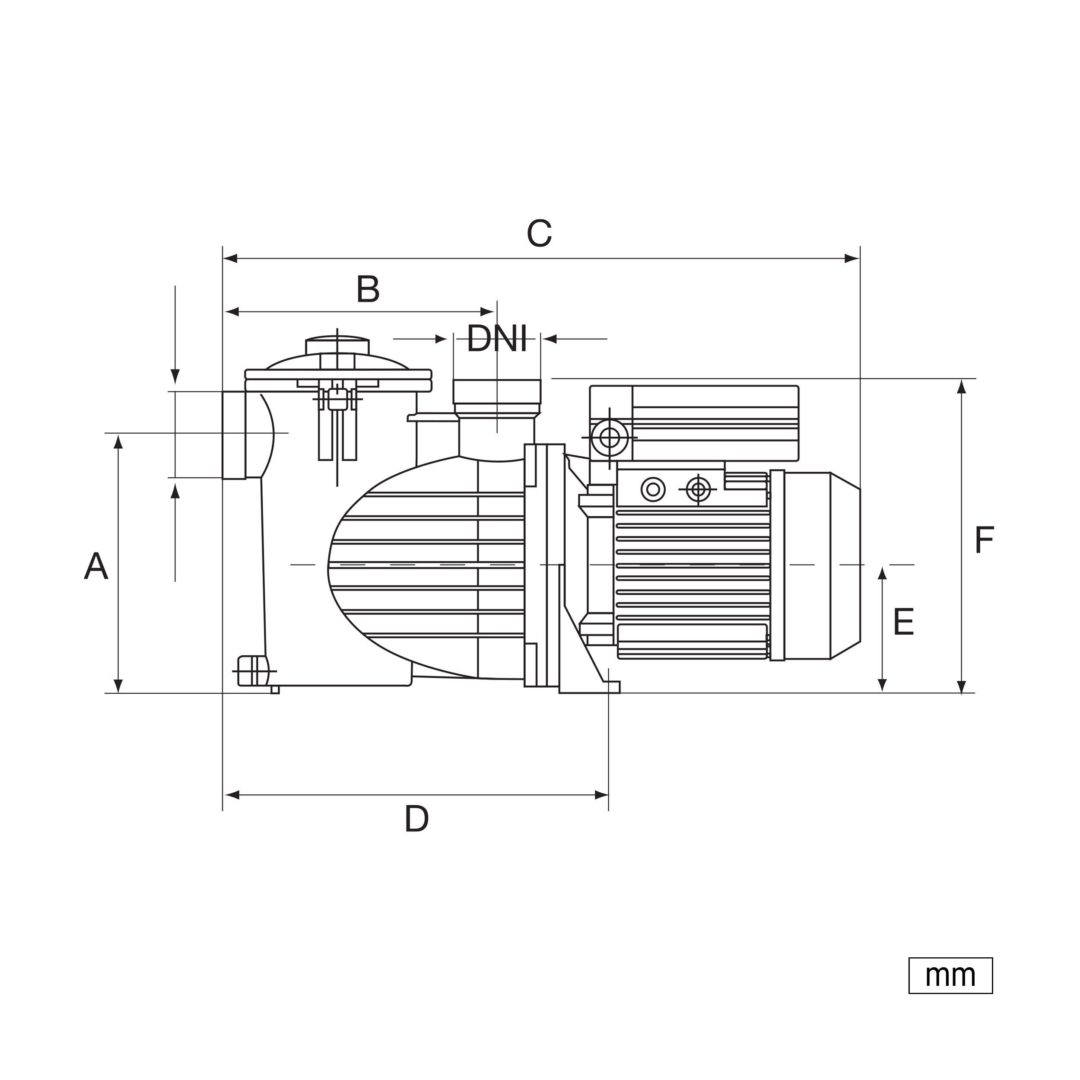

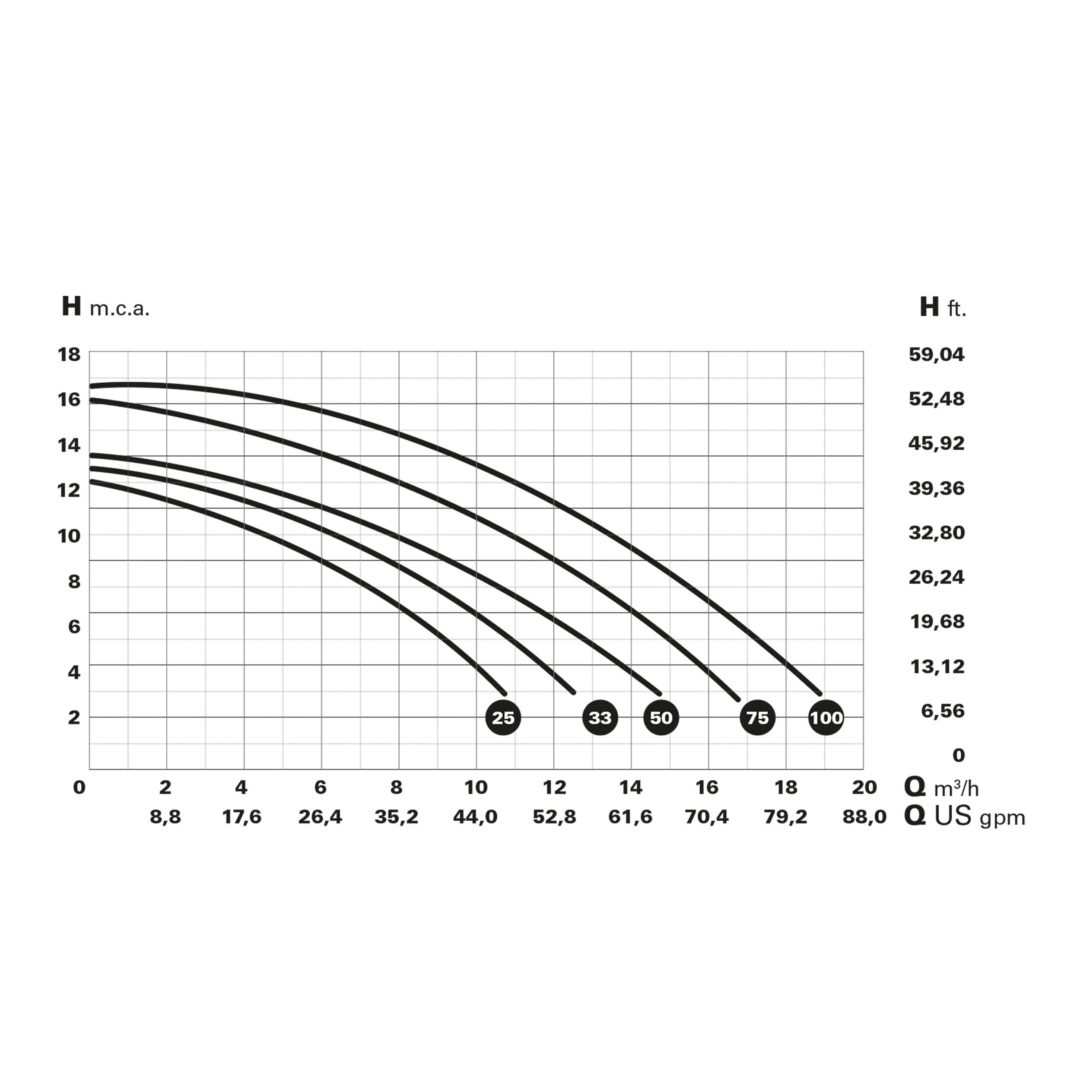

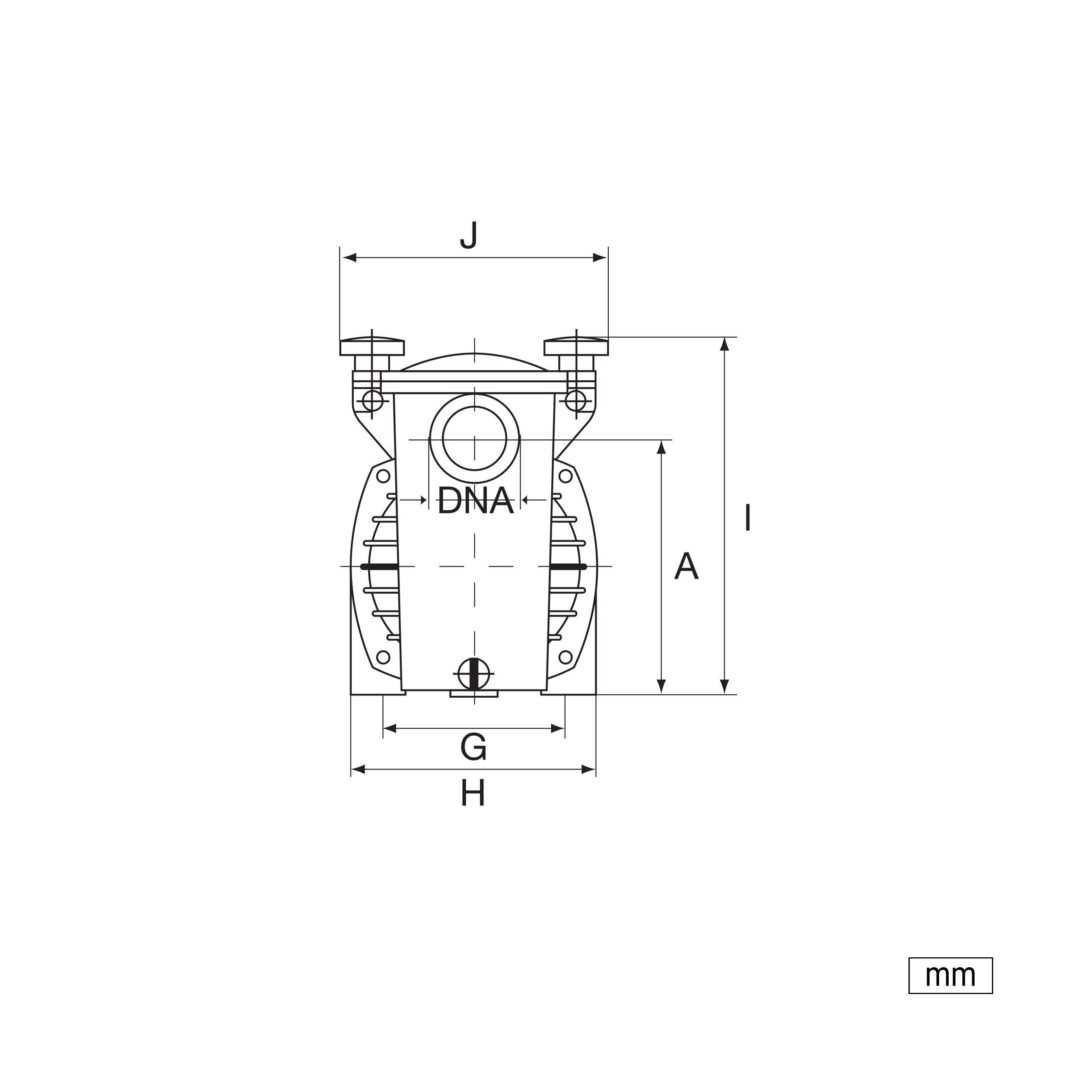

Dimensions & Performances
ZOOM IN

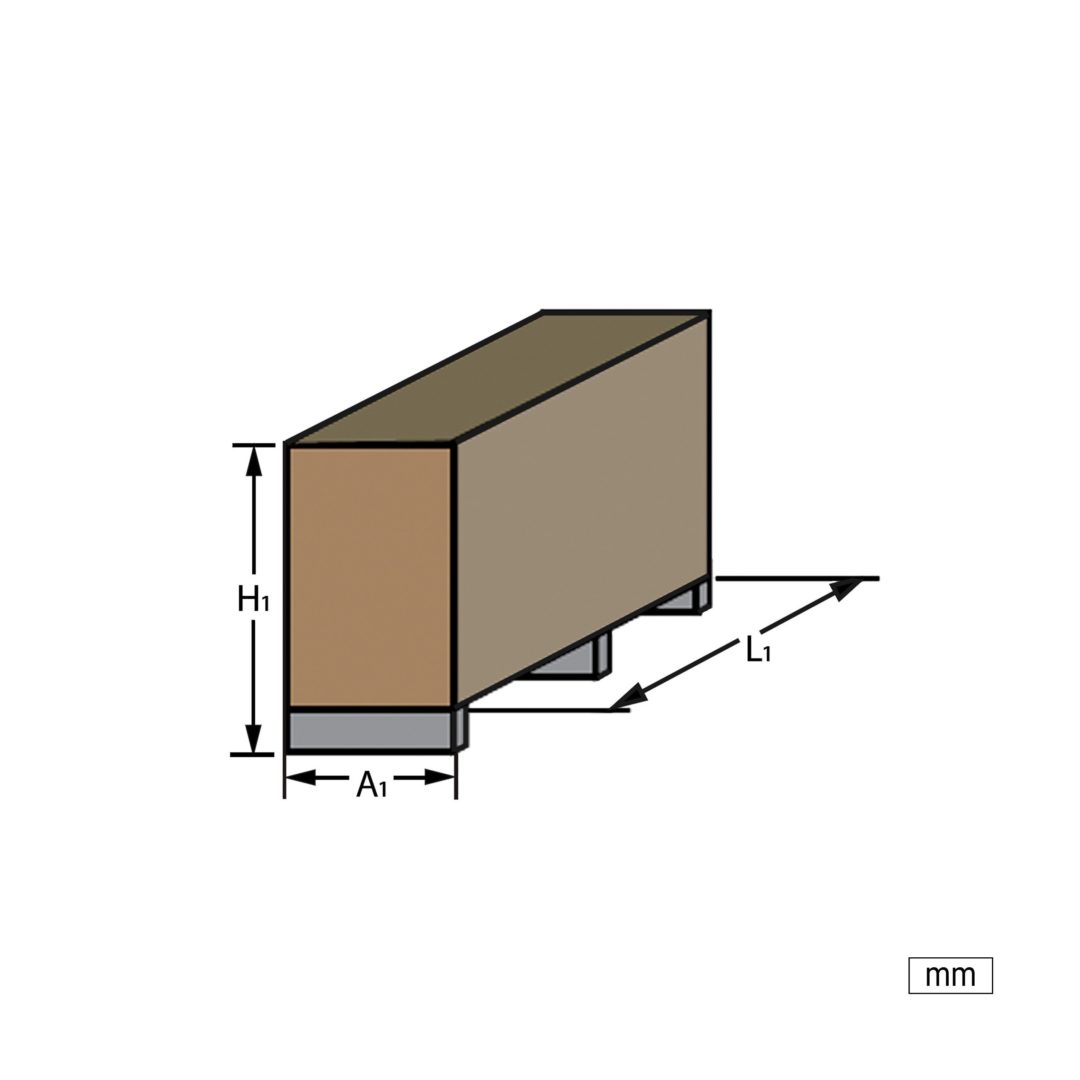

| Model | HP | Α (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | L1 (mm) | A1 (mm) | H1 (mm) | DNA DNI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MP-025 | 0,25 (1-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
| MP-033 | 0,33 (1-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
| MP-050 | 0,50 (1-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
| MP-075 | 0,75 (1-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
| MP-076 | 0,75 (3-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
| MP-100 | 1,00 (1-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
| MP-101 | 1,00 (3-phase) | 191 | 205 | 470 | 285 | 95 | 233 | 140 | 180 | 265 | 197 | 630 | 230 | 360 | 1 ½” |
