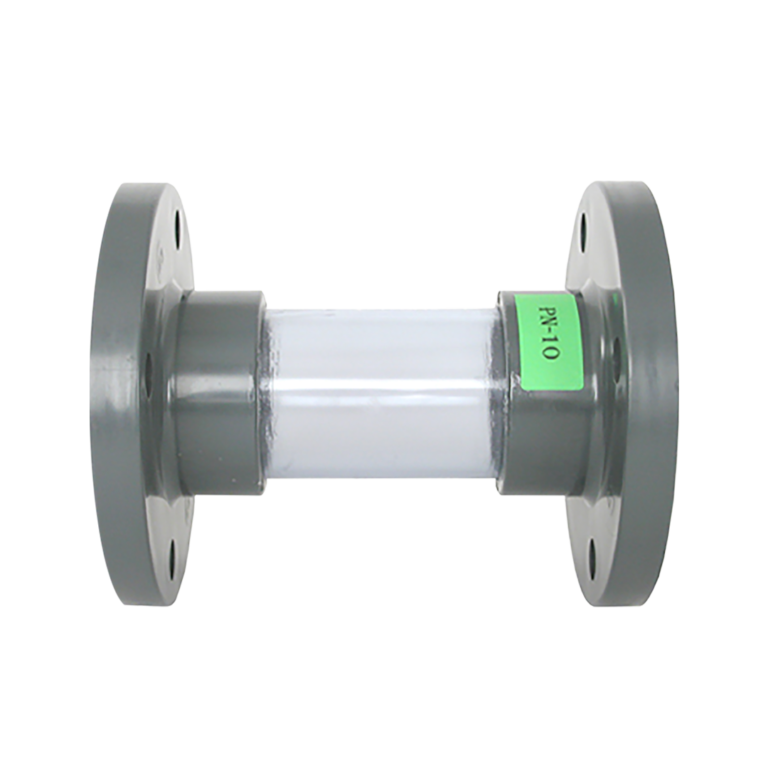

Sight glass with PN-10 socket flanges

MODEL: 7420
MANUFACTURER:
Clear

Material: Unplasticised polyvinyl chloride (PVC-U).

Dimensions: All sizes according to EN 1452.

Hydraulic test: In accordance with UNE-EN 917.

Work Conditions:

  • Cement joint fittings:
    From 16mm to 140mm = PN 16 bar.
    From 160mm to 315mm = PN 10 bar.
  • Threaded fittings:
    All sizes PN 10 bar.

Assembly:

  • The use of PTFE film is recommended for threaded fittings.
  • The use of a Tetrahyrofurane adhesive for solvent cement fittings (CH-Adhesive) is recommended.
Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

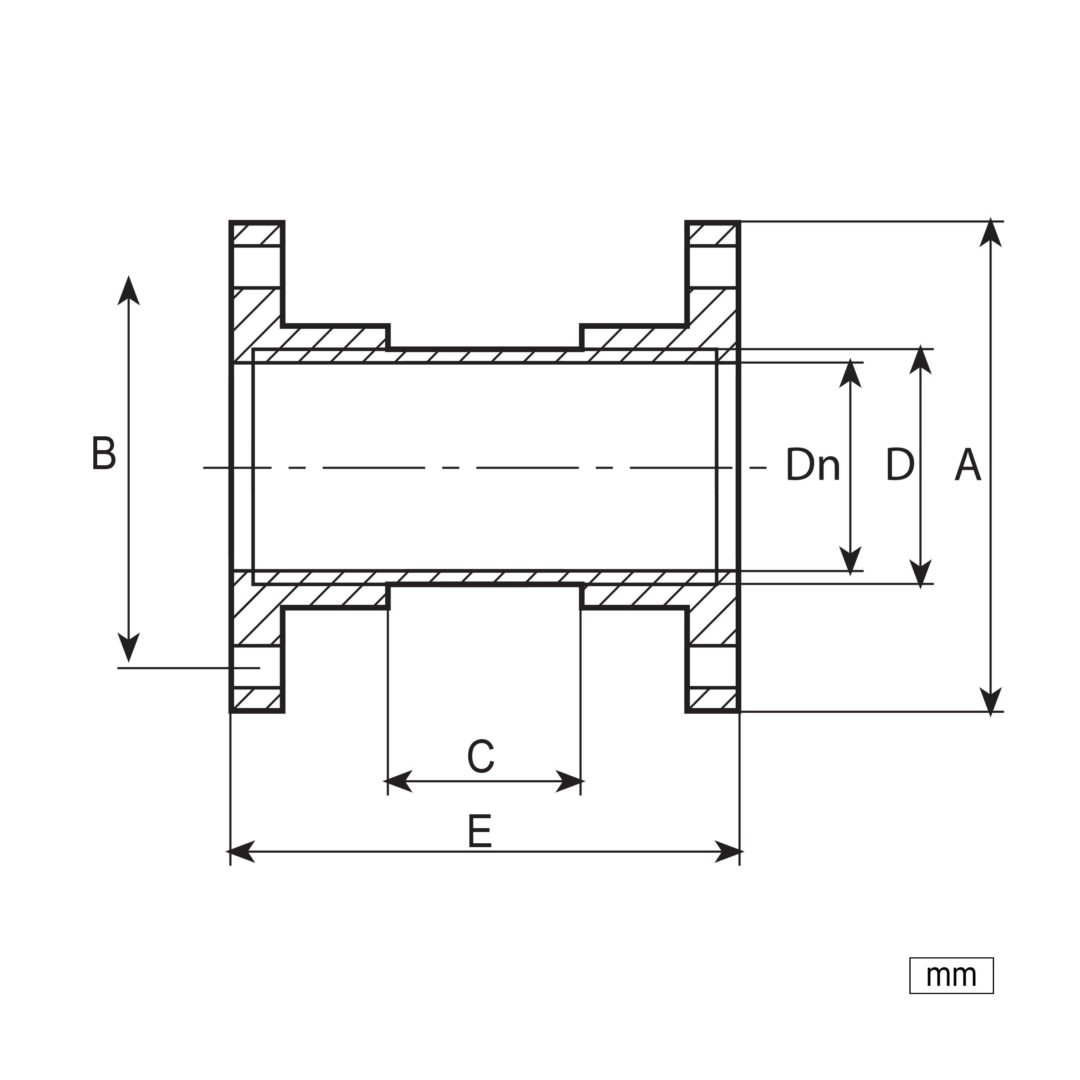

    Dimensions & Performances
    CodeØABCDDNE
    7420075751851451007565220
    7420090902001601009080228
    7420110110220180100110100240
    7420125 (PN 4 Bar)125230190150125110310
    7420140 (PN 4 Bar)140250210150140125346
    7420160 (PN 4 Bar)160285240150160150342
