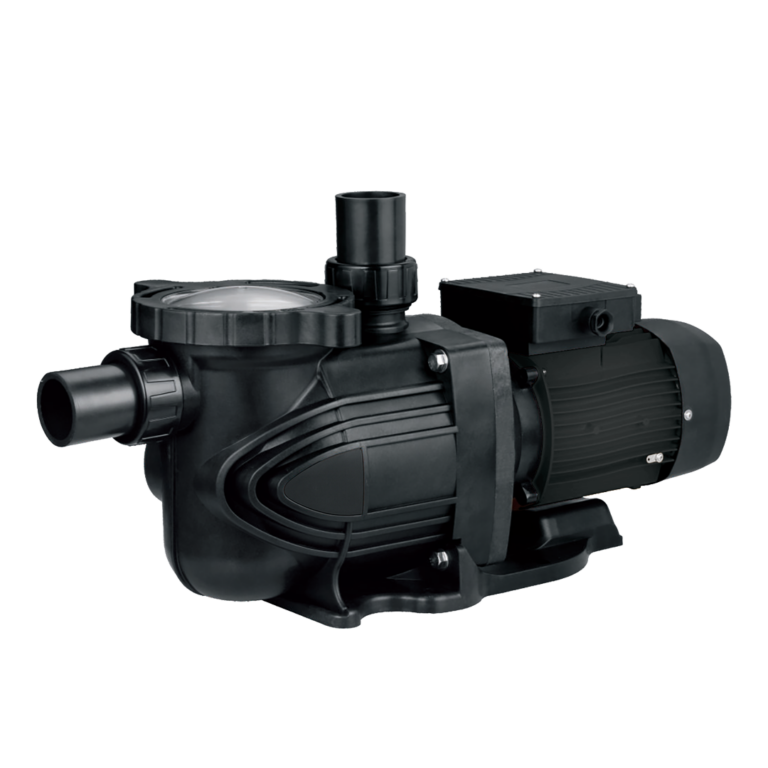

Single-stage centrifugal pool pump

MODEL: PPB50

MANUFACTURER:

Silent centrifugal pump with built-in prefilter, ideal for residential and commercial swimming pools.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

Pump body, base, and diffuser made of glass-fiber reinforced polypropylene.
Impeller and seal mounting in PPO.
Motor shaft in AISI-316 stainless steel.
Mechanical seal (Burgmann) made of graphite and ceramic.
Motor casing in L-2521 aluminium.
Two-pole asynchronous motor.
Single-phase version includes built-in thermal protection.

ZOOM IN

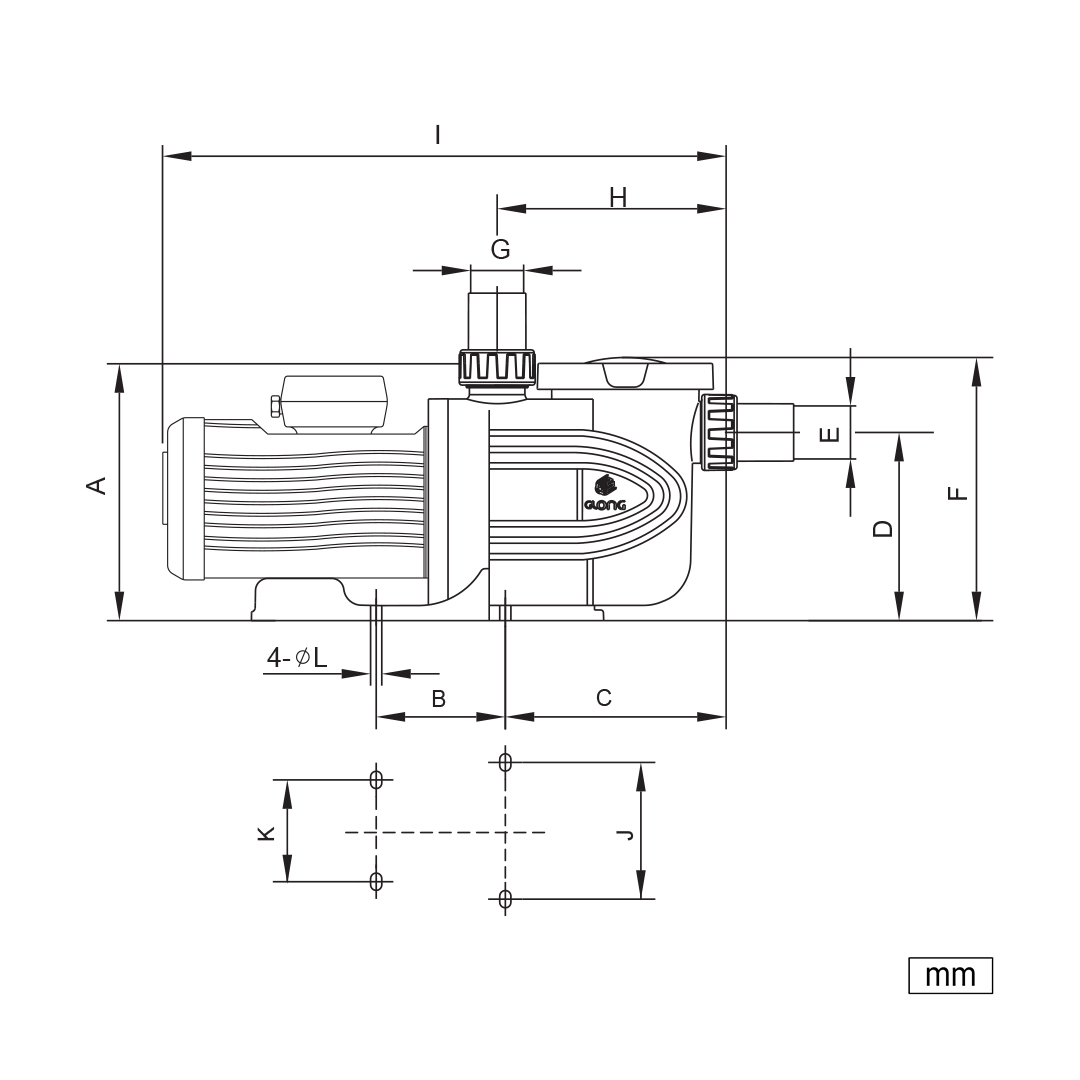

Code	A	B	C	D	E	F	G	H	I	J	K	L
PPB50-050M PPB50-050T	266	134	229	195	Ø 50	273	Ø 50	238	595	190	154	11.5
PPB50-075M PPB50-075T	266	134	229	195	Ø 50	273	Ø 50	238	595	190	154	11.5
PPB50-100M PPB50-100T	266	134	229	195	Ø 50	273	Ø 50	238	615	190	154	11.5
PPB50-150M PPB50-150T	266	134	229	195	Ø 50	273	Ø 50	238	615	190	154	11.5
PPB50-200M PPB50-200T	266	134	229	195	Ø 50	273	Ø 50	238	640	190	154	11.5
PPB50-300M PPB50-300T	266	134	229	195	Ø 50	273	Ø 50	238	640	190	154	11.5
