Ø290mm-Wall-mounting LED pool light
MODEL:
WPLD-1A
MANUFACTURER:
White ABS plastic wall mounting pool light with exceptional chemical resistance and UV protection.
It is equipped with open-type LED boards with either 216 LEDs (in cool white, warm white or blue colour) or with 324 LEDs (in cool or warm white colour). Its face has an overall diameter of 290mm and a faceplate thickness of 40mm. It is designed exclusively for concrete pools and includes special fixing units for easy installation and maintenance.
The fixture can be adjusted on the wall either by a plastic round fixing ring or by a stainless steel rectangular fixing plate.
It is an elegant choice that comes equipped with its own safety glass.
Specifications
- Material: white ABS plastic.
- IP rating: IP68.
- Installation: wall mounting.
- Light colour: cool white, warm white & blue.
- Tempered protection glass.
- 2.5m cable H07RN-F, cable size 2x1mm².
- 1m of flexible conduit hose.
- Faceplate thickness: 40mm.

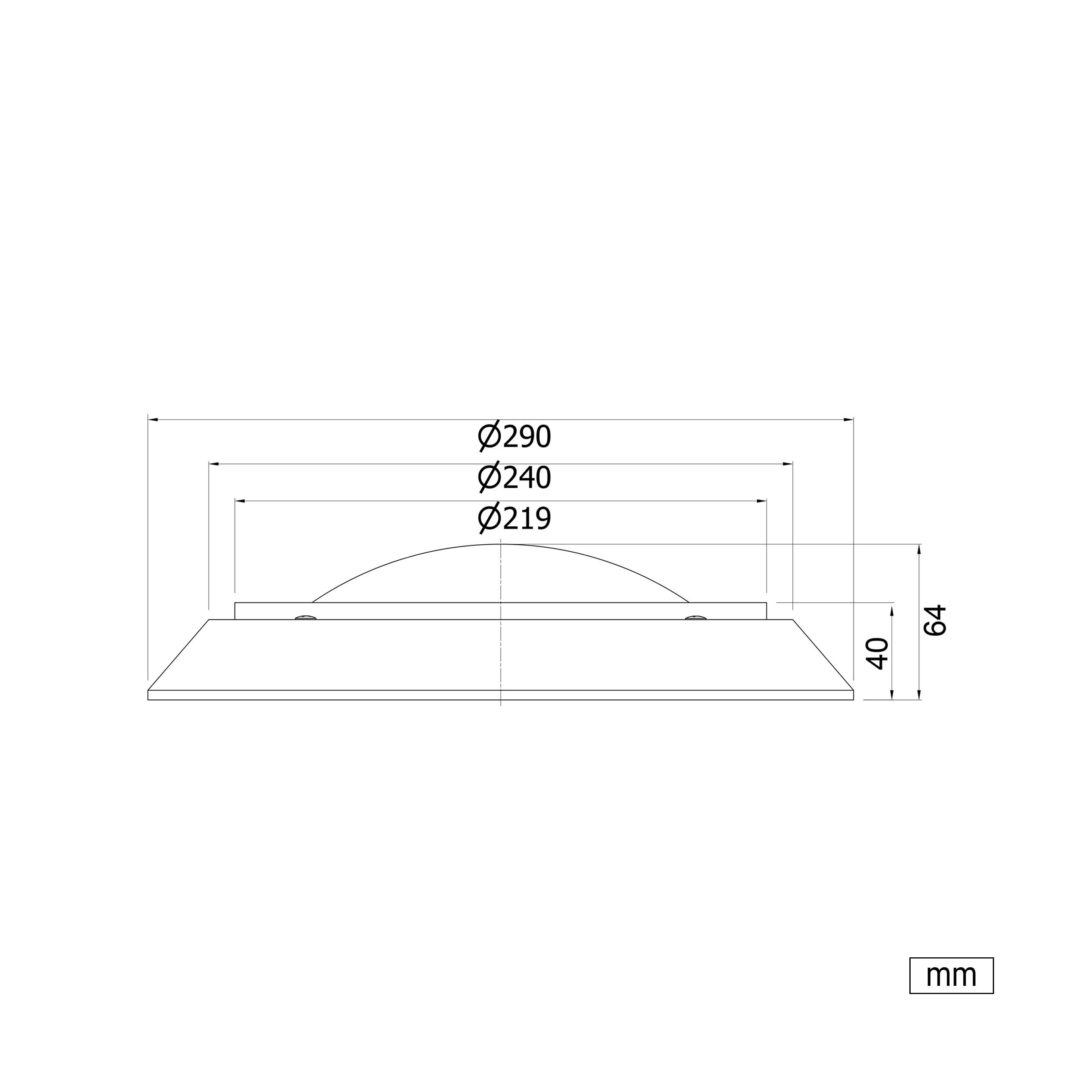

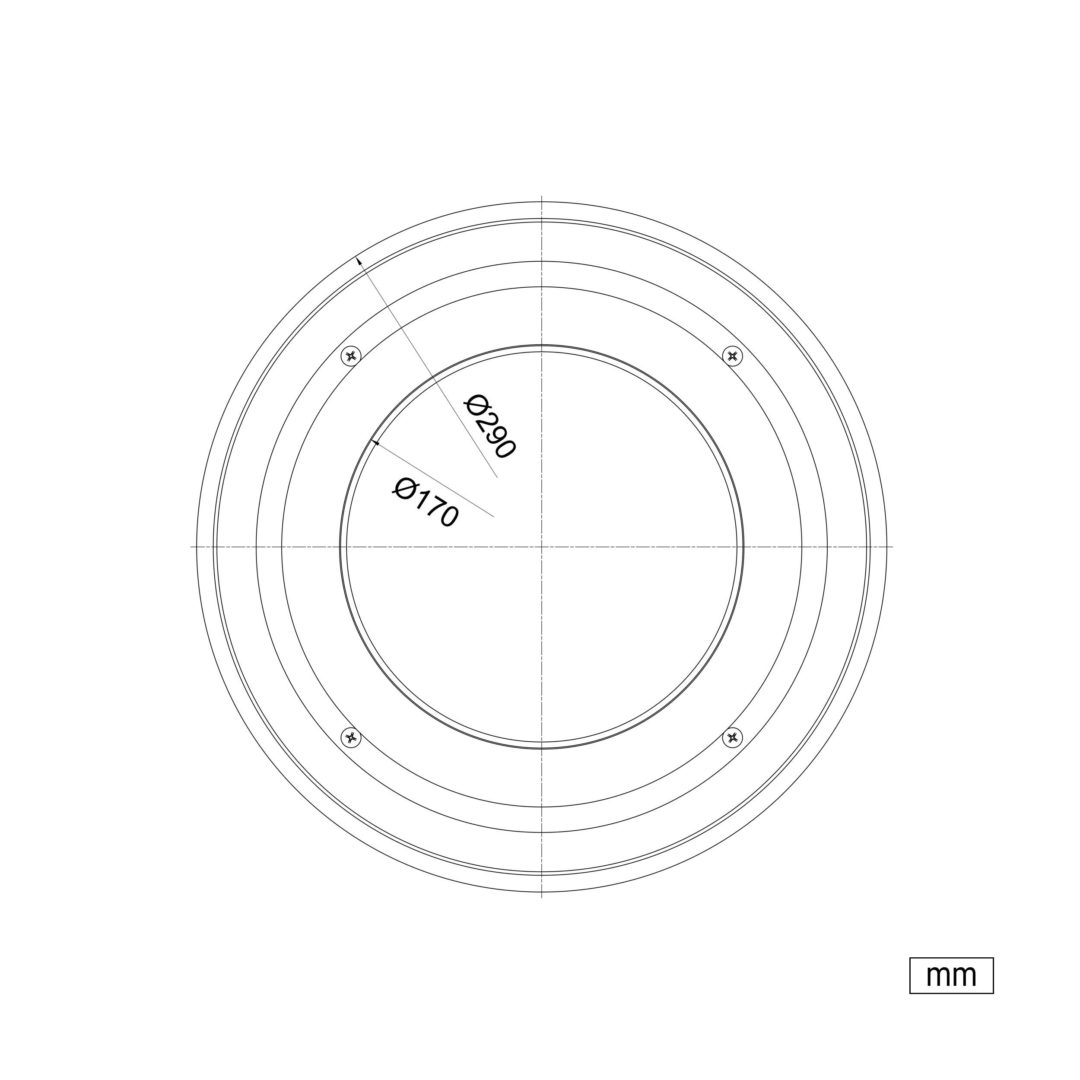

- Dimensions: Ø 290x64mm.
- Underwater installation.
- Installation position: wall.
- Type of pool: concrete.
- UV protection & chemical resistance.
- Easy installation & service.
Dimensions & Performances
