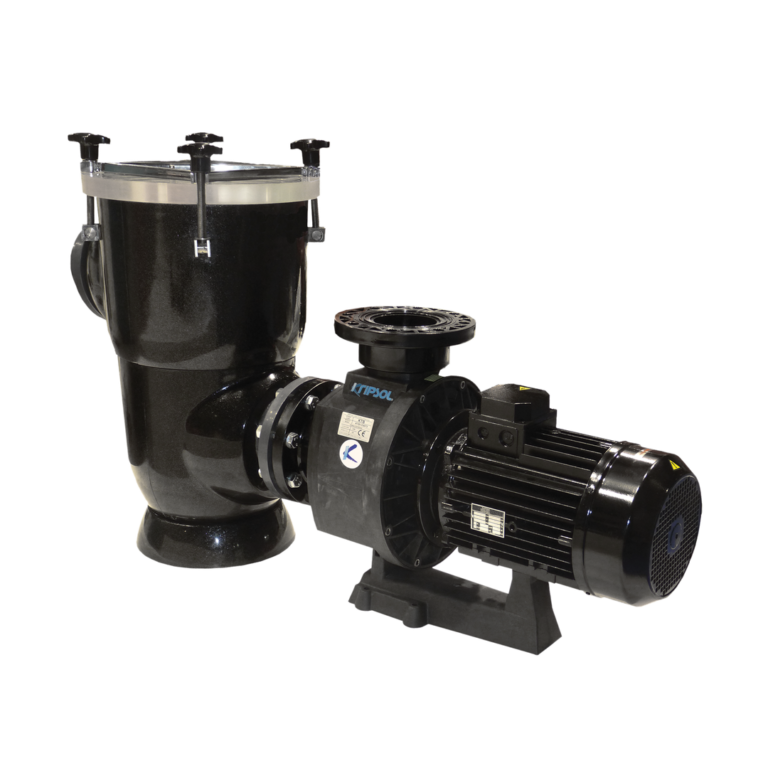

Σύνδεση με το προφίλτρο PPKT
Σύνδεση με το προφίλτρο PPKT
No pre-filter pump for upstream equipment/spas
MODEL:
KRETA/HCP1100
MANUFACTURER:

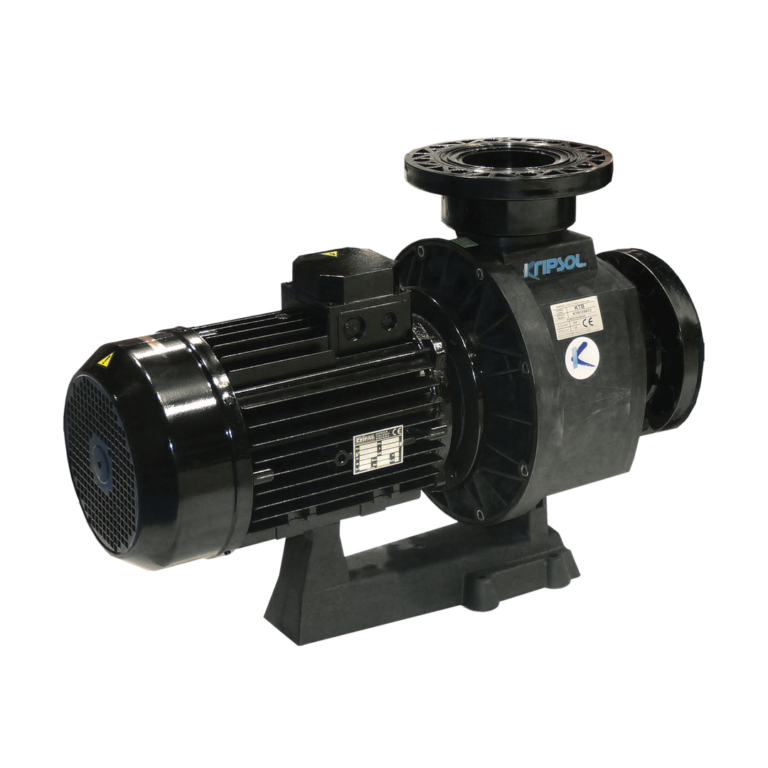

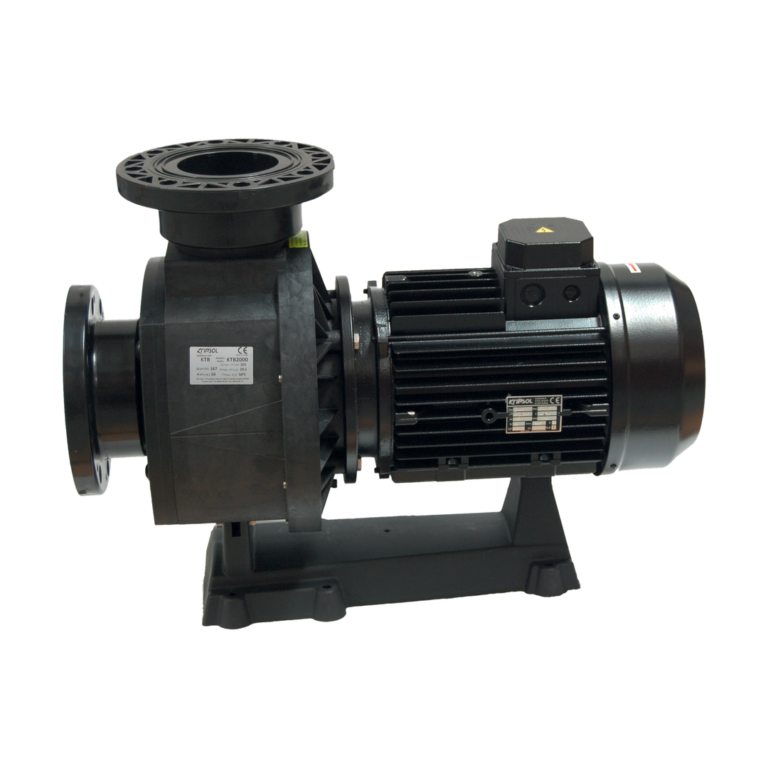

Centrifugal pump made of thermoplastic material.
This pump is suitable to be used for saltwater and seawater.
Usage: upstream equipment, spas.
Specifications
- Hydraulic body, diffuser, impeller and flange in Noryl charged with fibreglass, reinforced to reach 3.5kg/cm² working pressure.
- Turbine made of reinforced Noryl.
- Operates at 50Hz / 2.850rpm, IP55, class F insulation.
- Connection: inlet/outlet 140mm.
- Works with PPKT prefilter.

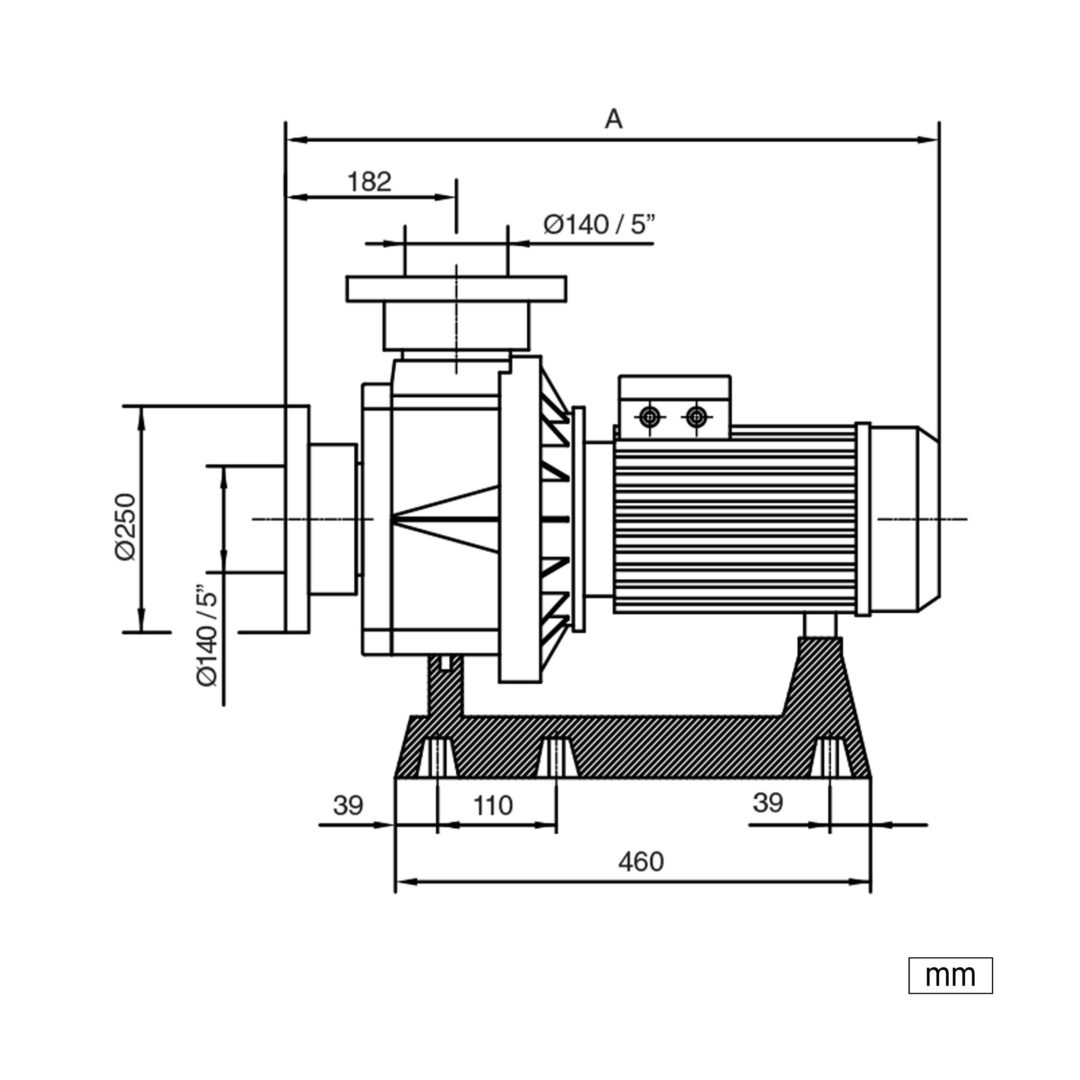

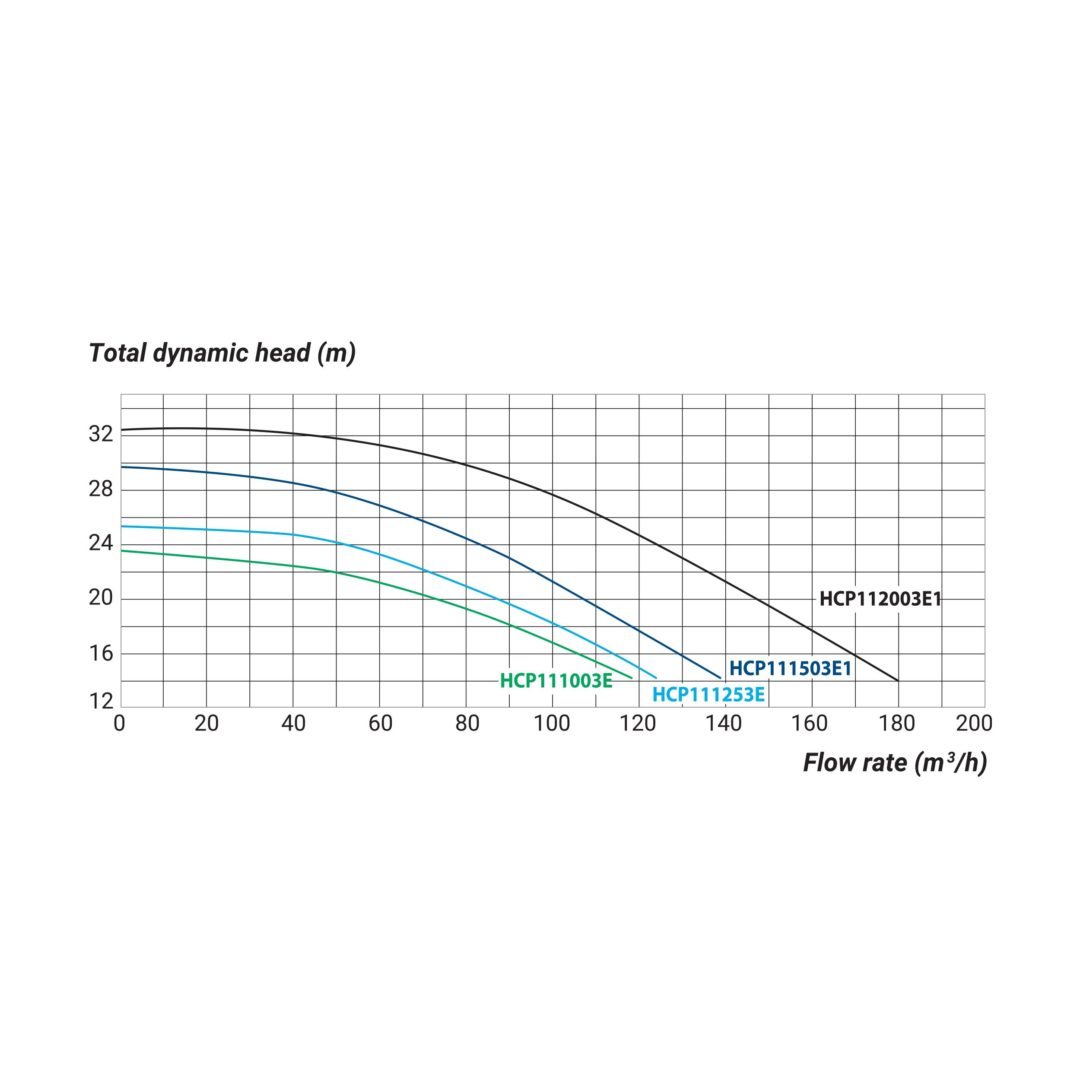

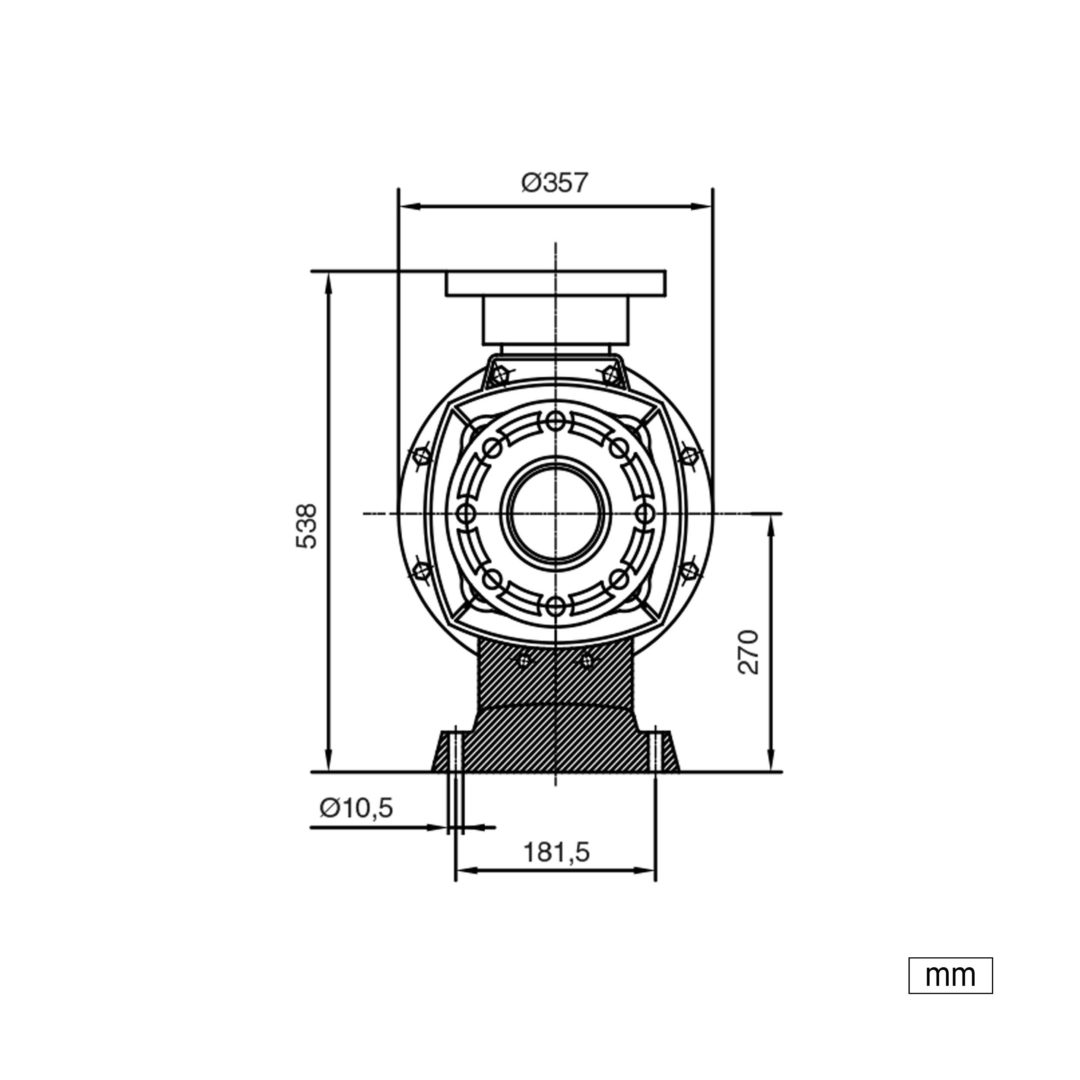

Dimensions & Performances
ZOOM IN
| Model | HP | A (mm) |
|---|---|---|
| KTB1000 T2 (HCP111003E1) | 10,0 | 745 |
| KTB1250 T2 (HCP111253E1) | 12,5 | 745 |
| KTB1500 T2 (HCP111503E1) | 15,0 | 745 |
| KTB2000 T2 (HCP112003E1) | 20,0 | 745 |
