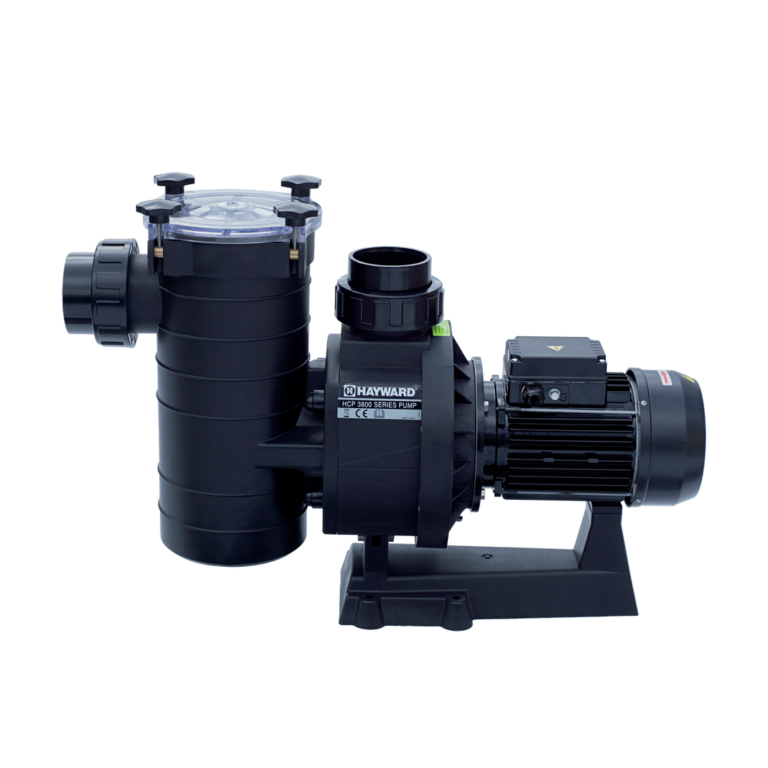

High-performance pump
MODEL:
KAPRI/HCP3800
MANUFACTURER:
This high-performance pump is made of glass-fibre reinforced thermoplastics. Lightweight and easy to install.
Usage: large pools, spas, water features.
Specifications
- Turbine made of reinforced Noryl.
- High-performance TEFC motor.
- Strainer with transparent cover for easy maintenance.
- Elevated base to ensure proper motor ventilation.
- Operates at 50Hz / 2.850rpm, IP55, class F insulation.
- This pump is suitable to be used for saltwater and seawater.

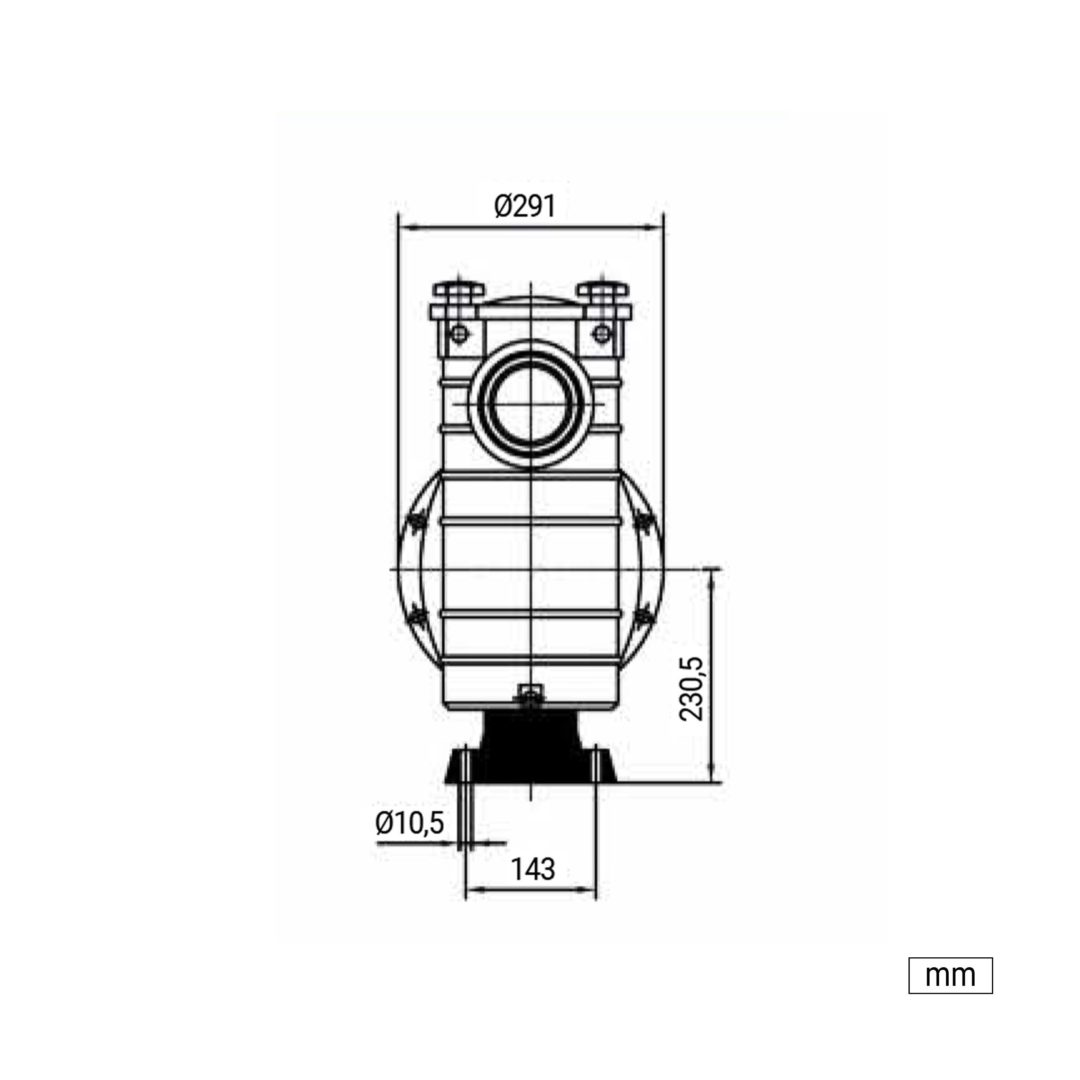

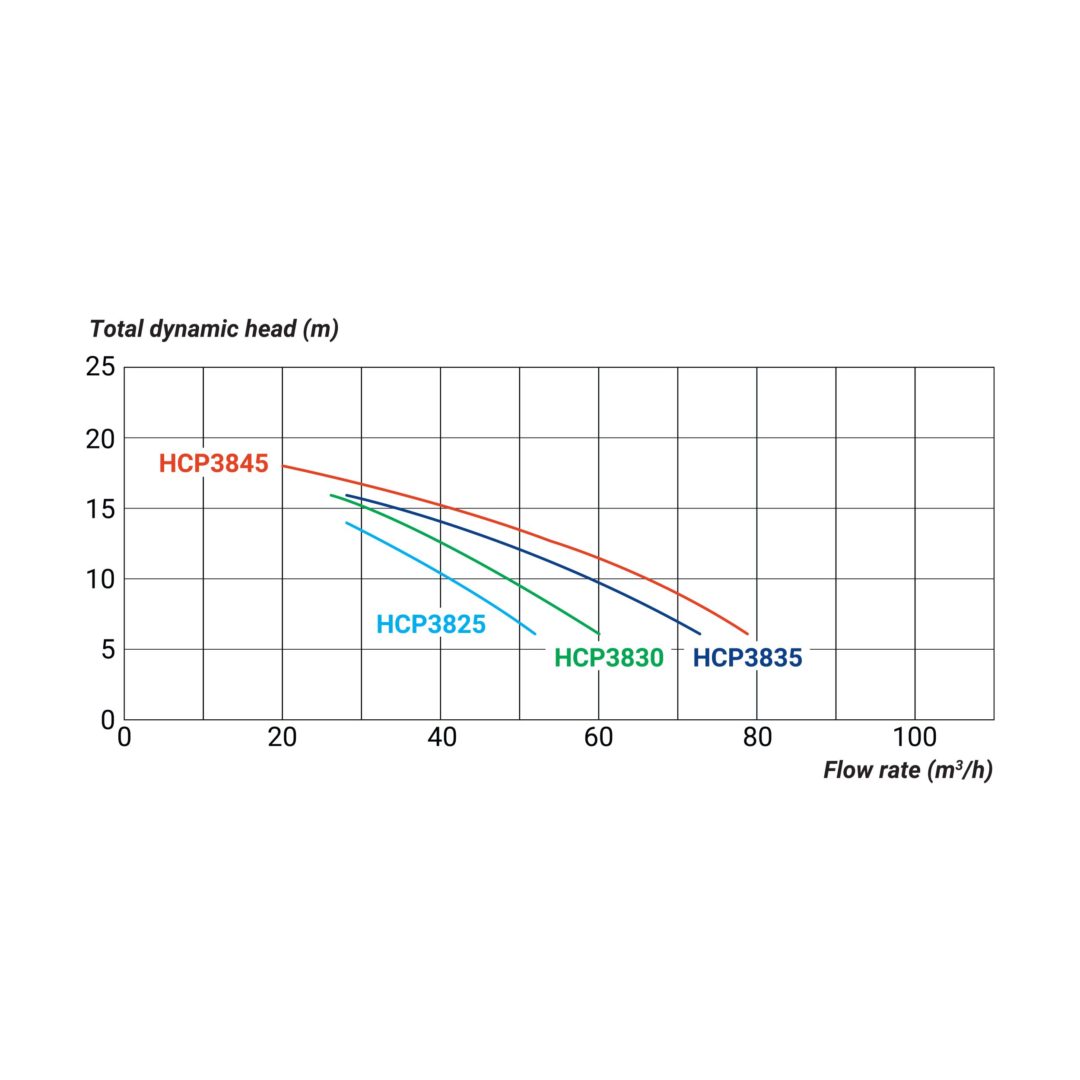

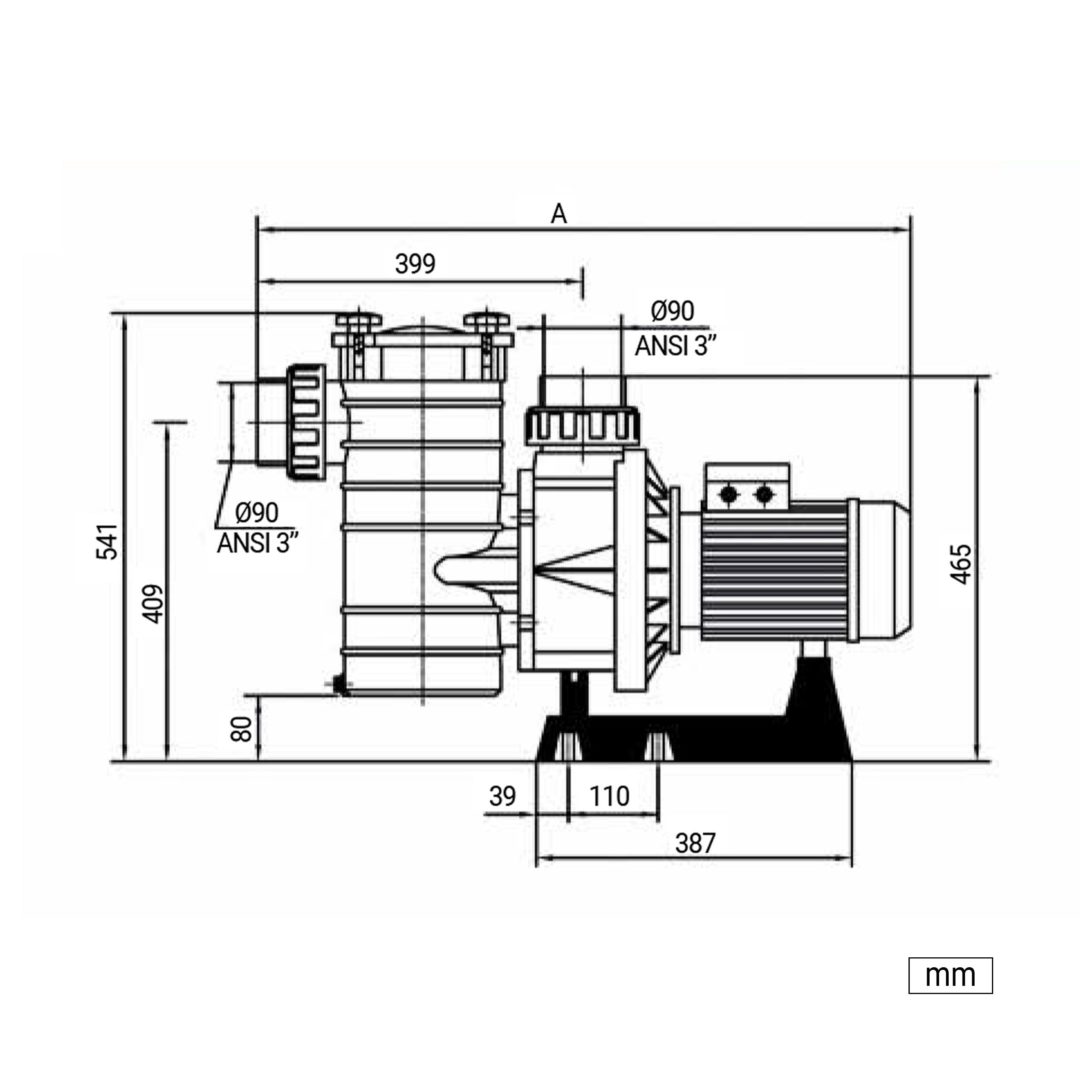

Dimensions & Performances
ZOOM IN
| Model | HP | A (mm) |
|---|---|---|
| KAP250 M (HCP38251E) | 2,50 (1 phase) | 760 |
| KAP250 T1 IE3 (HCP38253E1) | 2,50 (3 phase) | 760 |
| KAP300 M (HCP38301E) | 3,00 (1 phase) | 760 |
| KAP300 T1 IE3 (HCP38303E1) | 3,00 (3 phase) | 760 |
| KAP350 T1 IE3 (HCP38353E1) | 3,50 (3 phase) | 801 |
| KAP450 T1 IE3 (HCP38453E1) | 4,50 (3 phase) | 801 |
| KAP550 T1 IE3 (HCP38553E1) | 5,50 (3 phase) | 815 |
