Specifications
- Turbine made of reinforced Noryl.
- Thermoset plastic hydraulic body.
- Operates at 50Hz / 2.850rpm, IP55, class F insulation.
- This pump is suitable to be used for saltwater and seawater.

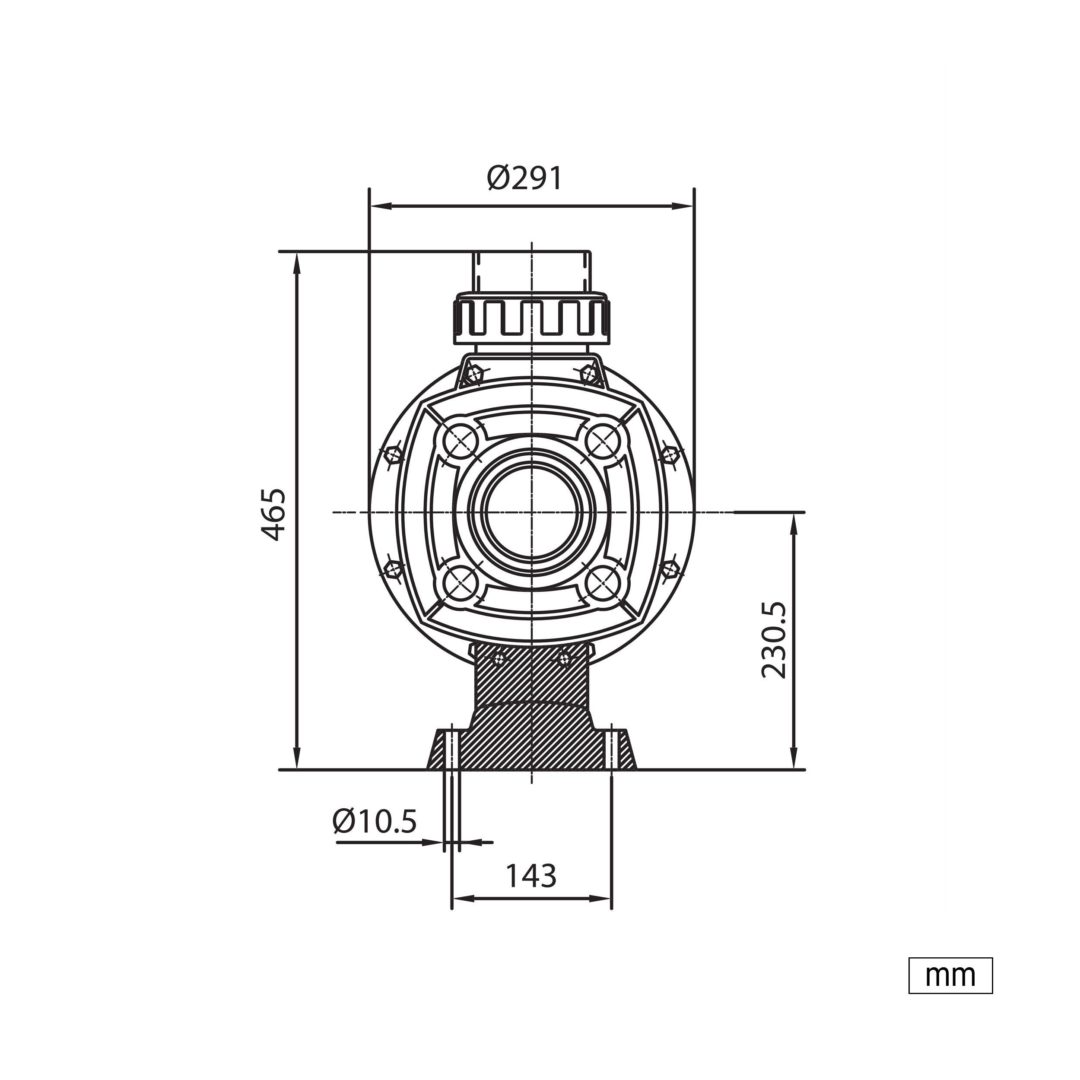

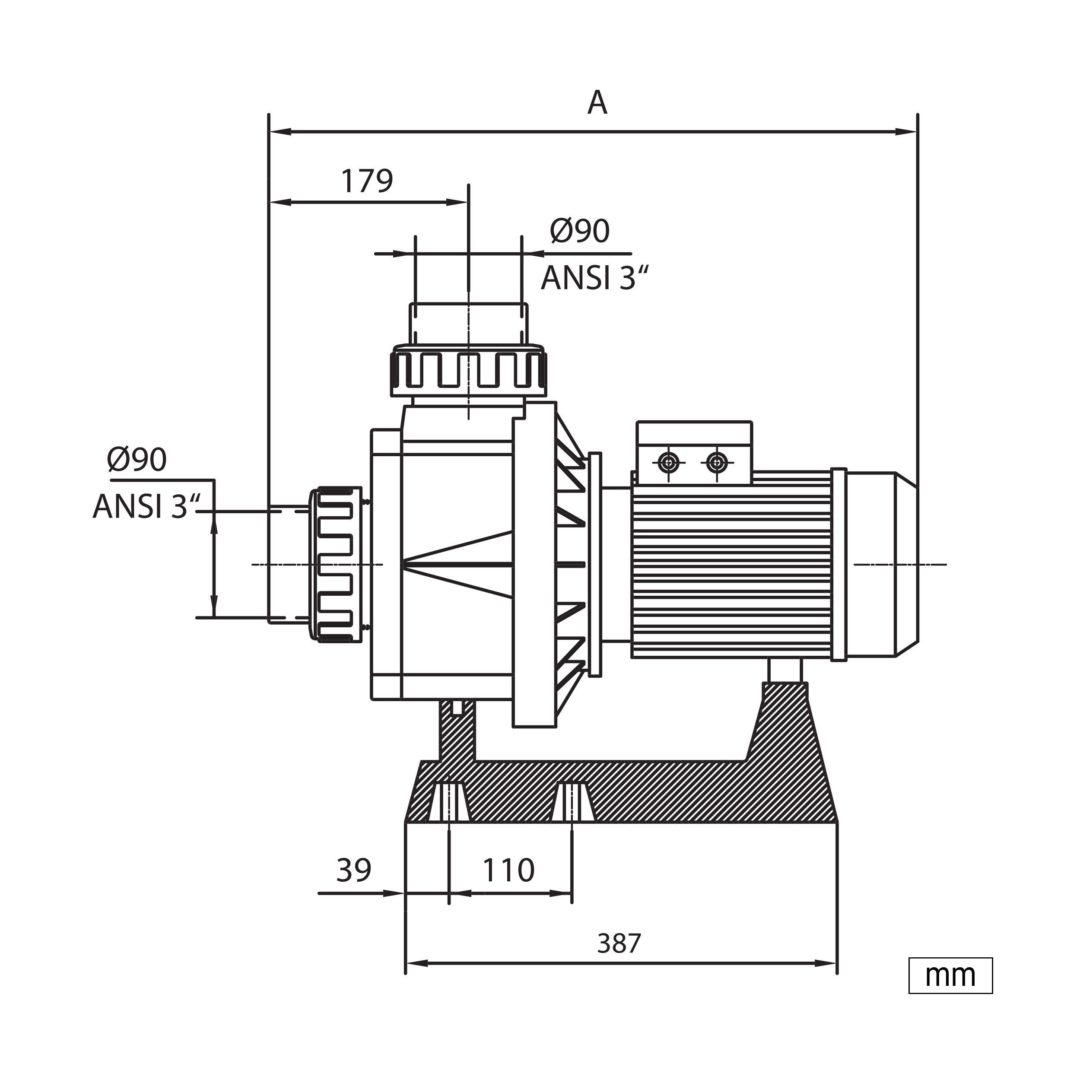

Dimensions & Performances
ZOOM IN
| Model | HP | A (mm) |
|---|---|---|
| KA250 M (HCP10251E) | 2,50 (1-phase) | 581 |
| KA250 T1 IE3 (HCP10253E1) | 2,50 (3-phase) | 581 |
| KA300 M (HCP10301E) | 3,00 (1-phase) | 581 |
| KA300 T1 IE3 (HCP10303E1) | 3,00 (3-phase) | 581 |
| KA350 T1 IE3 (HCP10353E1) | 3,50 (1-phase) | 581 |
| KA450 T1 IE3 (HCP10453E1) | 4,50 (1-phase) | 581 |
| KA550 T1 IE3 (HCP10553E1) | 5,50 (1-phase) | 595 |
| KA550 T2 (011141560212) | 5,50 (3-phase) | 595 |
