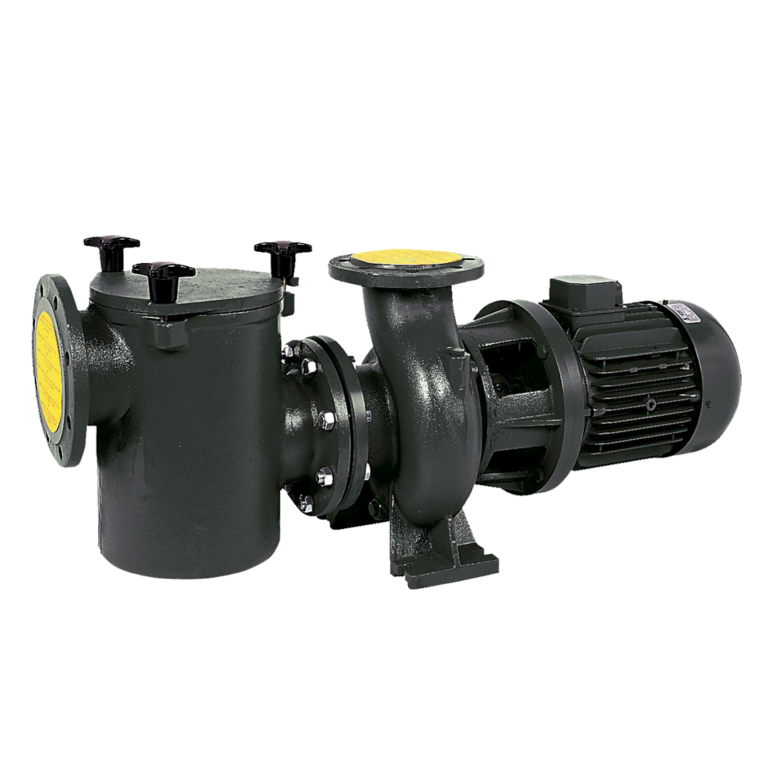

Cast iron centrifugal pump, 2.850rpm
MODEL:
CI
MANUFACTURER:
A large volume centrifugal pump, to which a pre-filter has been applied in the inlet, makes these the ideal pumps for large filtering units.
On request, the impeller may be in bronze and the mechanical seal in silicium carbide or tungsten carbon.
Specifications
- Pump body, pre-filter coupling and impeller in cast iron.
- Shaft and pre-filter basket in AISI-316 stainless steel.
- Mechanical seal in carbon-ceramic.
- Standard asynchronous motor closed with external ventilation.
- Its standard construction allows it to be replaced with another standard motor at any time and in any place.
- Protection IP-55, 50-60Hz / 2.850rpm.

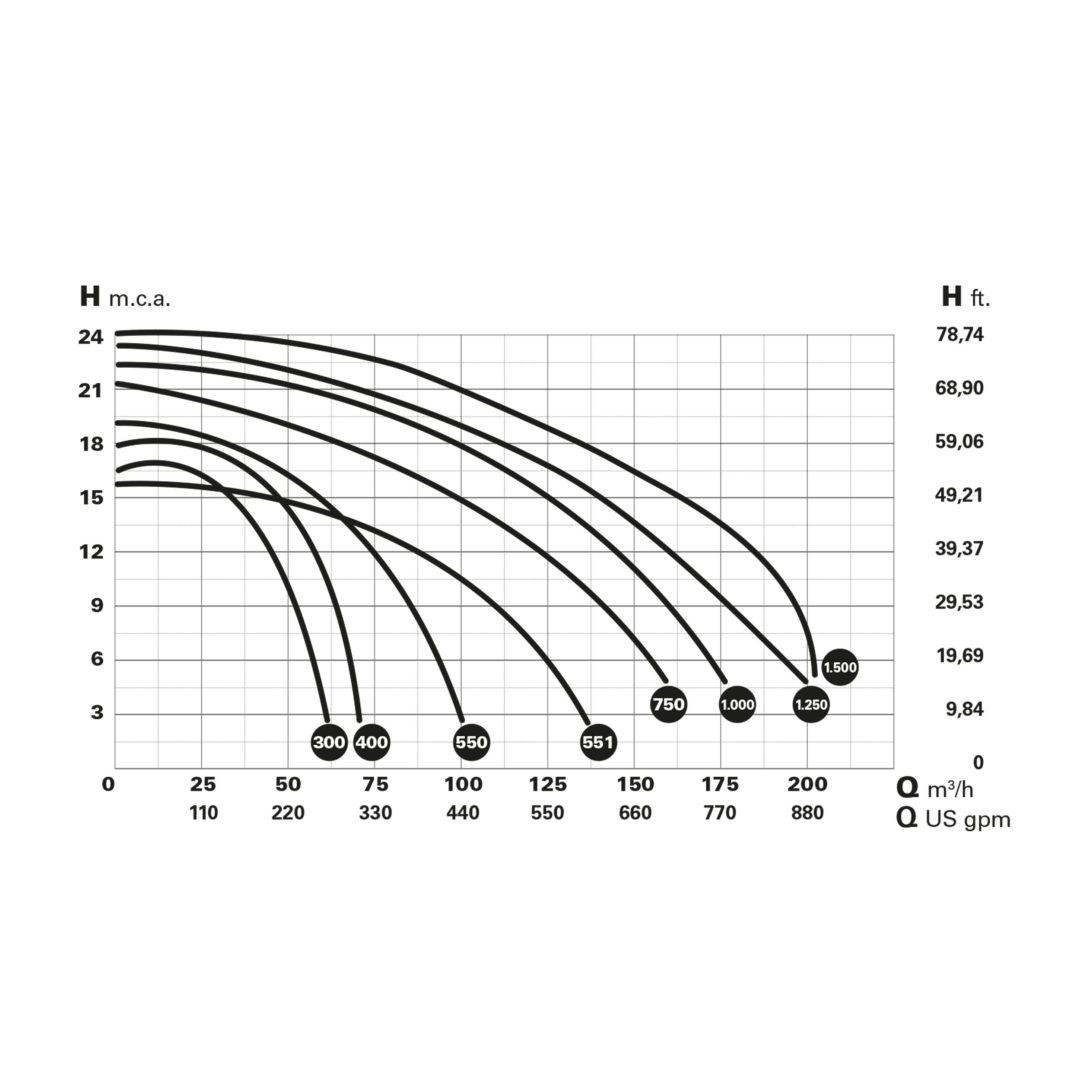

Dimensions & Performances
ZOOM IN
| Model | HP | Α (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | J (mm) | Ø DNA | DA | PA | NºT | Ø T | Ø DNI | DI | PI |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CI-300-IE3 | 3,0 | 465 | 880 | 425 | 80 | 605 | 410 | 275 | 200 | 320 | 250 | 80 | 200 | 160 | 4 | 18 | 80 | 200 | 160 |
| CI-400-IE3 | 4,0 | 465 | 910 | 425 | 80 | 605 | 410 | 275 | 200 | 320 | 250 | 80 | 200 | 160 | 4 | 18 | 80 | 200 | 160 |
| CI-550-IE3 | 5,5 | 500 | 985 | 455 | 105 | 635 | 435 | 280 | 215 | 330 | 280 | 125 | 250 | 210 | 8 | 18 | 100 | 220 | 180 |
| CI-551-IE3 | 5,5 | 500 | 985 | 455 | 105 | 635 | 435 | 280 | 215 | 330 | 280 | 125 | 250 | 210 | 8 | 18 | 100 | 220 | 180 |
| CI-750-IE3 | 7,5 | 500 | 1050 | 455 | 105 | 675 | 435 | 280 | 215 | 330 | 280 | 125 | 250 | 210 | 8 | 18 | 100 | 220 | 180 |
| CI-1000-IE3 | 10,0 | 525 | 1095 | 470 | 120 | 725 | 465 | 325 | 275 | 345 | 330 | 125 | 250 | 210 | 8 | 18 | 100 | 220 | 180 |
| CI-1250-IE3 | 12,5 | 525 | 1130 | 470 | 120 | 725 | 465 | 325 | 275 | 345 | 330 | 125 | 250 | 210 | 8 | 18 | 100 | 220 | 180 |
| CI-1500-IE3 | 15,0 | 525 | 1130 | 470 | 120 | 725 | 465 | 325 | 275 | 345 | 330 | 125 | 250 | 210 | 8 | 18 | 100 | 220 | 180 |
