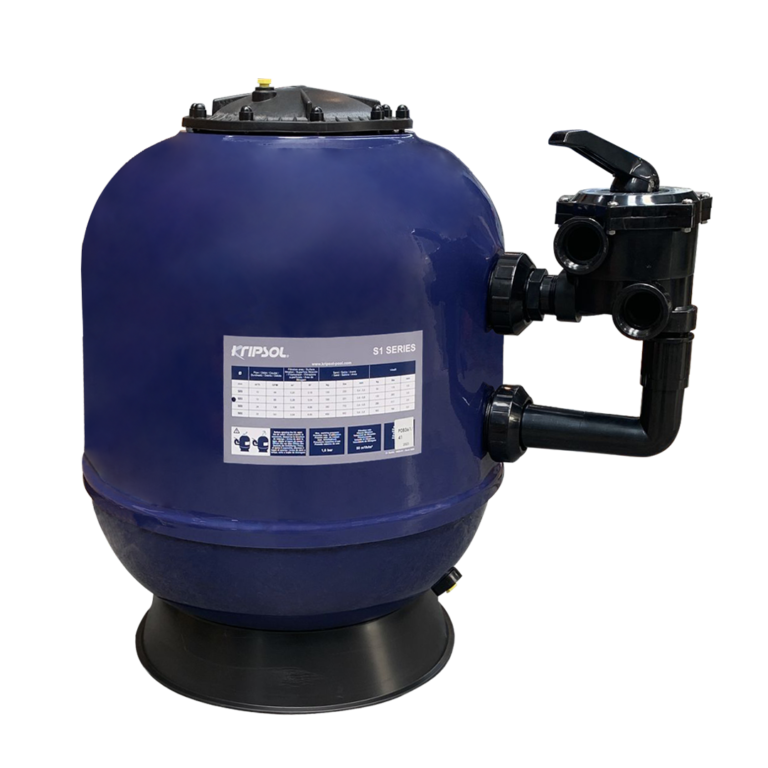

Fiberglass sand filter
MODEL:
S1
MANUFACTURER:
New Polyester filter: Tank made of Polyester strengthened with glass fibre for even greater resistance.
4 models available for 10 to 32m³/h, for all types of pools and treatments.
Optimized hydraulics: laterals double layer on S1-800 and S1-900 filters for a reduced headloss.
Perfect stability thanks to its base.
For residential pools up to 189m³.
Specifications
- Operating pressure: 0.5–1.5kg/cm².
- Max pressure: 1.6kg/cm².
- Testing pressure: 3.5 kg/cm².
- Max water temperature: 50°C.
- Filtration speed: 50m³/h/m².
- Filtering capacity: 40–50 microns.
- Connection: 1½” (Ø 500mm – Ø 600mm) / 2″ (Ø 800mm – Ø 900mm).
- Granulometry of filter media: 0.4–0.8mm.
- Side multiport valve and pressure gauge: Included.

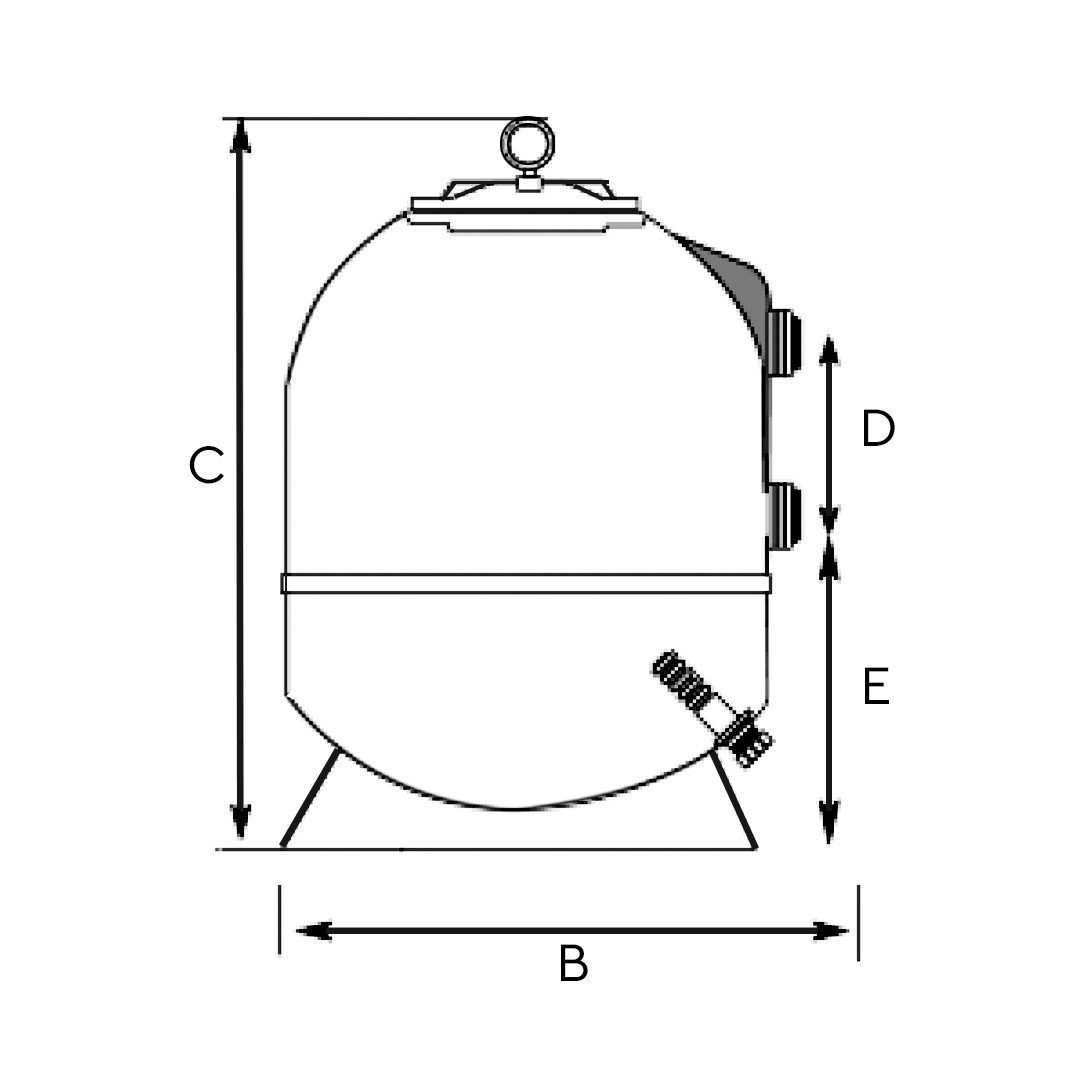

Dimensions & Performances
ZOOM IN
| Model | Diameter (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| S1-500SIDE | 500 | 760 | 820 | 167 | 330 |
| S1-600SIDE | 600 | 930 | 855 | 165 | 375 |
| S1-800SIDE | 800 | 1175 | 1020 | 210 | 490 |
| S1-900SIDE | 900 | 1375 | 1120 | 205 | 575 |
