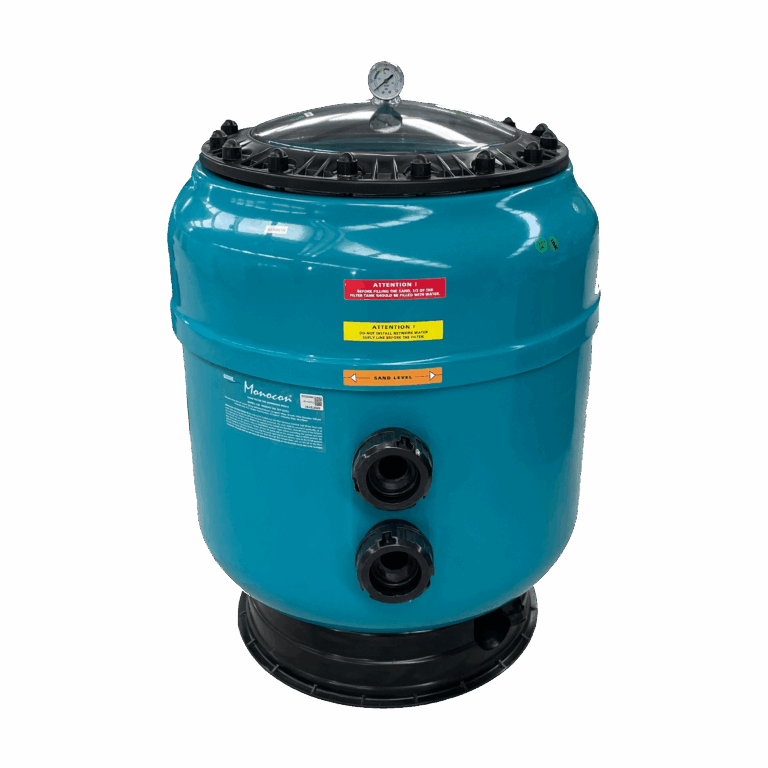

Fiberglass sand filter with transparent large lid
MODEL:
MONOCON TLL
MANUFACTURER:
Designed for reliable operation and high filtration performance, these filters are the ideal choice for demanding applications where durability and efficiency are essential.
Specifications
- Filter shell made of fiberglass reinforced polyester, complete with multiport valve, fittings, manometer and purge.
- Transparent large bolted lid.
- Max operating pressure: 2.5 bar.
- Max testing pressure: 3.5 bar.
- Filtration speed: 50m3/h/m2.
- Both connections are located at the base of the shell of the filter.
- Multiport valve: Included.
Dimensions & Performances
ZOOM IN

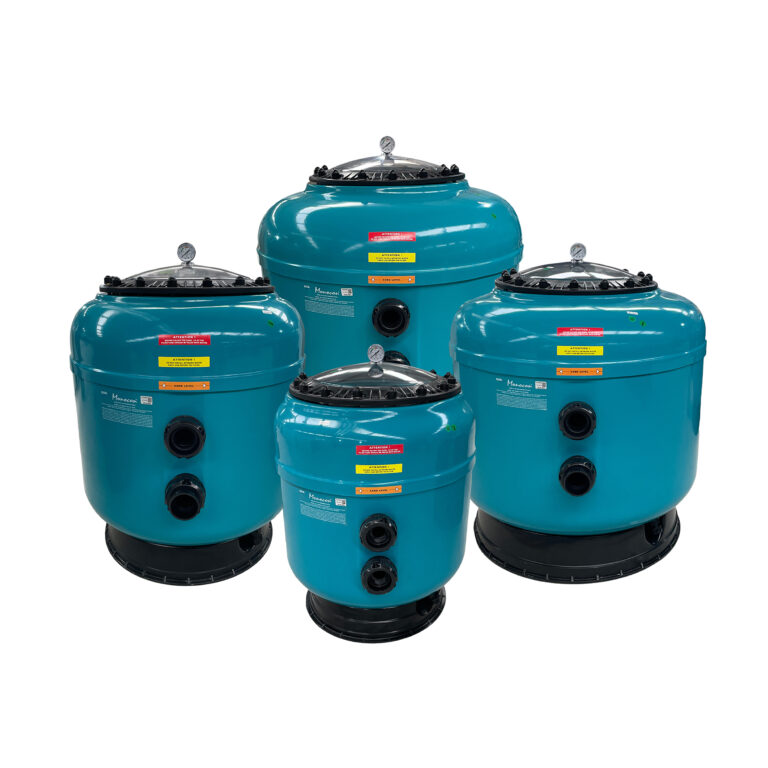

| Model | Diameter Ø (mm) | Connection | Flow rate (m³/h) | Sand (kg) | Gross weight (kg) |
|---|---|---|---|---|---|
| 021141TLL | 500 | 1½” | 10 | 100 | − |
| 021142TLL | 630 | 1½” | 16 | 150 | 28,5 |
| 021143TLL | 710 | 2” | 20 | 250 | 36 |
| 021144TLL | 830 | 2” | 27 | 350 | 41,4 |
| 021145TLL | 900 | 2” | 32 | 450 | 43,5 |

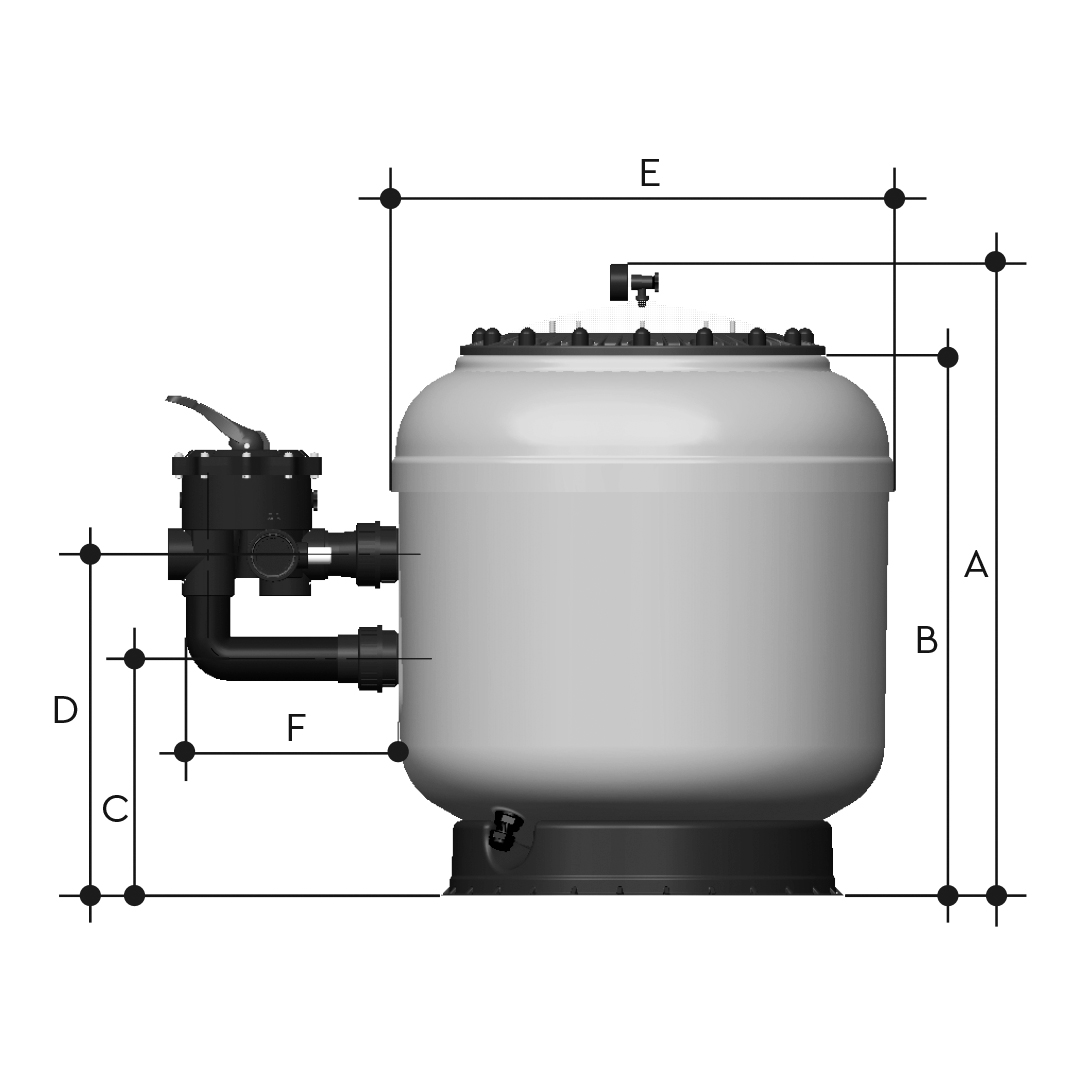

| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) |
|---|---|---|---|---|---|---|
| 021141TLL | 800 | 690 | 305 | 435 | 500 | 260 |
| 021142TLL | 830 | 700 | 310 | 440 | 630 | 260 |
| 021143TLL | 905 | 775 | 340 | 490 | 710 | 295 |
| 021144TLL | 970 | 840 | 380 | 530 | 830 | 295 |
| 021145TLL | 1020 | 890 | 415 | 565 | 900 | 295 |
