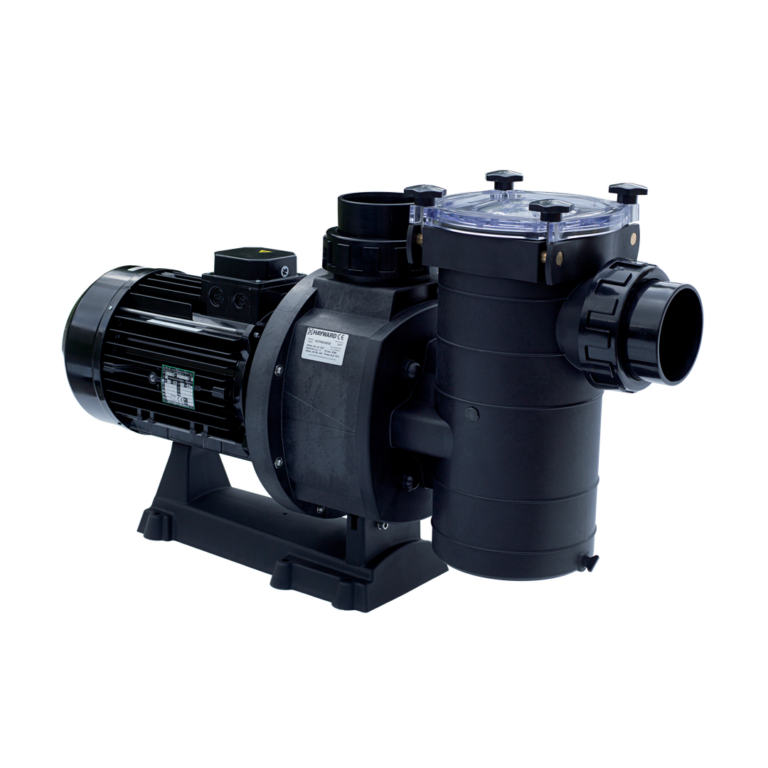

High-capacity pump
MODEL:
KAN/HCP4000
MANUFACTURER:
This self-priming centrifugal pump is made of glass-fibre reinforced thermoplastics.
Lightweight and easy to install.
Usage: very large pools, spas and water features.
Specifications
- High-performance hydraulics.
- Turbine made of reinforced Noryl.
- High-performance TEFC motor.
- High-capacity strainer (14Lt) with transparent cover for easy maintenance.
- Elevated base to ensure proper motor ventilation.
- Wide power range: from 5.5hp to 12.5hp.
- Operates at 50Hz/2.850rpm, IP55, class F insulation.

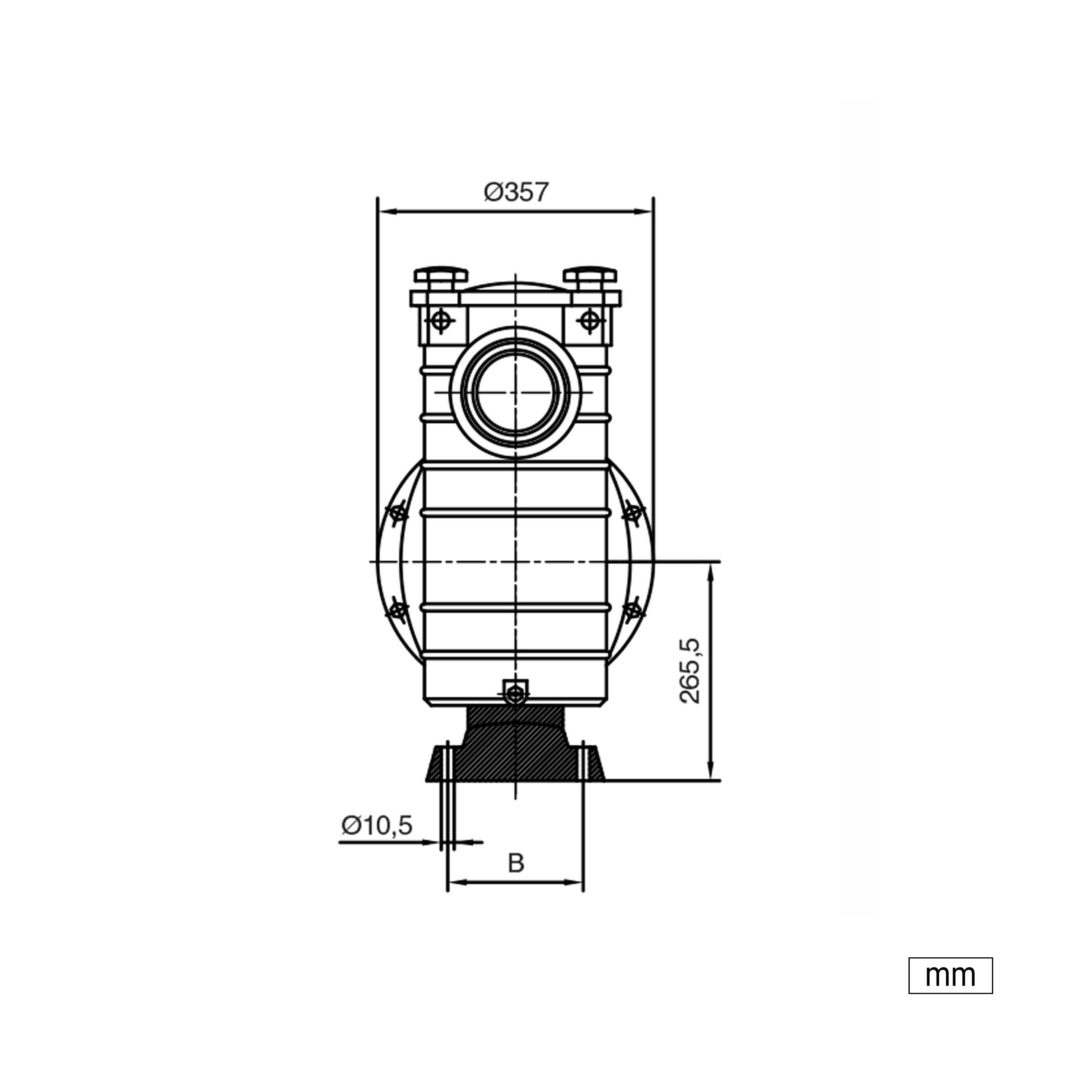

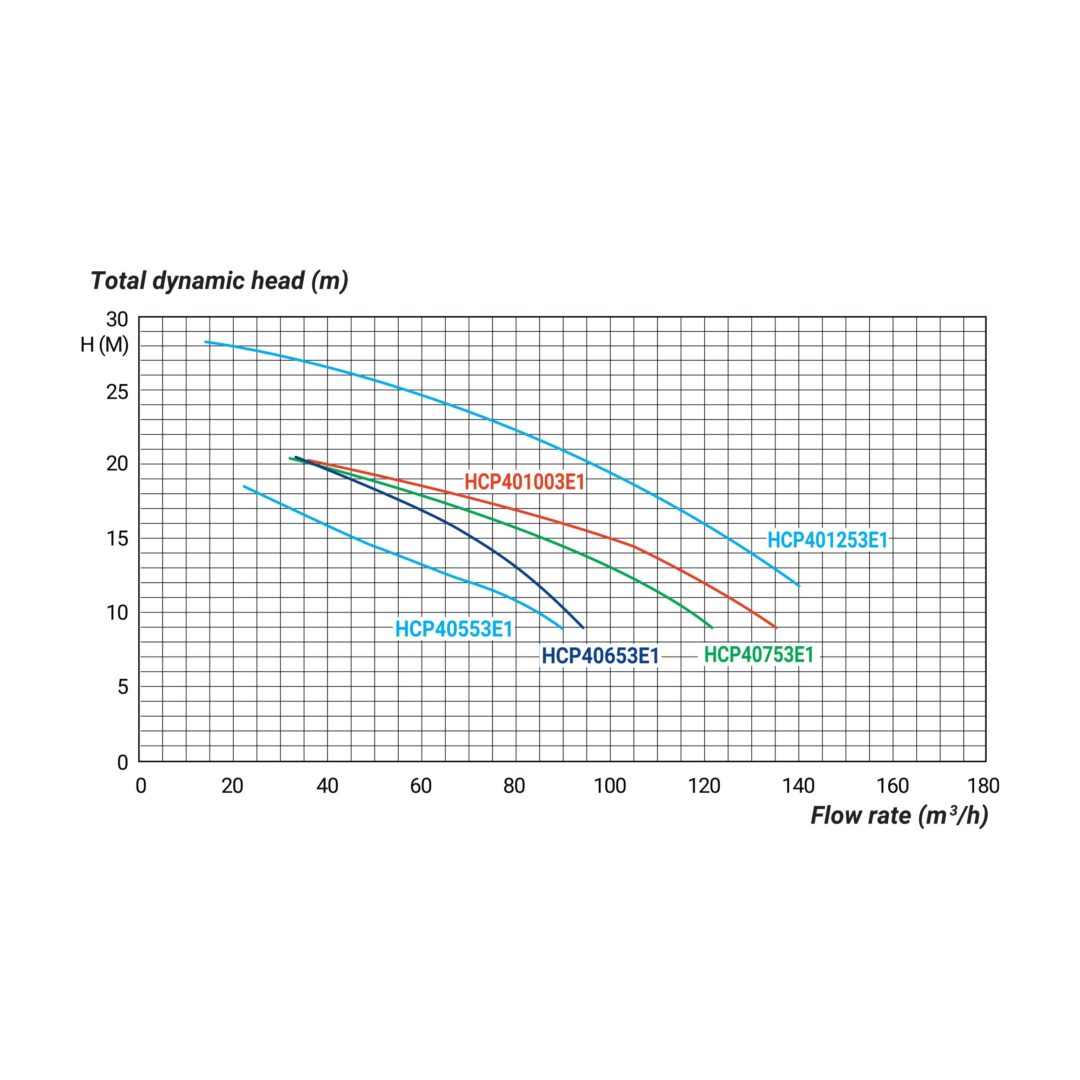

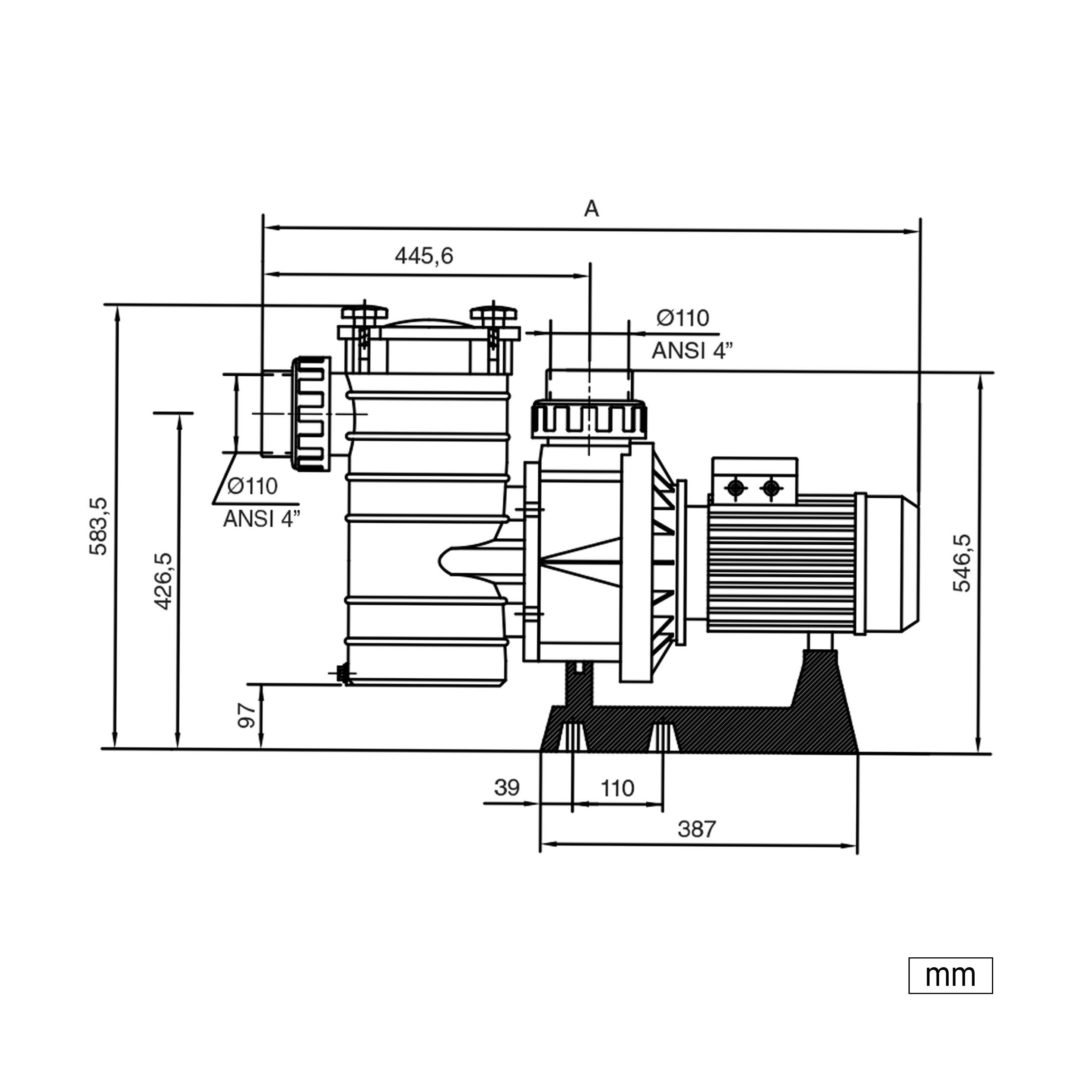

Dimensions & Performances
ZOOM IN
| Model | HP | A (mm) | B (mm) |
|---|---|---|---|
| KAN510 T1 ΙΕ3 (HCP40553E1) | 5,5 | 889 | 143 |
| KAN610 T1 IE3 (HCP40653E1) | 6,5 | 914 | 143 |
| KAN760 T1 IE3 (HCP40753E1) | 7,5 | 914 | 143 |
| KAN1020 T1 IE3 (HCP401003E1) | 10,0 | 944 | 185 |
| KAN1270 T1 IE3 (HCP401253E1) | 12,5 | 984 | 181,5 |
Catalogue
Downloads
