Standard ladder
MODEL:
PLS
MANUFACTURER:

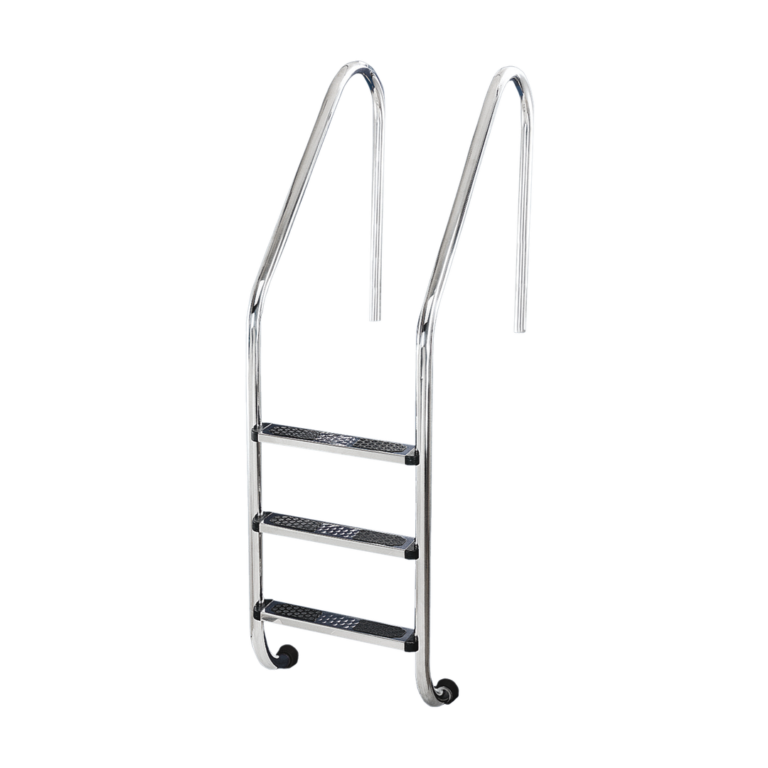

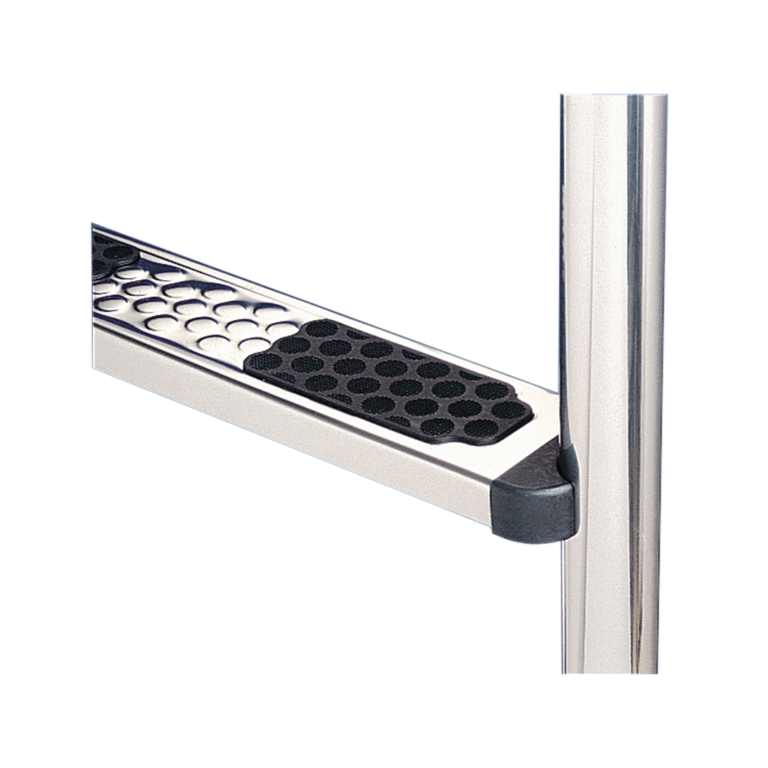

Swimming pool ladder in AISI-304L and AISI-316L. It is composed of a Ø 43mm x 1.2mm – diameter tube. A non-slip, flat-designed tread ensures security.
The ingenious tread fixing way leaves tubing completely smooth and free from screws and other fixings.
Our ladder is supplied complete with all components packaged in one box for easy assembly/installation where tread and escutcheons are protected with a scratch-resistant film that can be removed during installation.
For stainless steel products installed in pools with salt chlorinators, we suggest electrolytic polishing (electropolished).

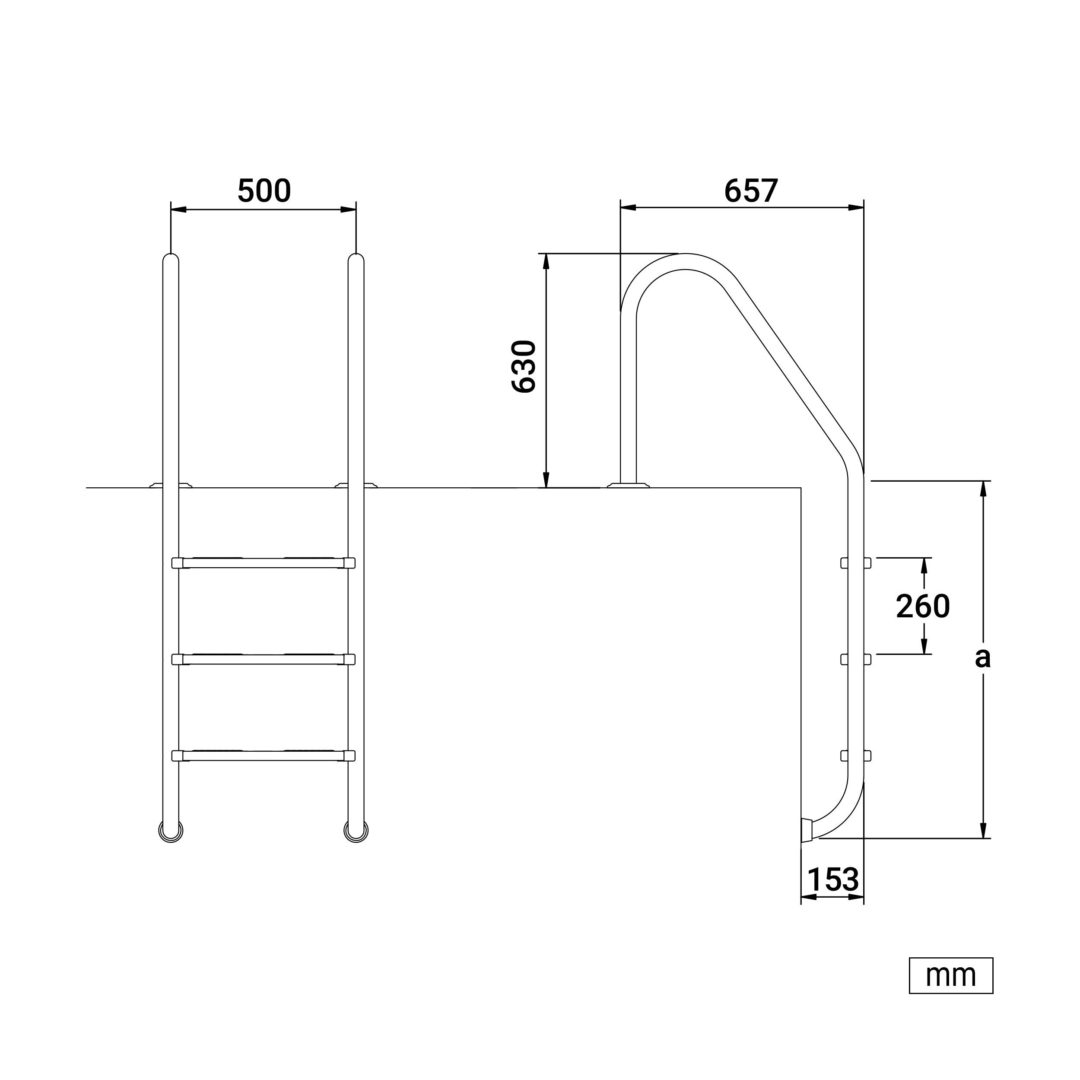

Dimensions & Performances
ZOOM IN
| Model (AISI-304L) | Model (AISI-316L) | Steps | Α (mm) |
|---|---|---|---|
| PLS-200 | PLS-201 | 2 | 696 |
| PLS-300 | PLS-301 | 3 | 946 |
| PLS-400 | PLS-401 | 4 | 1196 |
| PLS-500 | PLS-501 | 5 | 1446 |
| - | PLS-301E (electropolish) | 3 | 946 |
| - | PLS-401E (electropolish) | 4 | 1196 |
