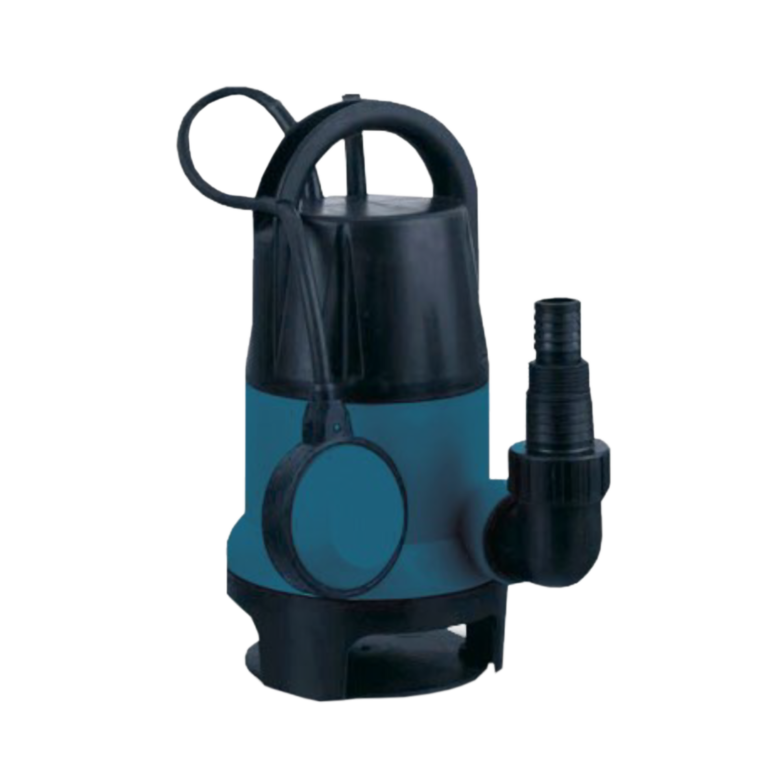

Submersible pump with float
MODEL:
HYDRAUPPC
MANUFACTURER:
Electric pump for clean water drainage with plastic body and impeller.
Ideal for domestic applications, handling clean water, emptying cellars- born, wells or collection tanks, emptying pools, and transfer systems.
Maximum heads of 5 meters and flow rates of 125 Lt/min. Maximum immersion 5 meters.
Cable 10m provided.
Specifications
- Pump body: ABS plastic.
- Impeller: Noryl.
- Motorhead: Copper.
- Mechanical ceramic sealing, NBR, graphite.
- Max flow rate: 7.500Lt/h.
- Max suction height: 5m.
- Max immersion depth: 5m.
- Solid material passage: 30mm.
- Outlet diameter: 1″.
- Voltage: 230V/50Hz.
- Protection: IP68.
- Overload protection.
- Max. water temperature: 40oC.
- Usage: pure water.
Dimensions & Performances
ZOOM IN
| HP | kW | Supply | WATT | DNM | Q (l/min) | H (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 0.5 | 0.4 | 1~230/240 | 400 | 1¼” | 16-100 | 5-1.7 | 3.2 |

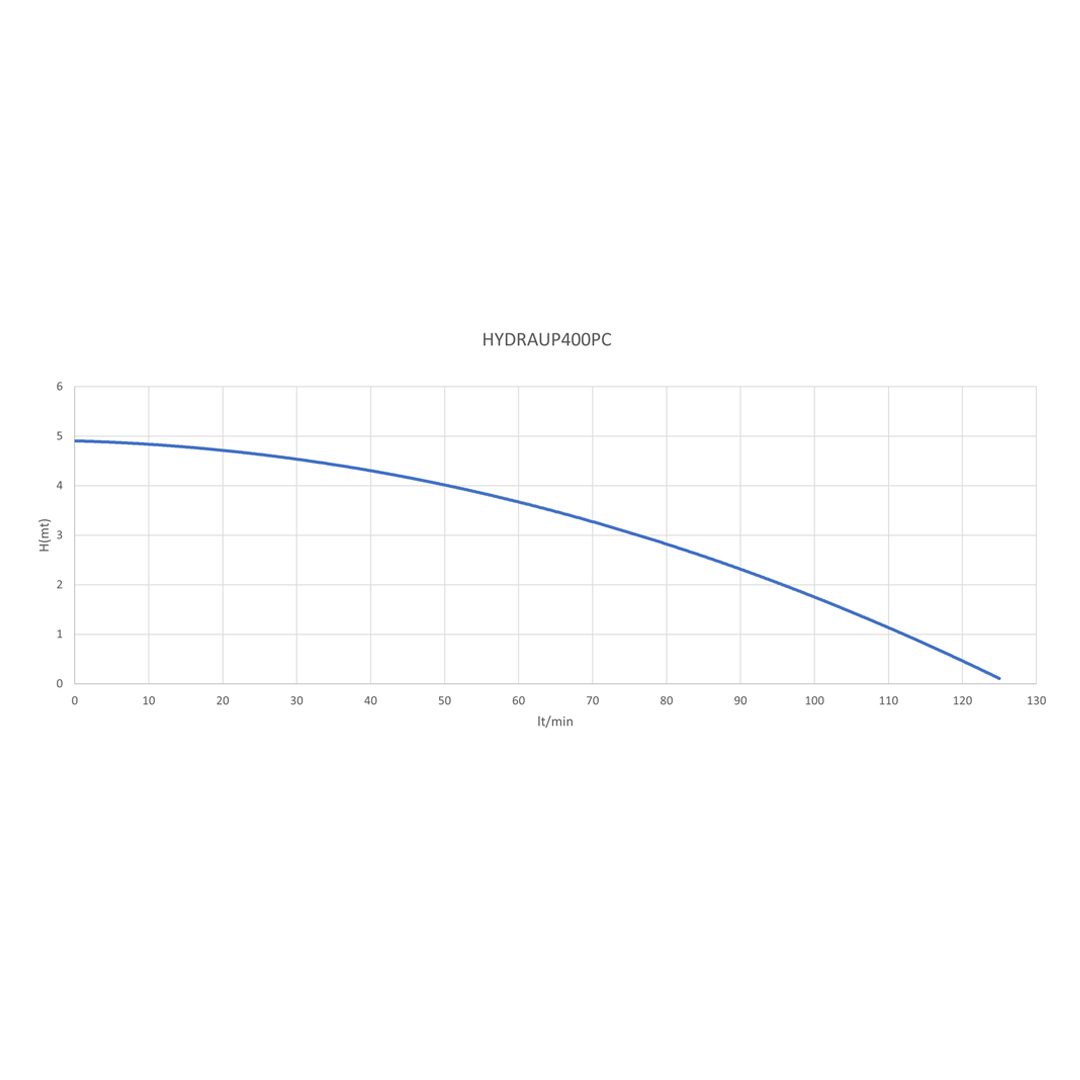

| Flow rate (m³/h) | Flow rate (l/min) | Manometric height H (m) |
|---|---|---|
| 0 | 0 | 5 |
| 1.25 | 20.8 | 4.6 |
| 2.5 | 41.6 | 4.2 |
| 3.75 | 62.5 | 3.5 |
| 5 | 83.3 | 2.8 |
| 6.25 | 104.1 | 1.6 |
| 7.5 | 125 | 0 |
