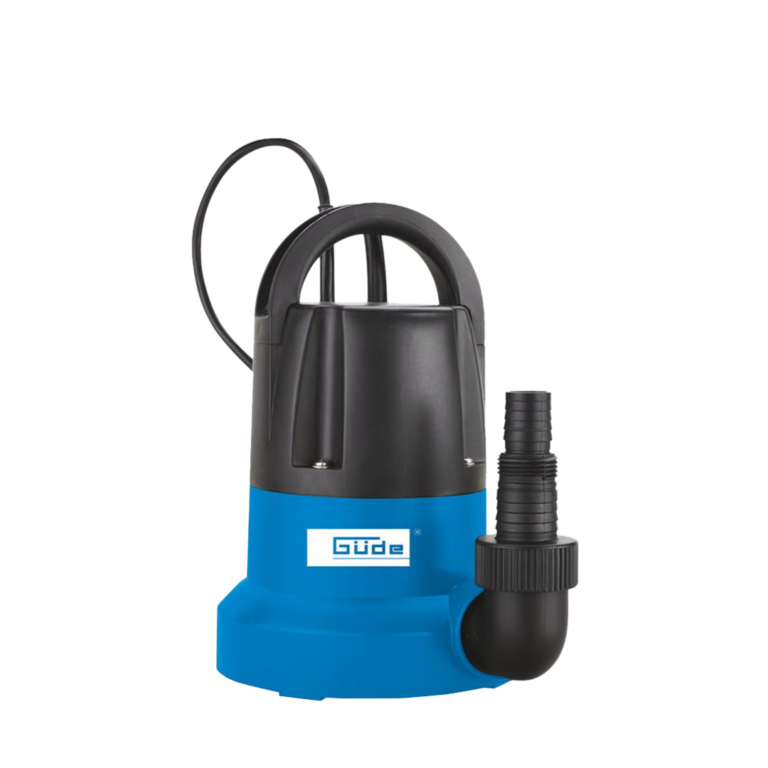

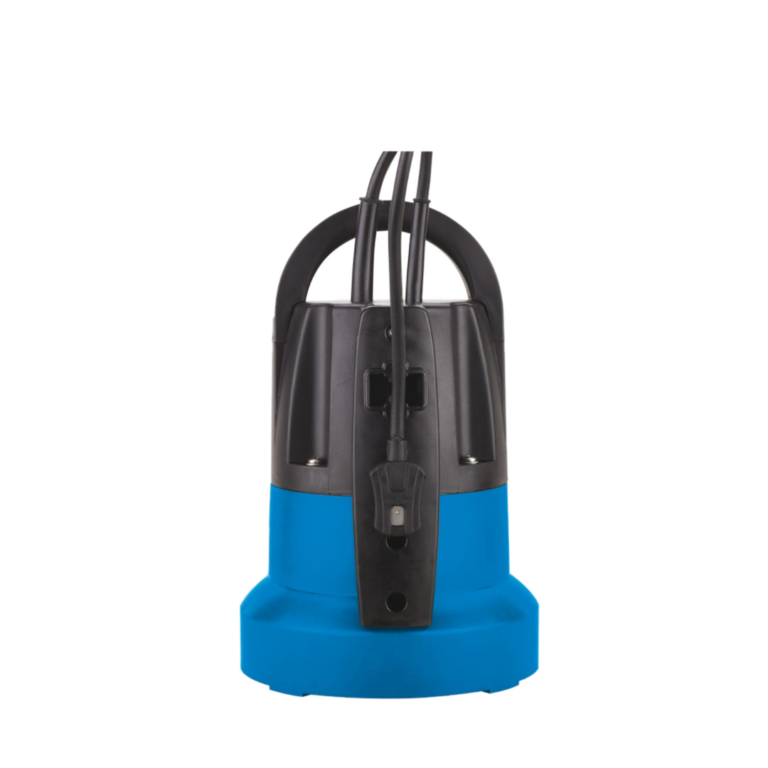

Flat submersible pump with built-in 3-positions electric float
MODEL:
GFS 401 S
MANUFACTURER:
Submersible pump with built-in 3 positions electric floater with 10m cable.
Automatic switch-off via integrated electronic control, integrated check valve, sensor switch fixation in 3 positions, and continuous operation.
Ideal for draining flat surfaces. For pumping from tanks or cisterns.
Specifications
- Pump body: ABS/PPO plastic.
- Impeller material: Noryl.
- Moter head: Copper.
- Shaft: Stainless steel AISI-304.
- Max flow: 7.000Lt/h.
- Max suction height: 8m.
- Max immersion depth: 7m.
- Solid material passage: 1mm.
- Outlet diameter: 1½”.
- Voltage: 230V/50Hz.
- IP protection: X8 – Overload protection, integrated non-return valve, automatic shutdown.
- Cable length: 10m.
- Dimensions (LxWxH): 280 x 280 x 200mm.
- Usage: pure water.

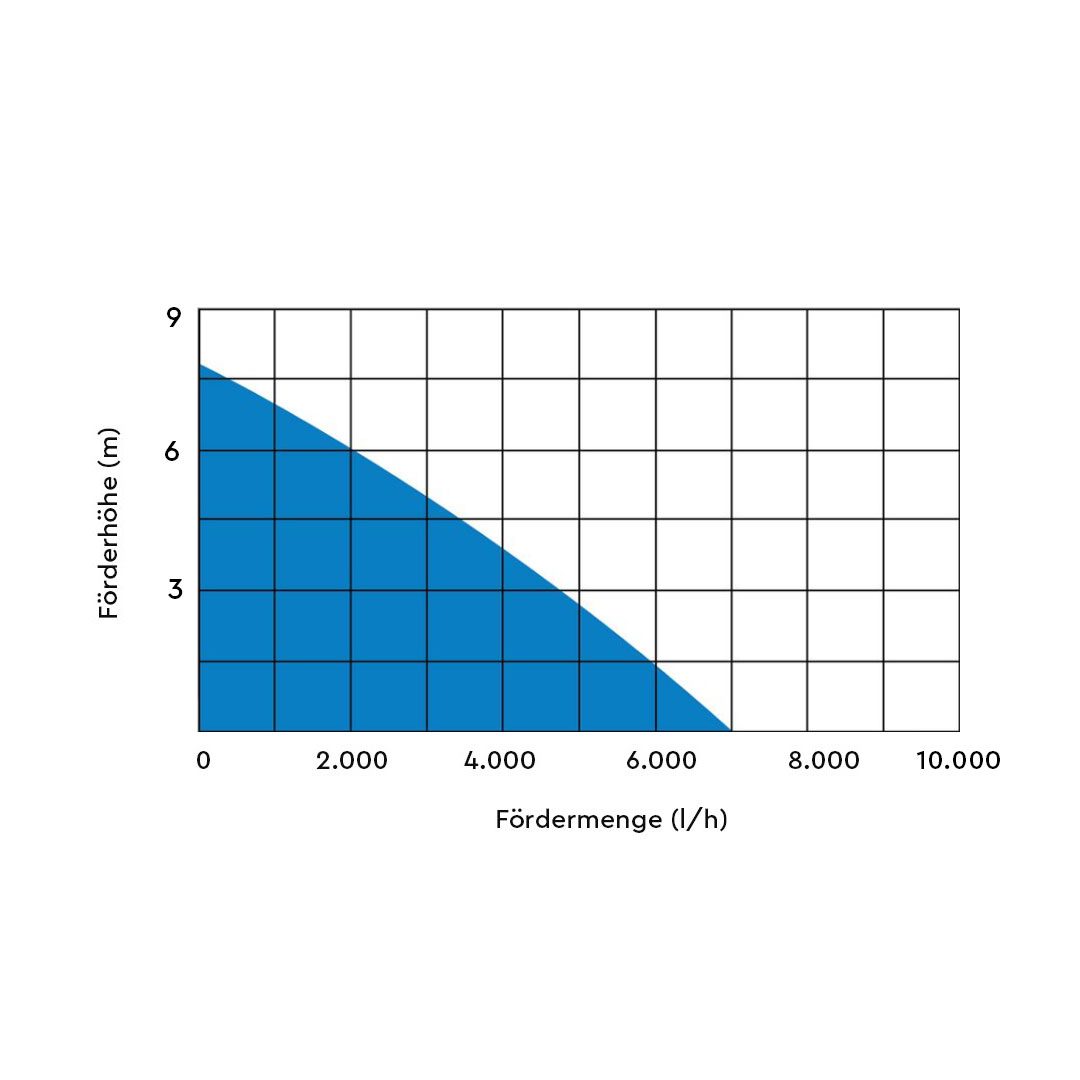

Dimensions & Performances
