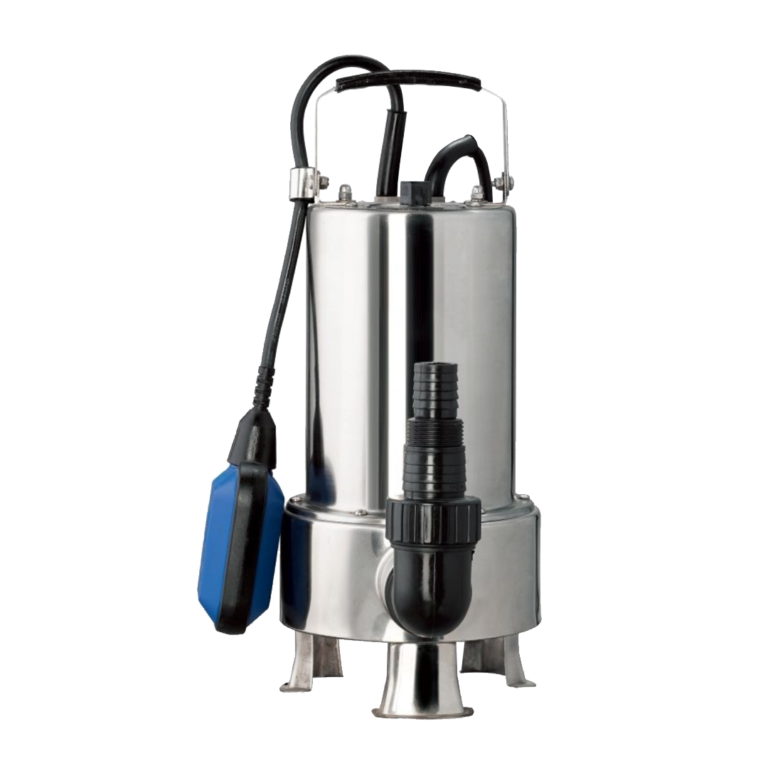

Submersible pump with float
MODEL:
HYDRAUPXD
MANUFACTURER:
Electric pump with vortex-type impeller for moving wastewater with suspended solid bodies, lifting sewage water, emptying septic tanks, and decanting.
Ideal for domestic, civil, and industrial applications.
Maximum heads of 9 meters and flow rates of 160 Lt/min. Maximum immersion 5 meters.
Equipped with 6 meters of cable.
Specifications
- Pump body: Stainless steel AISI-304.
- Impeller: Noryl.
- Motorhead: Copper.
- Mechanical ceramic sealing, NBR, graphite.
- Max flow rate: 9.600 Lt/h.
- Max suction height: 9m.
- Max immersion depth: 5m.
- Solid material passage: 30mm.
- Outlet diameter: 1½”.
- Voltage: 230V/50Hz.
- Protection: IP68.
- Overload protection.
- Max. water temperature: 40oC.
- Cable length: 6m.
- Usage: impure water.

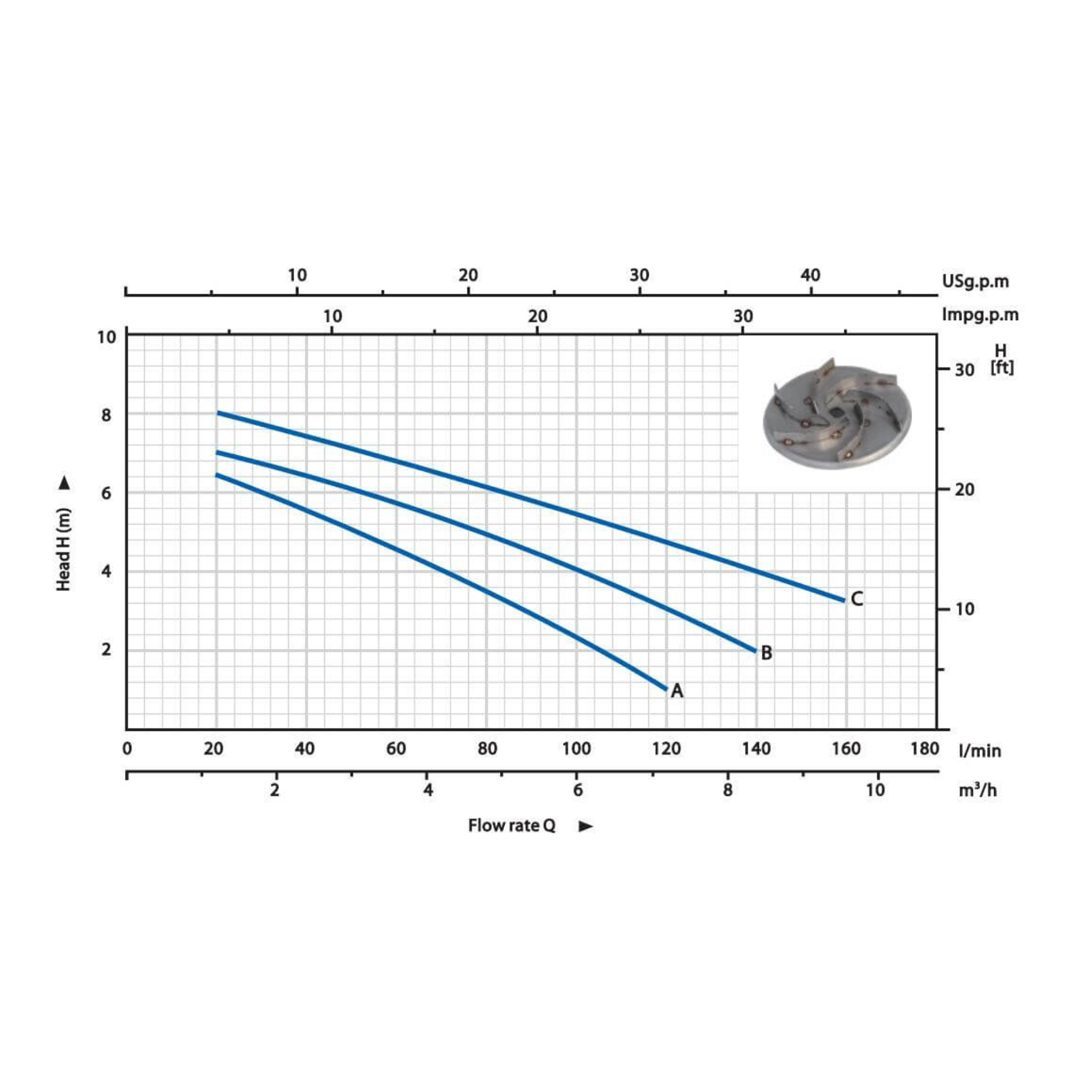

Dimensions & Performances
ZOOM IN
| HP | kW | Supply | WATT | DNM | Q (l/min) | H (m) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 1.0 | 0.75 | 1~230/240 | 750 | 1½” | 40-120 | 7.5-4.8 | 4.8 |
| Flow rate (m³/h) | Flow rate (l/min) | Manometric height H (m) |
|---|---|---|
| 0 | 0 | 9 |
| 1.2 | 20 | 8 |
| 2.4 | 40 | 7.5 |
| 3.6 | 60 | 6.8 |
| 4.8 | 80 | 6.1 |
| 6 | 100 | 5.5 |
| 7.2 | 120 | 4.8 |
| 8.4 | 140 | 4.1 |
| 9.6 | 160 | 3.2 |
