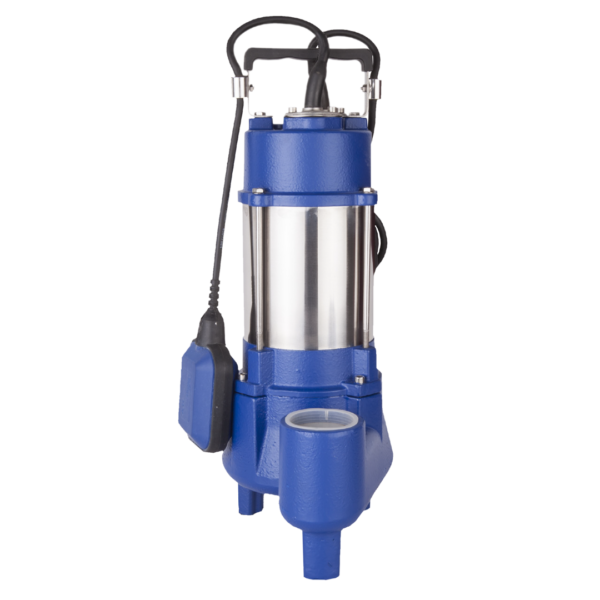

Submersible sewage pump
MODEL:
PVT
MANUFACTURER:
Pump with shredding system for moving water loaded with suspended solid bodies, lifting sewage water, emptying septic tanks, and transferring.
Mechanical ceramic sealing, NBR, graphite, silicon carbide. Maximum heads of 15 meters and flow rates of 600 Lt/min. Maximum immersion 5 meters.
Ideal for domestic, civil, and industrial applications.
Supplied with 8m cable.
Specifications
- Pump body: Stainless steel/Cast iron G20.
- Impeller material: Cast iron.
- Axis: Stainless steel AISI-304.
- Outlet diameter: 2″ (flanged).
- Moter: Bipolar/Embedded Thermal.
- Moter head: Copper.
- Voltage: 230V/50Hz.
- Usage: wastewater.
Dimensions & Performances
ZOOM IN
Performance curve
Catalogue
