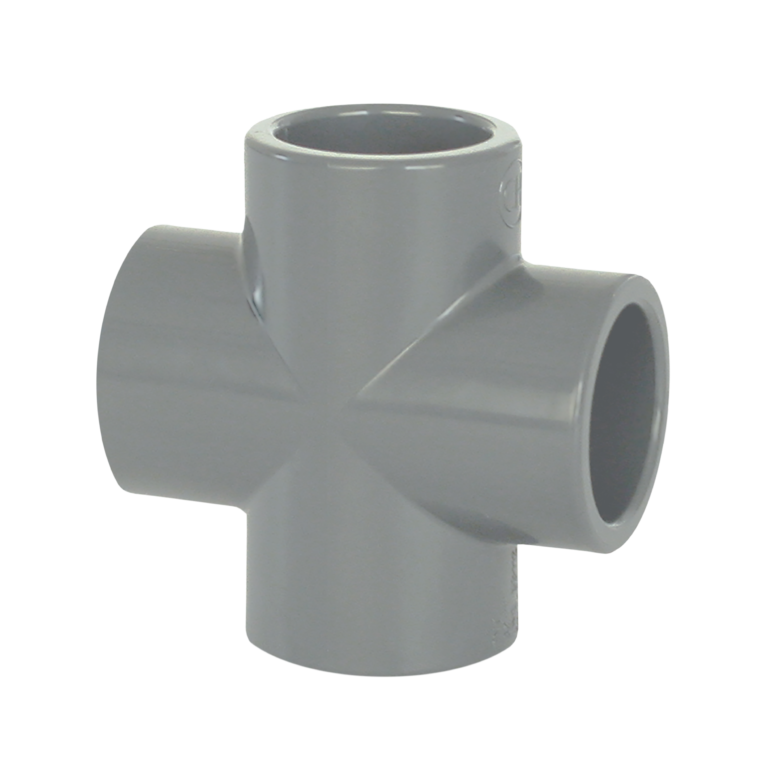

Material: Unplasticised polyvinyl chloride (PVC-U).
Dimensions: All sizes according to EN 1452.
Hydraulic test: In accordance with UNE-EN 917.
Work Conditions:
Assembly:

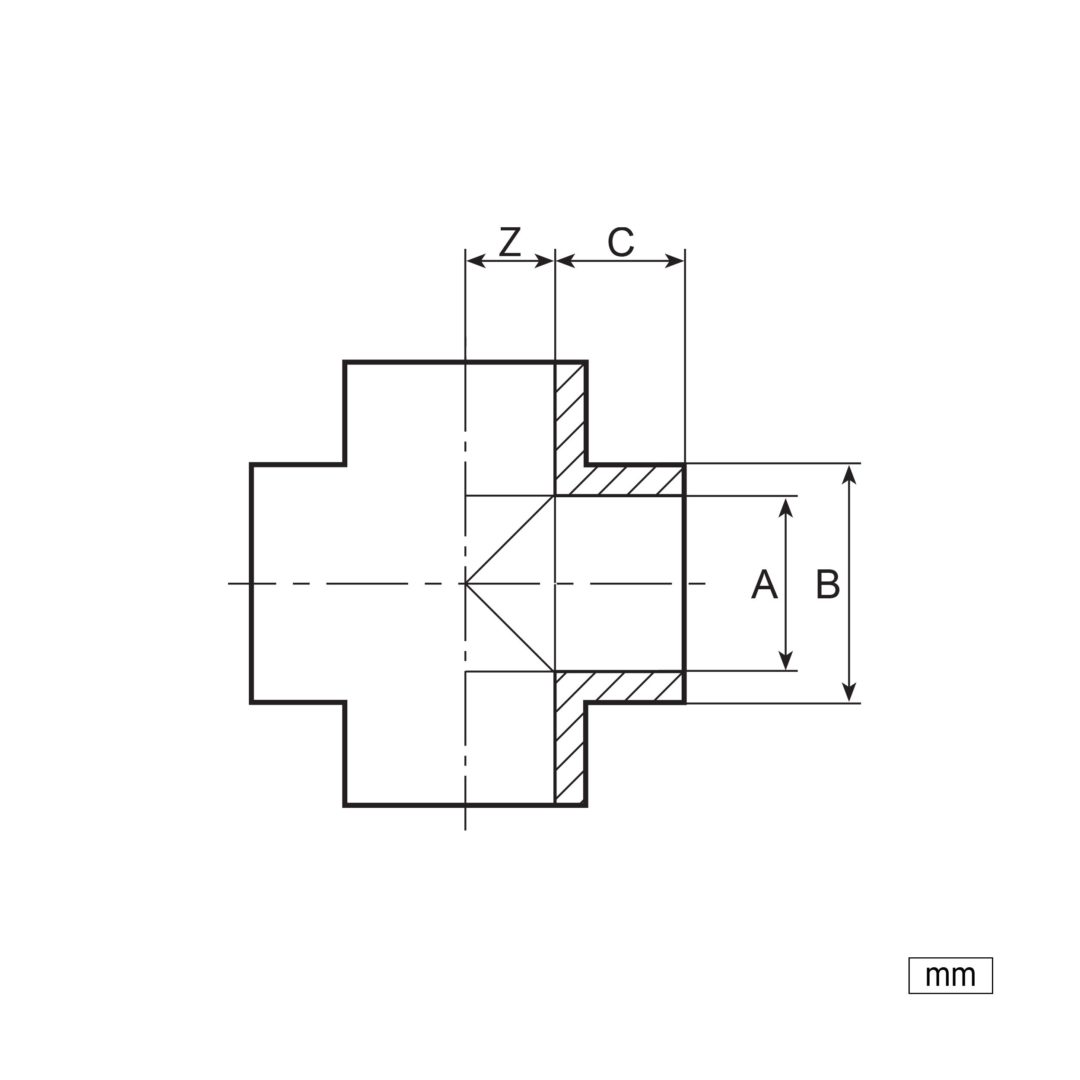

Code | DN | A | B | C | Ζ | Ø |
---|---|---|---|---|---|---|
7109020 | 15 | 20 | 29 | 17 | 12 | 20 |
7109025 | 20 | 25 | 35 | 19 | 14,5 | 25 |
7109032 | 25 | 32 | 43 | 22 | 18 | 32 |
7109040 | 32 | 40 | 52 | 27 | 23 | 40 |
7109050 | 40 | 50 | 61 | 31 | 26 | 50 |
7109063 | 50 | 63 | 76 | 38 | 32,5 | 63 |
7109075 | − | − | − | − | − | 75 |
7109090 | − | − | − | − | − | 90 |
7109110 | − | − | − | − | − | 110 |
