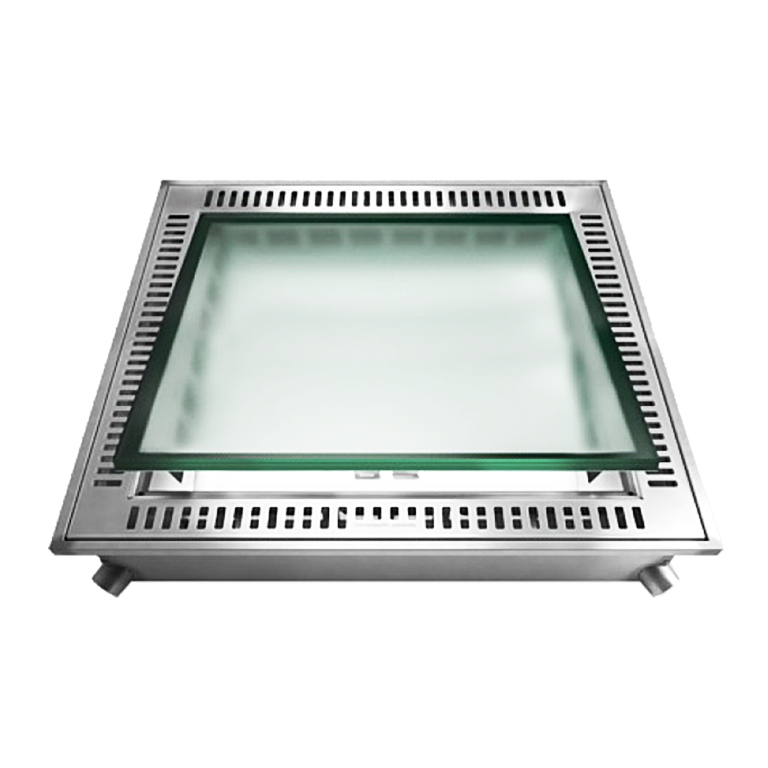

Openable INOX ventilating skylight
MODEL:
MXA

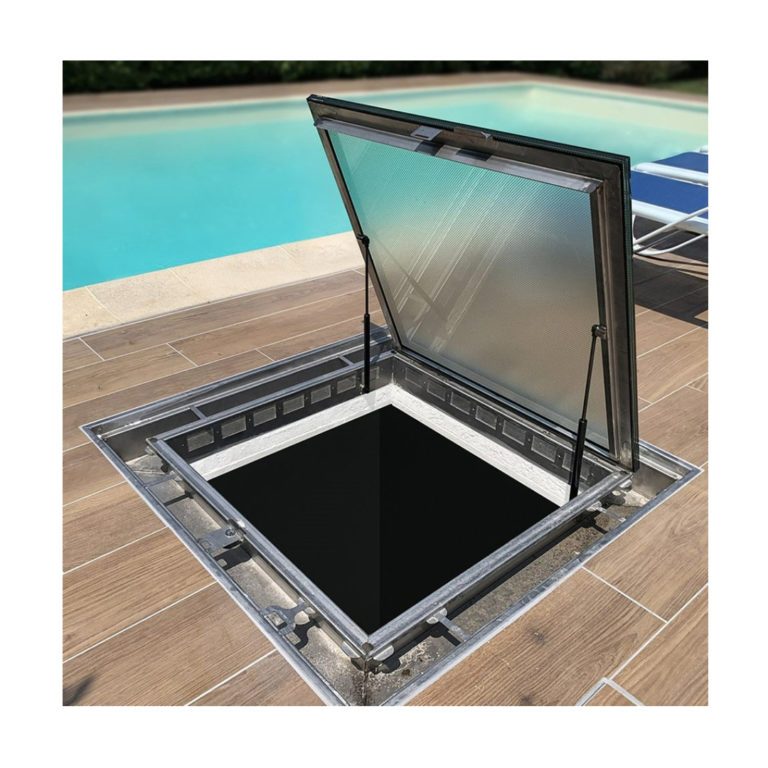

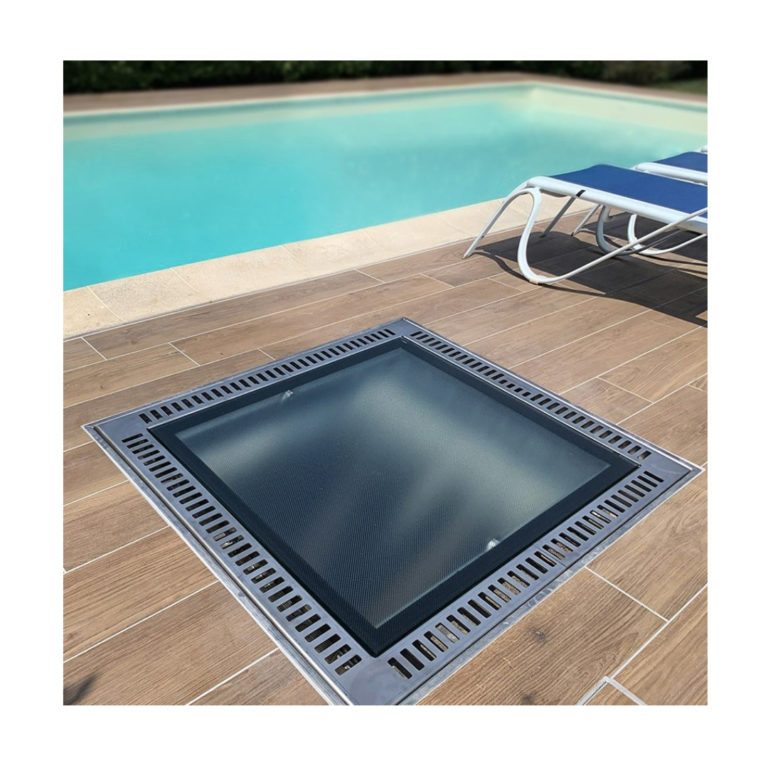

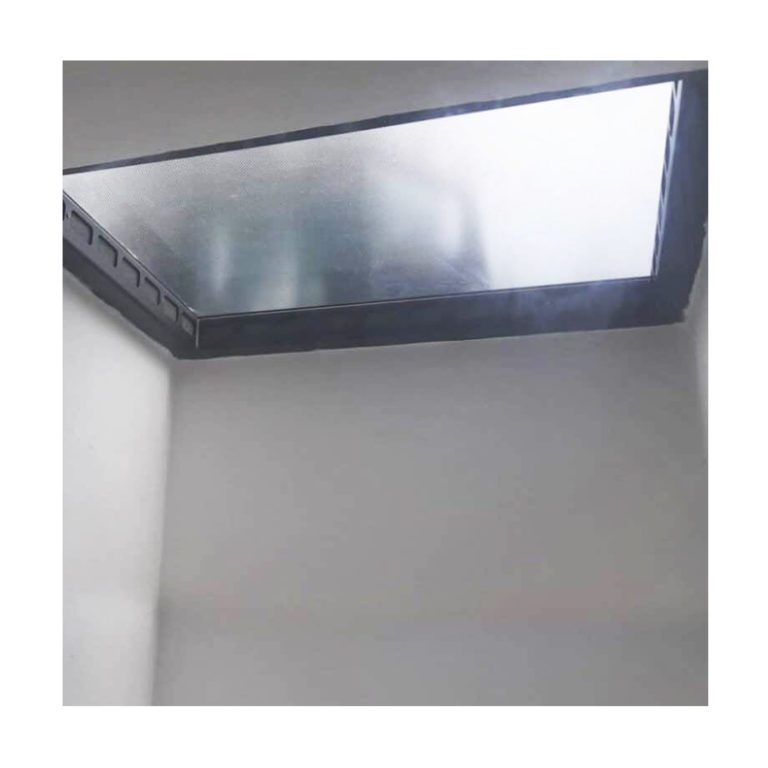

Openable INOX ventilating skylight can be installed during the construction or renovation of terraces and sidewalks with light wells. Also ideal for applications in the garden, on precast lightwells made of concrete or plastic.

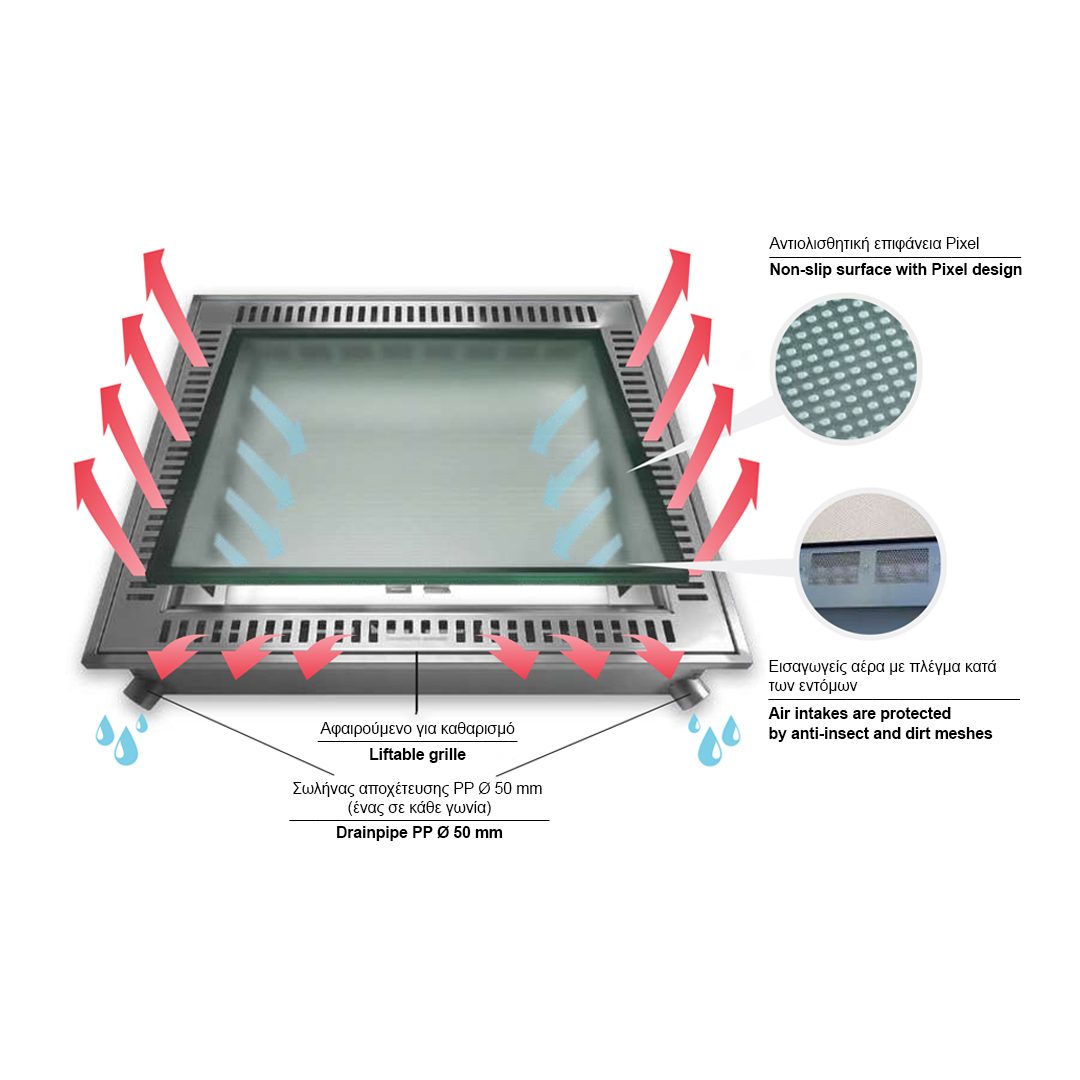

Stainless steel structure, with high structural bearing capacity, for easily adapting to a variety of situations. The front drainpipes allow rainwater to be channelled into dedicated drainage pipes on the ground floor for sheltered, clean and dry basement windows.
Specifications
- AISI 316 stainless steel.
- Certified safety glass with anti-slip surface R11.
- Can be used in combination with a shower.
- Storage of items and tools inside the chamber.

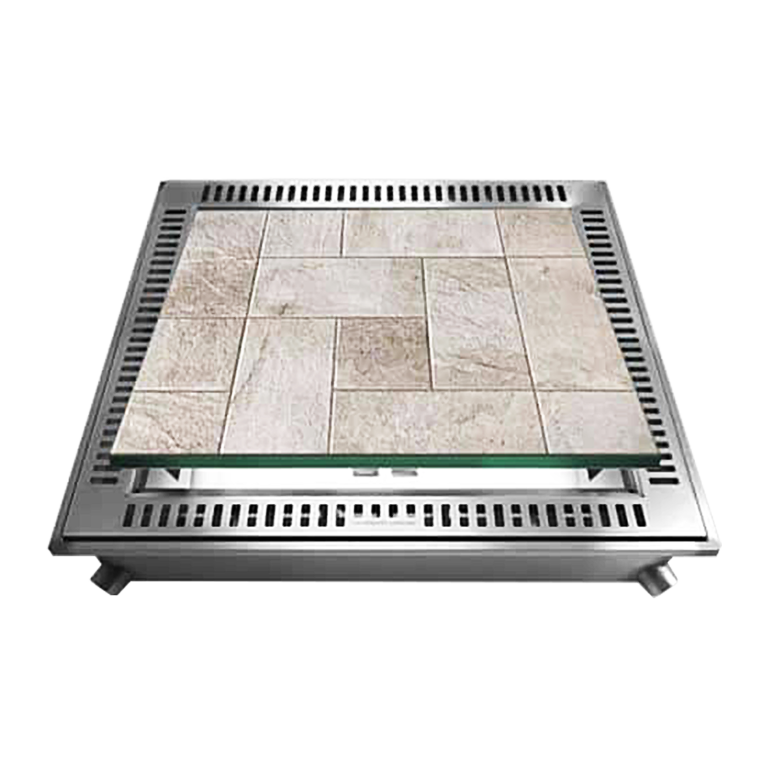

- Covering with porcelain tiles or resin flooring (alternative option).

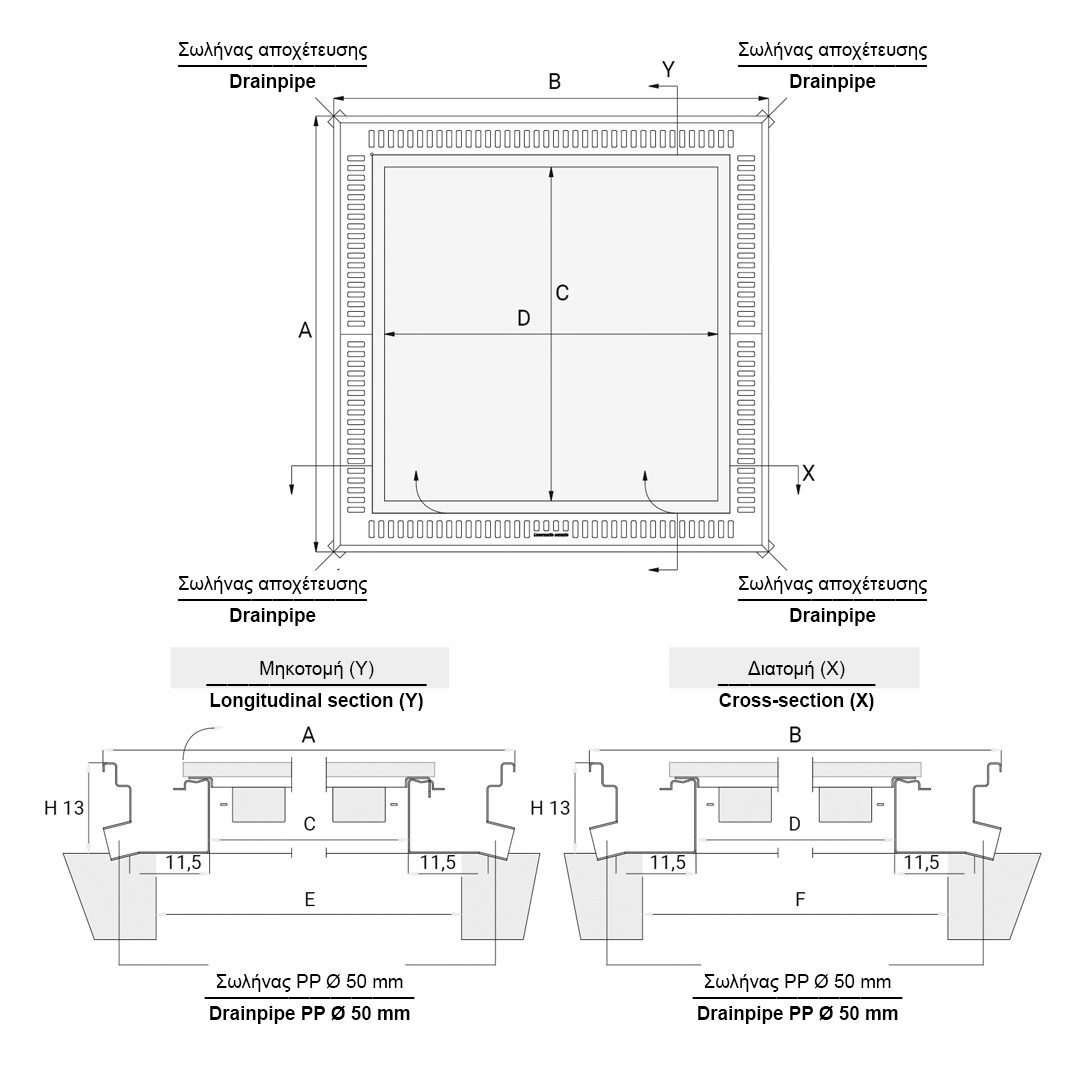

Dimensions & Performances
ZOOM IN
| Code | Dimension A x B | Luminous compartment C x D | “From-to” base hole E x F | Weight (Kg) | Lid surface (m²) |
|---|---|---|---|---|---|
| MX-A110 | 110 x 110 | 79.6 x 79.6 | min 80 x max 94 | 80 | 0.63 |
| MX-A130 | 130 x 130 | 99.6 x 99.6 | min 100 x max 114 | 90 | 0.99 |
| MX-A200 | 110 x 19.5 | 79.6 x 168.3 | min 80 x 170min 94 x 184 | 140 | 1.34 |
