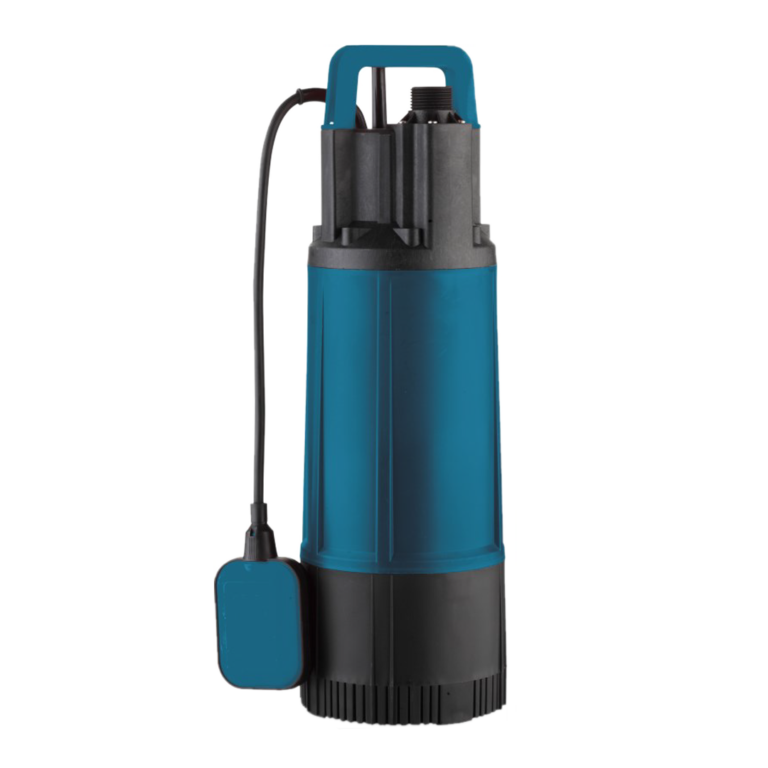

Multi-impeller submersible pump with float
MODEL:
HYDRATOP 40
MANUFACTURER:
Multi-impeller submersible electric pump with plastic pump body and impellers.
Able to develop a maximum flow rate of 100 Lt/min and an excellent head up to 40 meters.
These electric pumps are ideal for pumping clean water for domestic supply from wells, holding tanks, or tanks. Also excellent for domestic irrigation systems or for emptying cisterns.
Supplied with 12m cable.
Specifications
- Pump body: ABS plastic.
- Impellers: Noryl.
- Motorhead: Copper.
- Mechanical ceramic sealing.
- Max flow rate: 6.000Lt/h.
- Max suction height: 7m.
- Max immersion: 4m.
- Solid material passage: 5mm.
- Outlet diameter: 1″.
- Voltage: 230V/50Hz.
- Protection: IP68.
- Overload protection.
- Max. water temperature: 40oC.
- Usage: pure water.

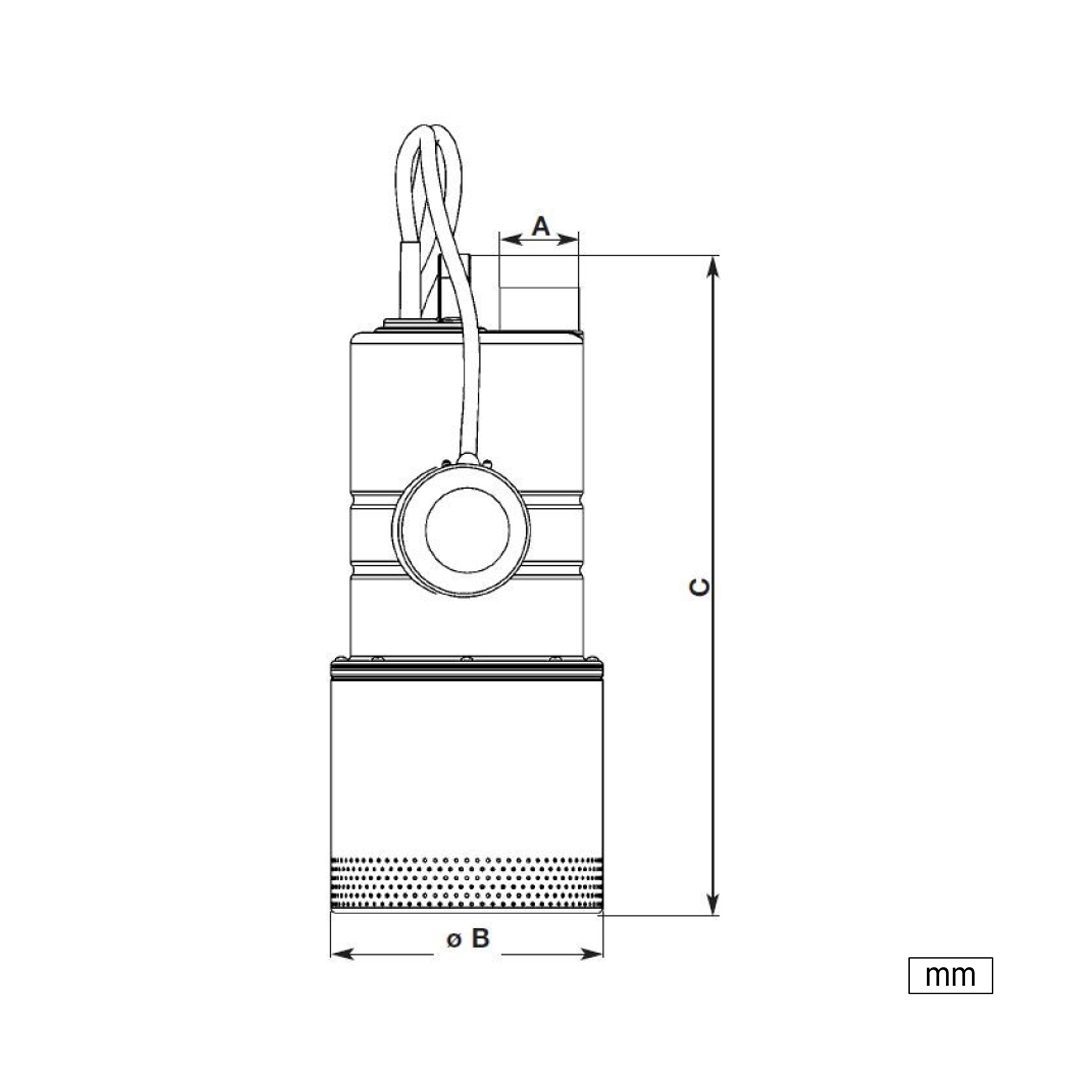

Dimensions & Performances
ZOOM IN
Performance curve
| HP | kW | A | B | C | Q (l/min) | H (m) | DNA | DNM |
|---|---|---|---|---|---|---|---|---|
| 1.6 | 1.2 | 425 | 180 | 185 | 16-66 | 36-22 | 1″ | 1″ |
| Flow rate (m³/h) | Flow rate (l/min) | Manometric height H (m) |
|---|---|---|
| 0 | 0 | 40 |
| 1 | 16.6 | 36 |
| 2 | 33.3 | 32 |
| 3 | 50 | 26 |
| 4 | 66.6 | 18 |
| 5 | 83.3 | 12 |
| 6 | 100 | 0 |
