25133

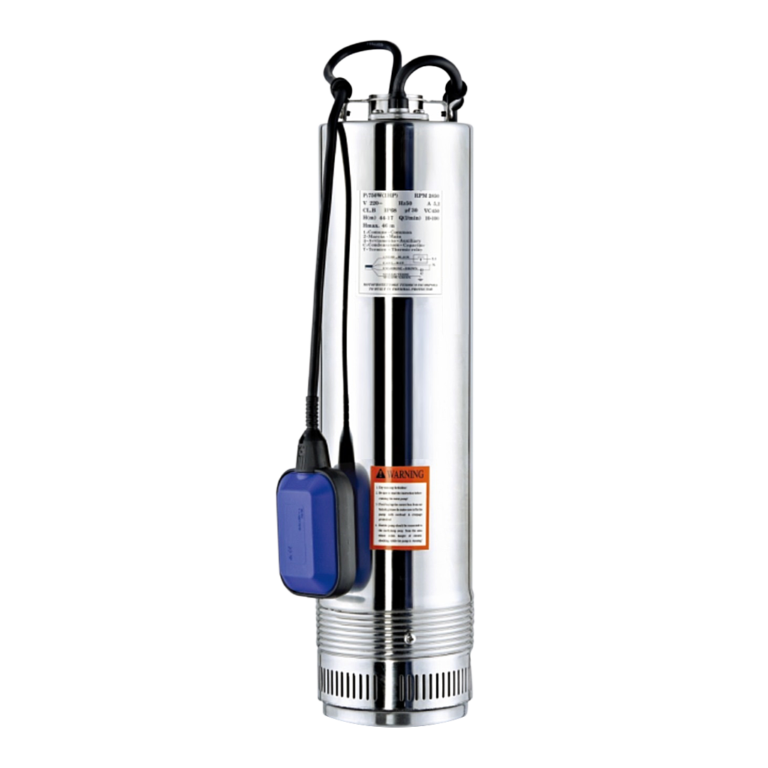

Multi-stage submersible pump with float

MODEL: HYDRABOST
MANUFACTURER:
Clear

Vertical multi-stage submersible 5” electric pump for conveying clean water that does not exceed 35°C.

Particularly suitable for irrigation, pressurization systems, for industrial and civil uses. Built to guarantee operation with a minimum water level.

The HYDRABOST is always supplied with float, 10 meters of cable, and a control panel with an integrated capacitor.

Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

    Specifications
    • Pump body: Stainless steel AISI-304.
    • Impeller: Noryl.
    • Motorhead: Copper.
    • Max flow rate: 6.000 Lt/h.
    • Max suction height: 7m.
    • Max immersion depth: 7m.
    • Rotation speed: 2.850rpm.
    • Solid material passage: 5mm.
    • Outlet diameter: 1½”.
    • Voltage: 230V/50Hz.
    • Overload protection.
    • Protection: IP68.
    • Max. water temperature: 35oC.
    • Usage: pure water.

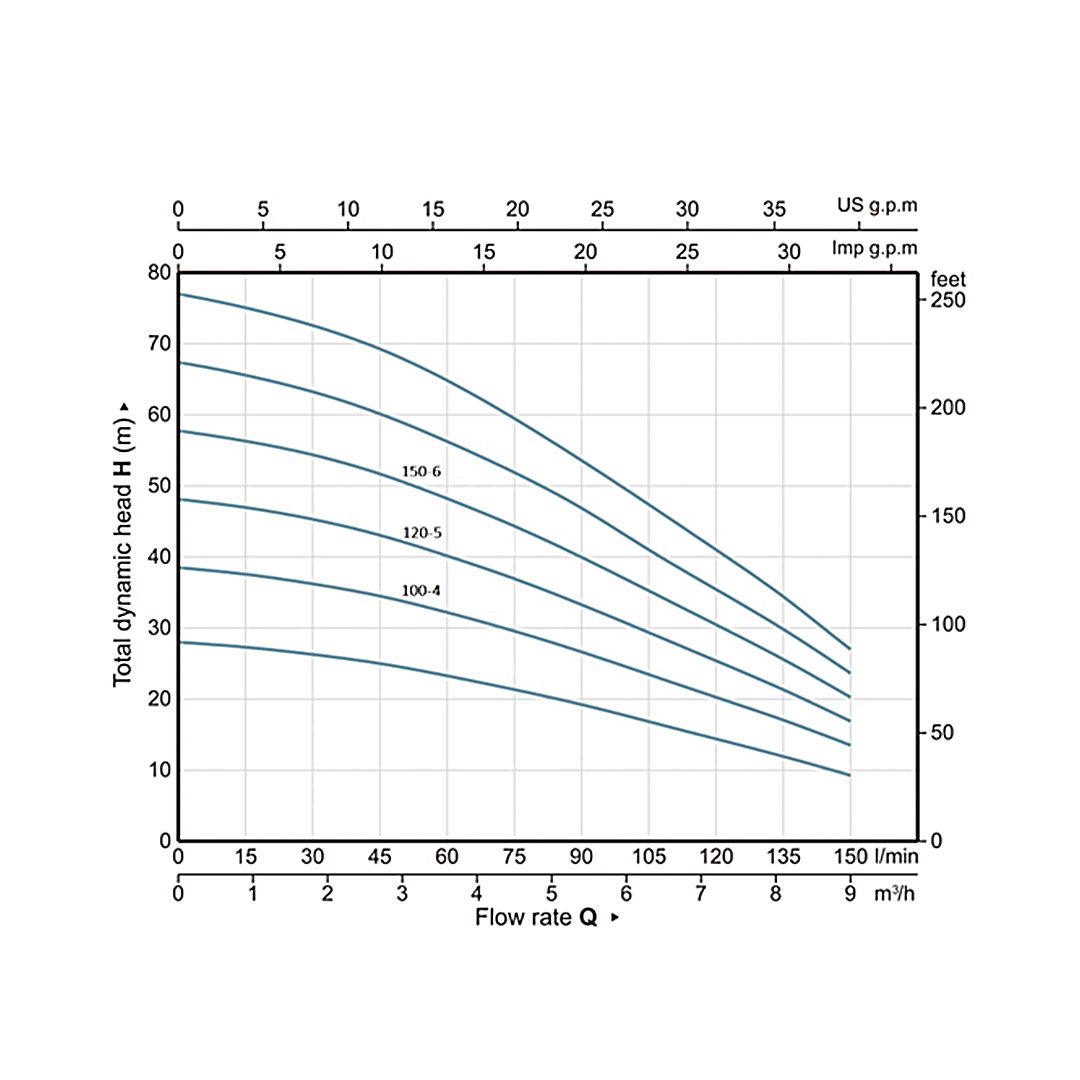

    Dimensions & Performances
    ModelHPkWImpellers
    HYDRABOST100-41.00.754
    HYDRABOST120-51.20.925
    HYDRABOST150-61.51.16
    Model: HYDRABOST100-4Model: HYDRABOST120-5Model: HYDRABOST150-6
    Flow rate (m³/h)Flow rate (l/min)Manometric height H (m)Manometric height H (m)Manometric height H (m)
    00516477
    0.610506274
    1.220496173
    2.440445566
    3.660354554
    4.880253137
    6.0100141821
