Pressure control

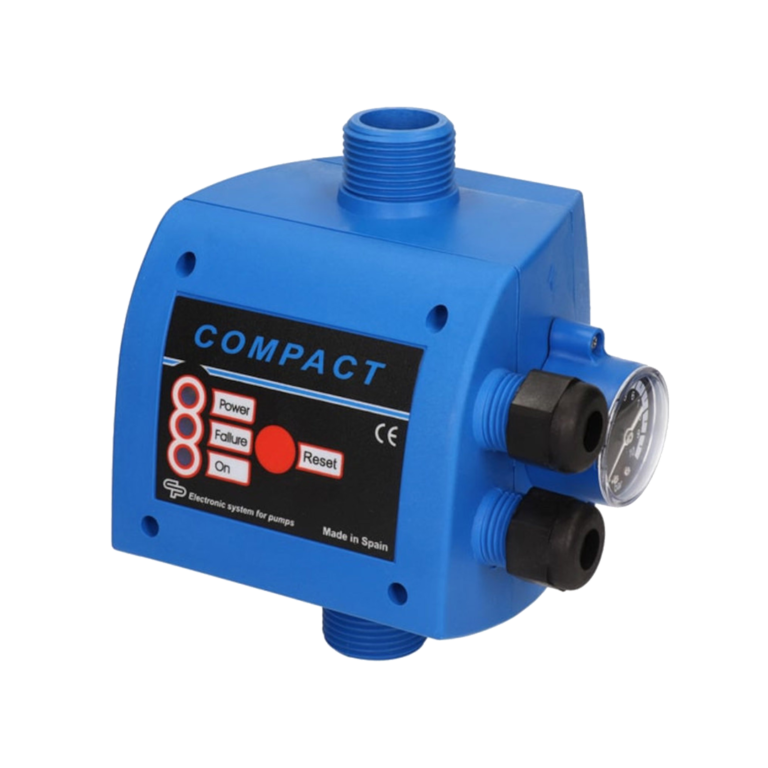

MODEL: COMPACT 2 / C310144MC K
Clear

COMPACT 2 is a compact device intended for the control and protection of electric pumps up to 2 hp.

Its patented system, through the use of flow rate and pressure detection sensors connected to an electronic card, controls the start and stop of the electric pump, guaranteeing its optimal functioning and protecting it against possible lack of water in the suction. Replaces the traditional autoclave system, drastically reducing overall dimensions and eliminating all periodic maintenance operations.

COMPACT 2 automatically starts the electric pump and keeps it running until the user requests water from the system. The electric pump stops when the withdrawal stops and in any case, not before 10 seconds from the start-up phase.

Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

    Specifications
    • Replaces the expansion tank.
    • Gives a start order to the pump when there is a pressure failure on the net.
    • Interrupts the operation of the pump when there is no water in the net.
    • Control range of network start-up pressure up to 3 bar with programmed starting pressure at 1.5 bar.
    • Auto-restart in case of malfunction.
    • Automatic retest when the dry run protection system is out of order every 30 minutes continuously for 24 hours.
    • Contains a pressure regulator, manometer, non-return valve, cable, reset button, and 3 led indicators (POWER-ON- FAILURE).
    • Easy to install with zero maintenance.
    • Electronic circuit with protective cover, easy to replace.
    • Overload protection.

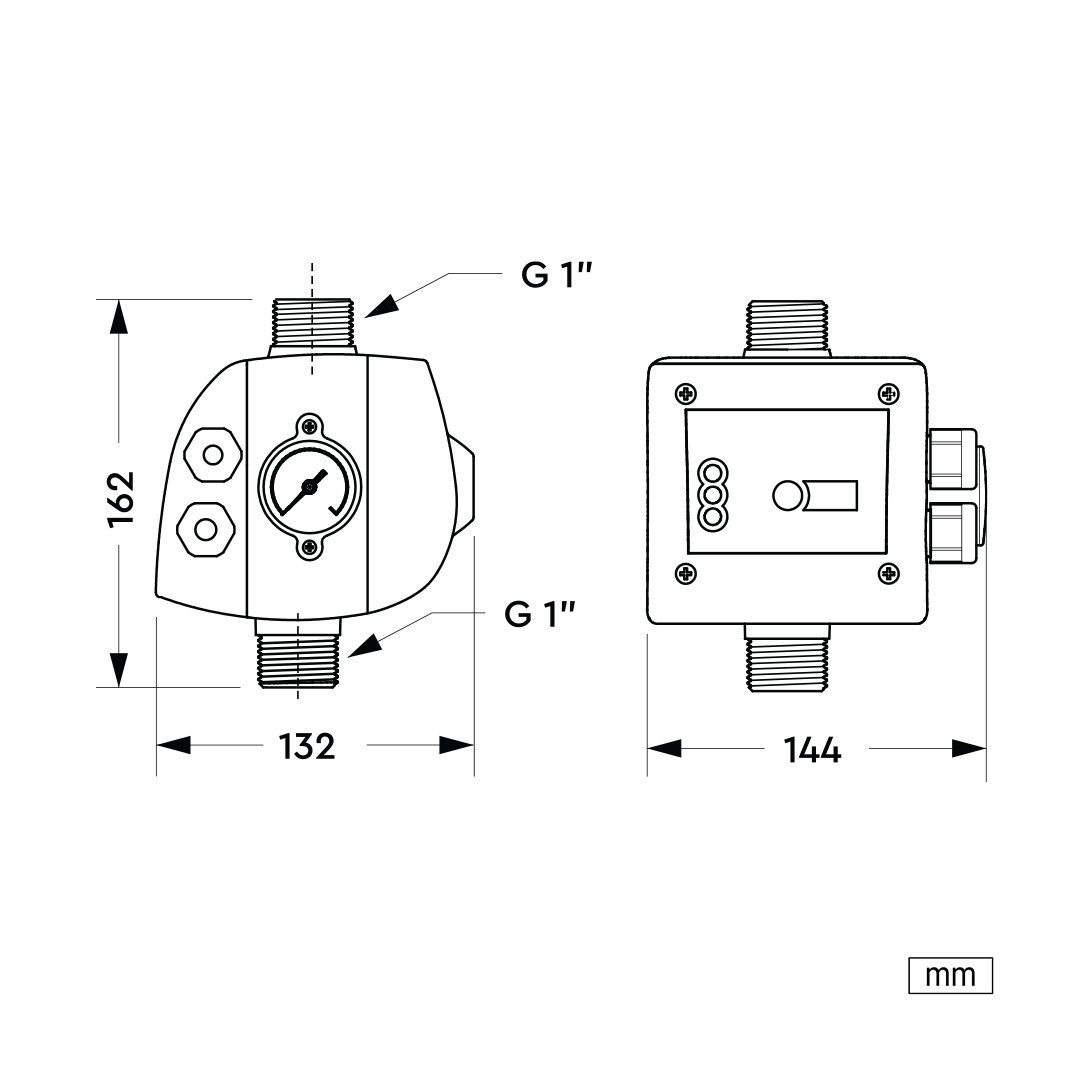

    Dimensions & Performances
    VoltageMax currentMax pump powerStart up pressureMax operating pressureMax flowWater temperatureProtection classSuction depression-diameterWeight
    ~1 x 110÷230 Vac, 50/60 Hz16 A1.5 kW (2 HP)1.5 ÷ 3.5 bar10 bar8 m³/h50°CIP651″0.72 kgr
