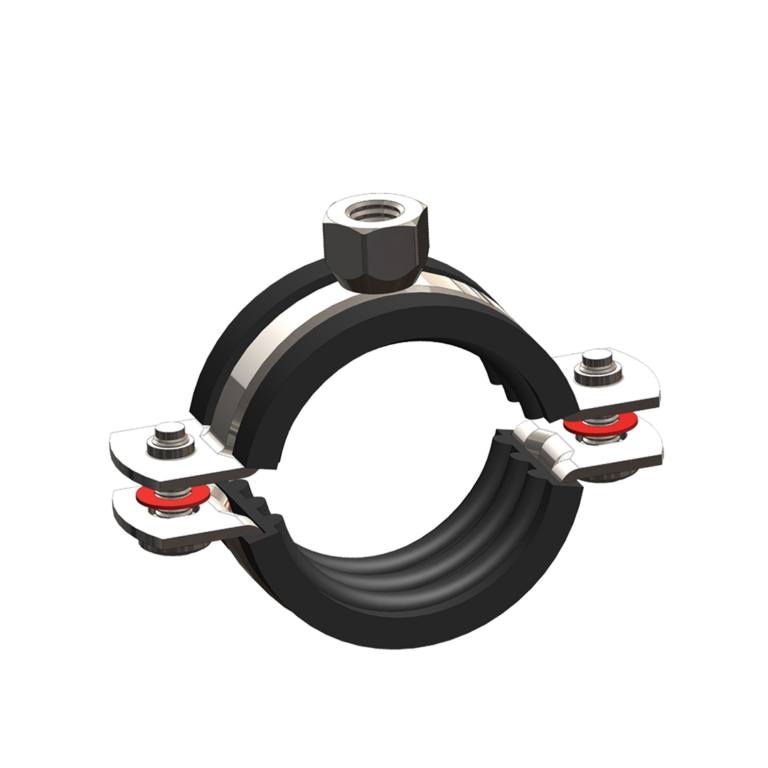

Stainless steel (304) pipe clamp with nut & rubber
MODEL:
NSPS
Galvanized pipe fittings are designed to support and fasten the pipes.
Used in the assembly of the pipes to the wall (vertically and horizontally), to the ceiling, and to the ground.

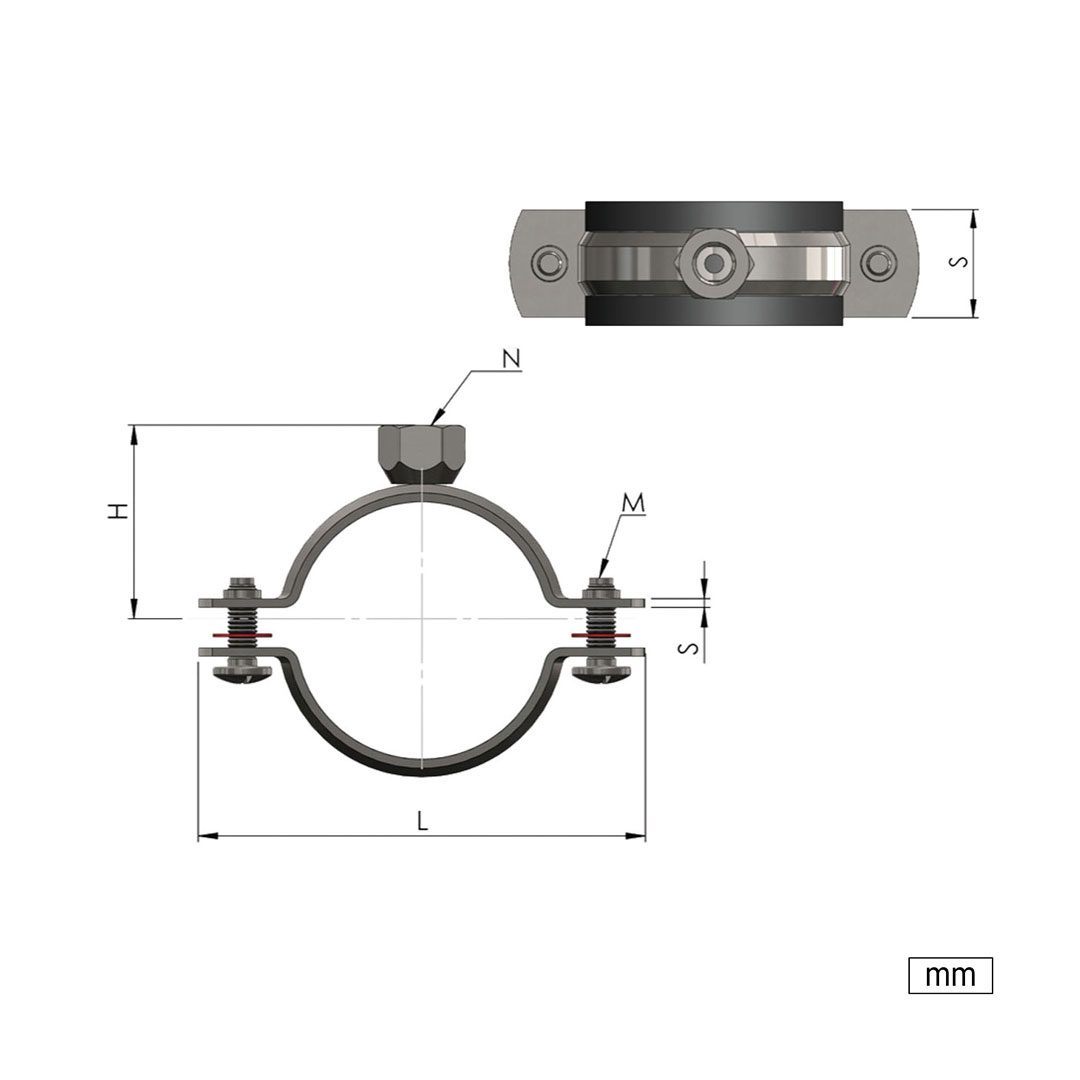

Dimensions & Performances
ZOOM IN
| Code | Size | Claming ragne (mm) | L (mm) | H (mm) | M | SxB (mm) | N | Quantity per box |
|---|---|---|---|---|---|---|---|---|
| NSPS040 | 1½” | 48-53 | 99 | 42,5 | M6 | 1,5×20 | M8 | 75 |
| NSPS050 | 2″ | 59-66 | 112 | 49 | M6 | 1,5×20 | M8 | 50 |
Catalogue
