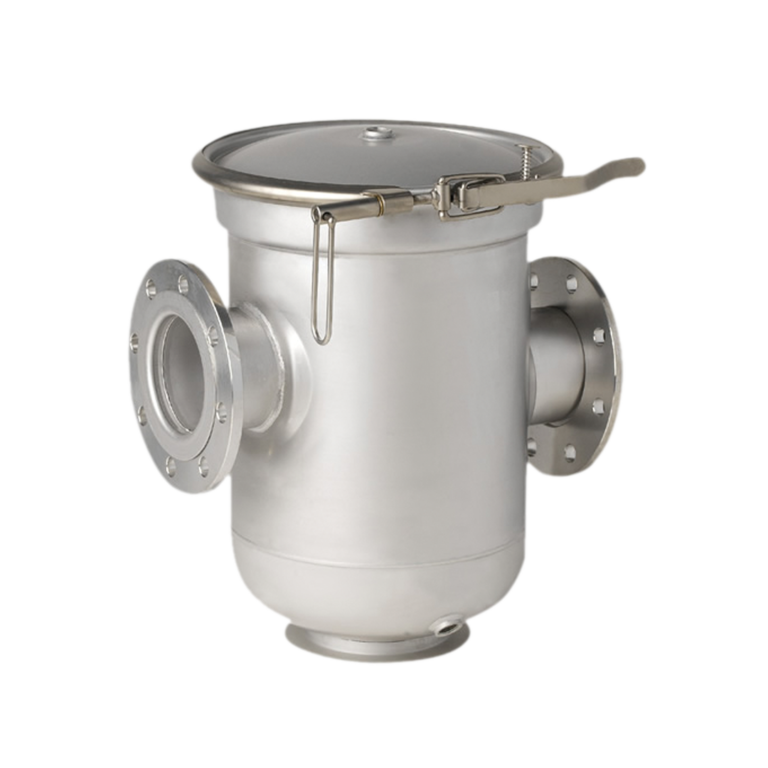

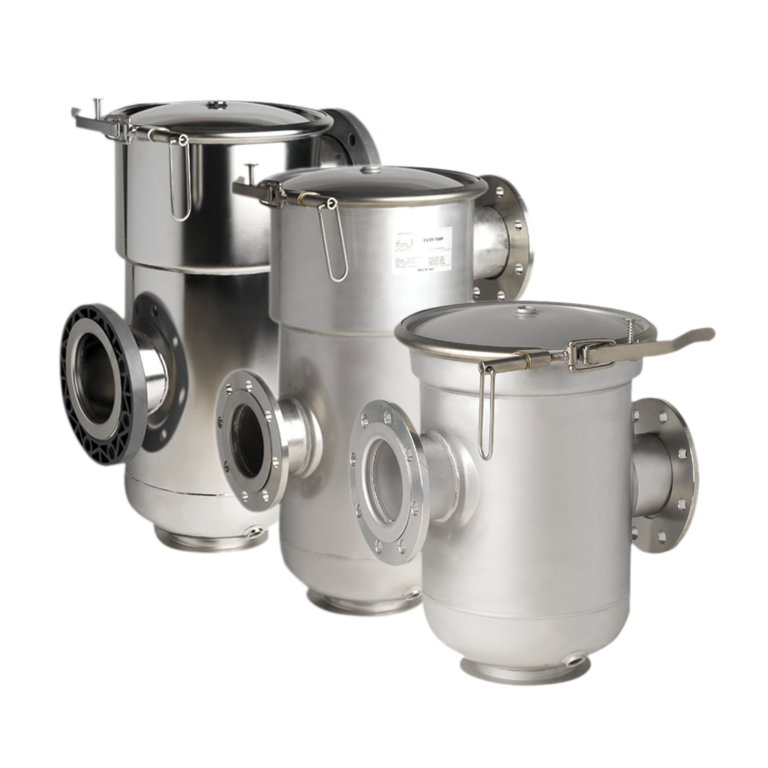

Stainless steel prefilters with removable basket

MODEL: PFP292 & PFP292 TF
MANUFACTURER:
Clear

The PFP series of prefilters with extractable baskets are entirely made of AISI-304 or AISI-316 stainless steel.

In both cases, the inside baskets, with a standard Ø 6mm perforation (different perforations), are made of AISI 316. The PFP250… AP models can function at working pressures up to 8 bar, while all the other models can function at a working pressure of 3 bar max.

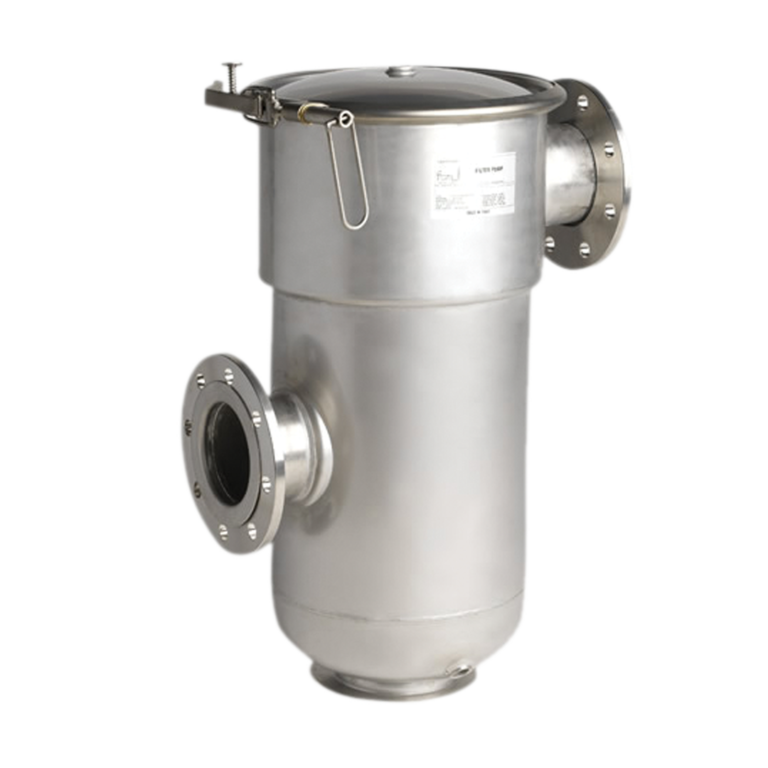

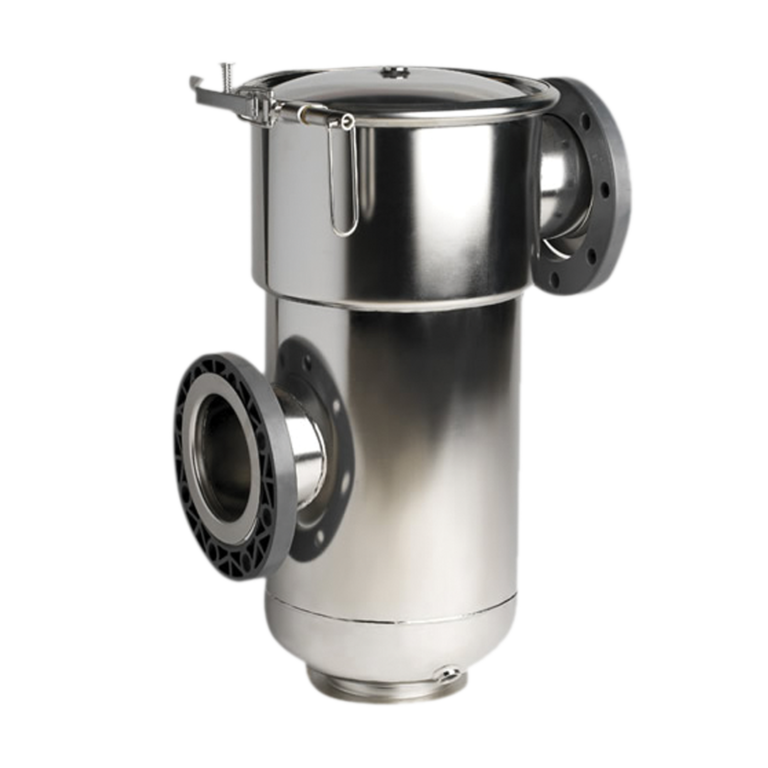

With the PFP…TF models, the untreated water plunges into the filtering basket from above, while the untreated water flows directly into the filtering basket in all the other models.

The inlet and outlet connections have UNI-ISO 228/1 threading or UNI 6090-67 Pn 16 free flanges.

Two couplings are welded onto the cover and on the lower convex bottom for air inlet and venting and to empty the prefilter.

The cover is closed by a clamp with a lever which is extremely simple and reliable.

External and/or internal electropolishing may be done on request.

Please select product code
Expression of Interest Form

In case you are a professional, fill in the name of your company.









    * Obligatory fields

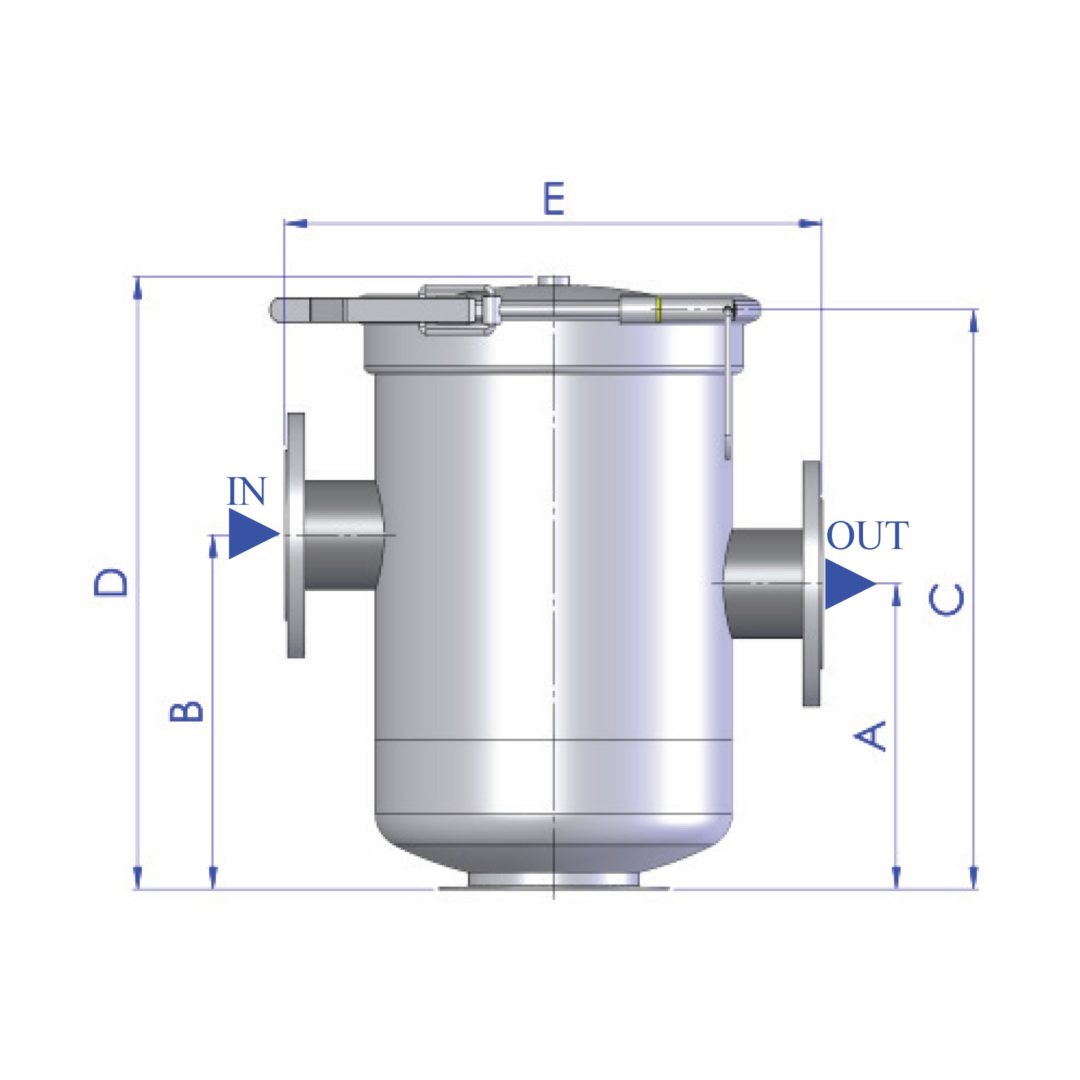

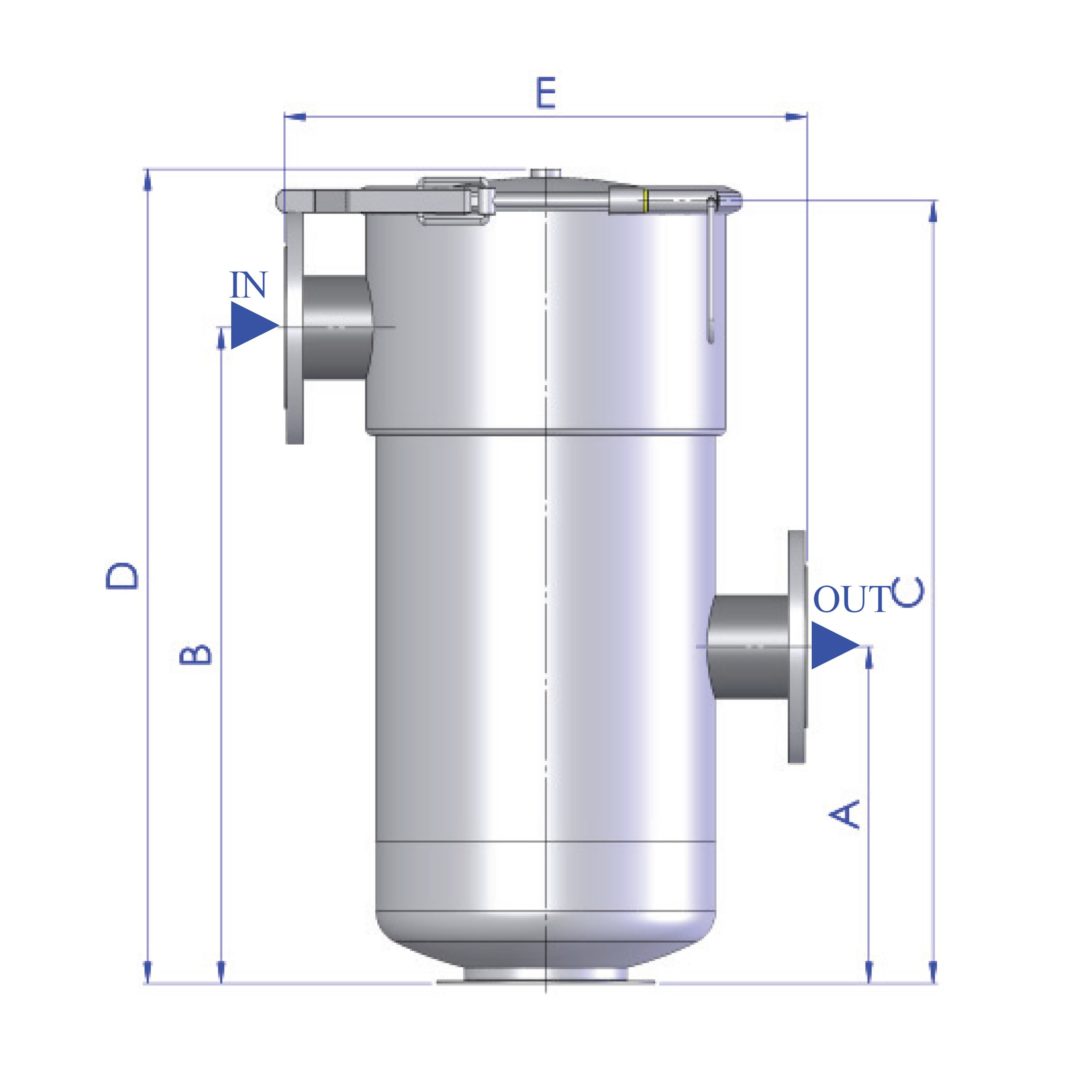

    Dimensions & Performances
    Models A (mm)B (mm)C (mm)D (mm)E (mm)
    PFP292 SS 304-80 250290474501440
    PFP292SS 316-80 250290474501440
    PFP292 SS 304-80 TF290565674701450
    PFP292 SS 316-80 TF290565674701450
    PFP292 SS 304-100 250290474501440
    PFP292 SS 316-100 250290474501440
    PFP292 SS 304-100 TF290565674701450
    PFP292 SS 316-100 TF290565674701450
    PFP292 SS 304-125 250290474501440
    PFP292 SS 316-125250290474501440
    PFP292 SS 304-125 TF290565674701450
    PFP292 SS 316-125 TF290565674701450
