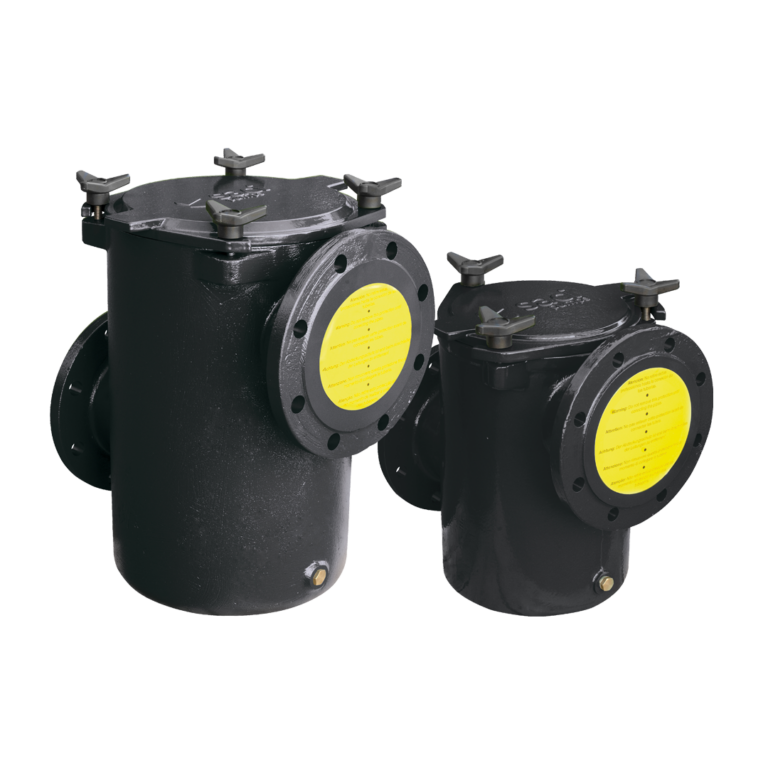

Cast iron pre-filter

Name: Cast iron pre-filter
SKU: IP
Price: 1.00 EUR
Availability: InStock

MODEL: IP

MANUFACTURER:

Inlet and outlet clamps in accordance to the DIN 2501 with connections from DN-65 (2½”) to DN-200 (8”) with 3-4 closing handles (depending on the model) for a perfect lid seal.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

The strainer is in stainless steel AISI-316.

ZOOM IN

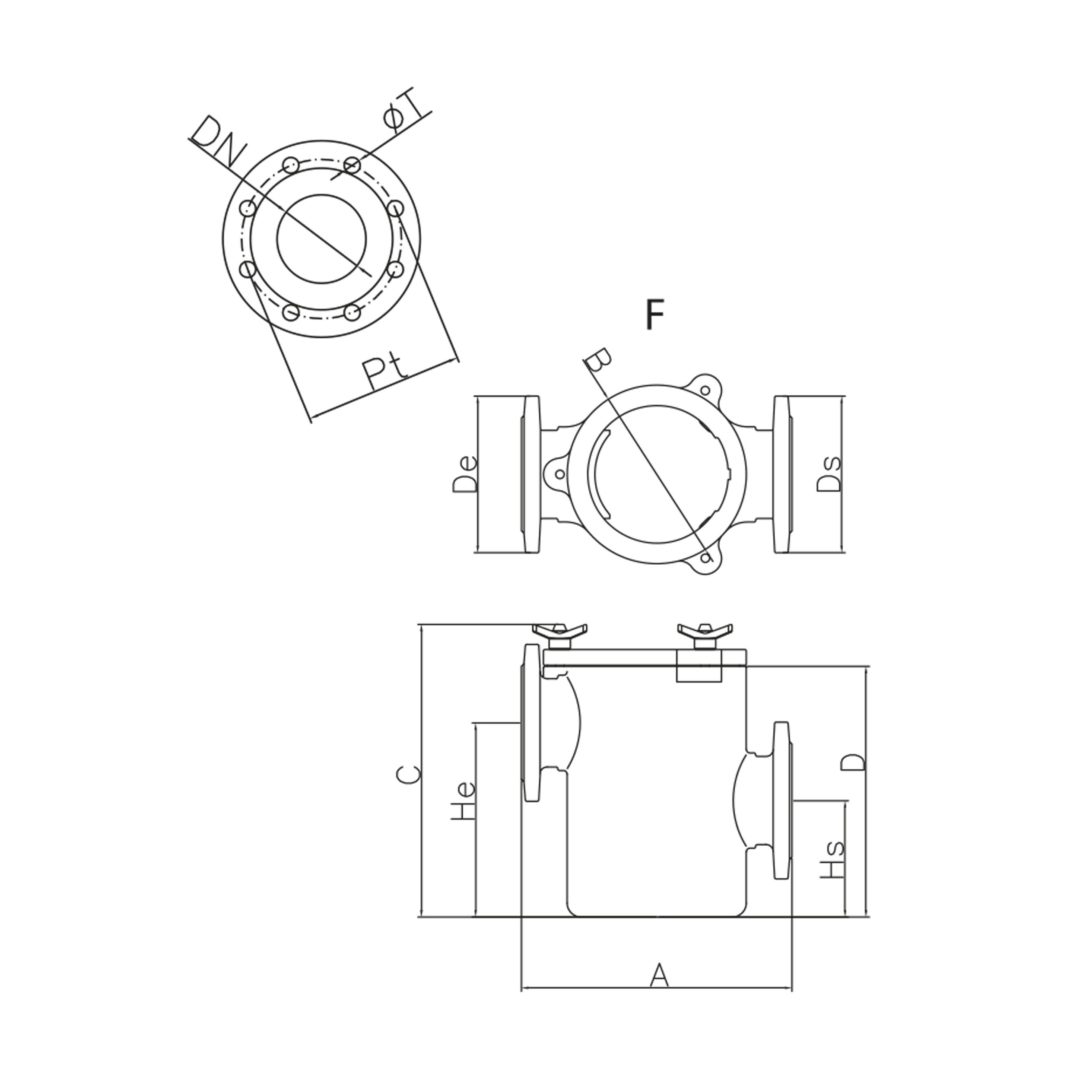

Models	Dn	Pt	De	Ds	A	B	C	D	He	Hs	Ø T
IP-65/65	65	145	185	185	380	260	415	360	250	120	18
IP-80/80	80	160	200	200	380	260	415	360	250	120	18
IP-100/100	100	180	220	220	380	260	415	360	270	155	18
IP-125/125	125	210	250	250	380	260	415	360	270	155	18
IP-150/150	150	240	285	285	460	340	555	500	380	190	22
IP-200/200	200	295	340	340	460	340	555	500	380	190	22
