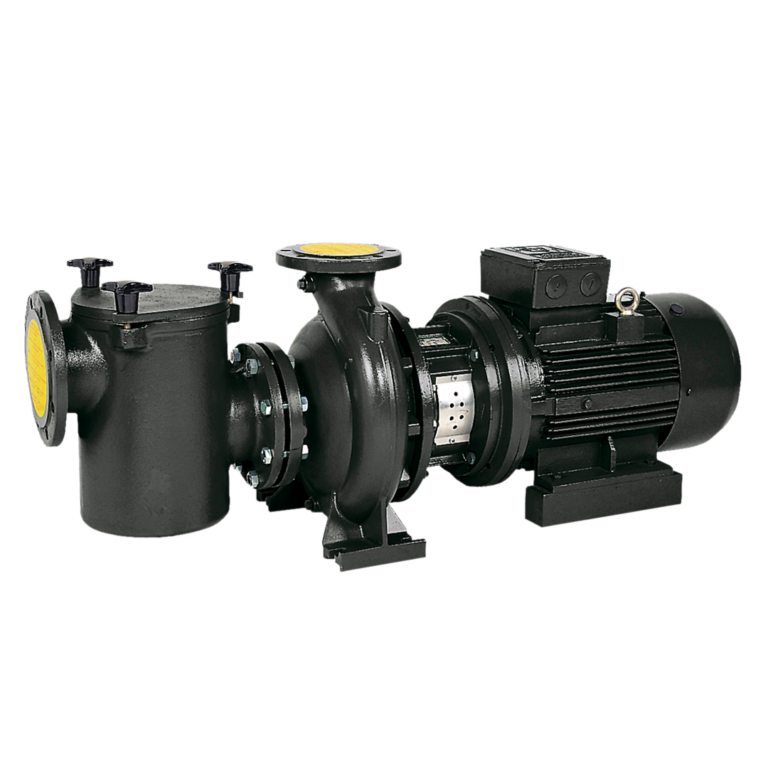

Cast iron centrifugal pump, 1.450rpm

Name: Cast iron centrifugal pump, 1.450rpm
SKU: CIS
Price: 1.00 EUR
Availability: InStock

MODEL: CIS

MANUFACTURER:

A large volume pump, to which a pre-filter has been applied in the inlet, makes these the ideal pumps for large filtering units.

The fact that the pump works with a 1.450rpm motor, makes it very quiet and long-lasting.

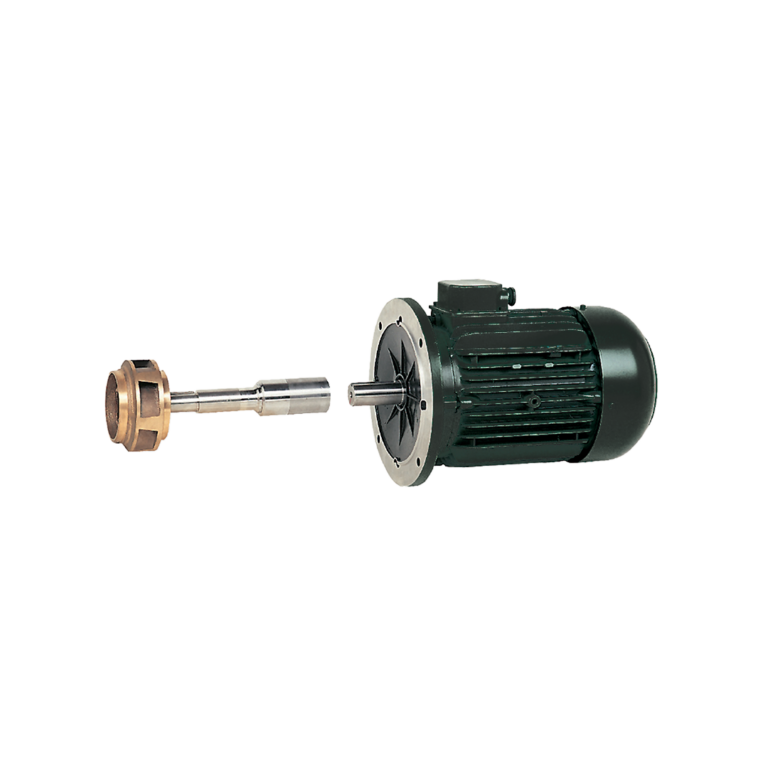

On request, the impeller can be produced in bronze (the standard is in cast iron) and the mechanical seal in tungsten carbon, AISI-316, EPDM, Viton, etc.

Please select product code

Expression of Interest Form

In case you are a professional, fill in the name of your company.

Pump body, support, pre-filter and impeller in cast iron.
Shaft-coupling in AISI-304 stainless steel and pre-filter basket in AISI-316.
Mechanical seal in carbon-cilicium carbide.

Standard asynchronous motor, sealed with external ventilation. Its standard construction allows it to be replaced by another standard motor at any time and in any place.
Protection IP-55, 50-60Hz / 1.450rpm.

ZOOM IN

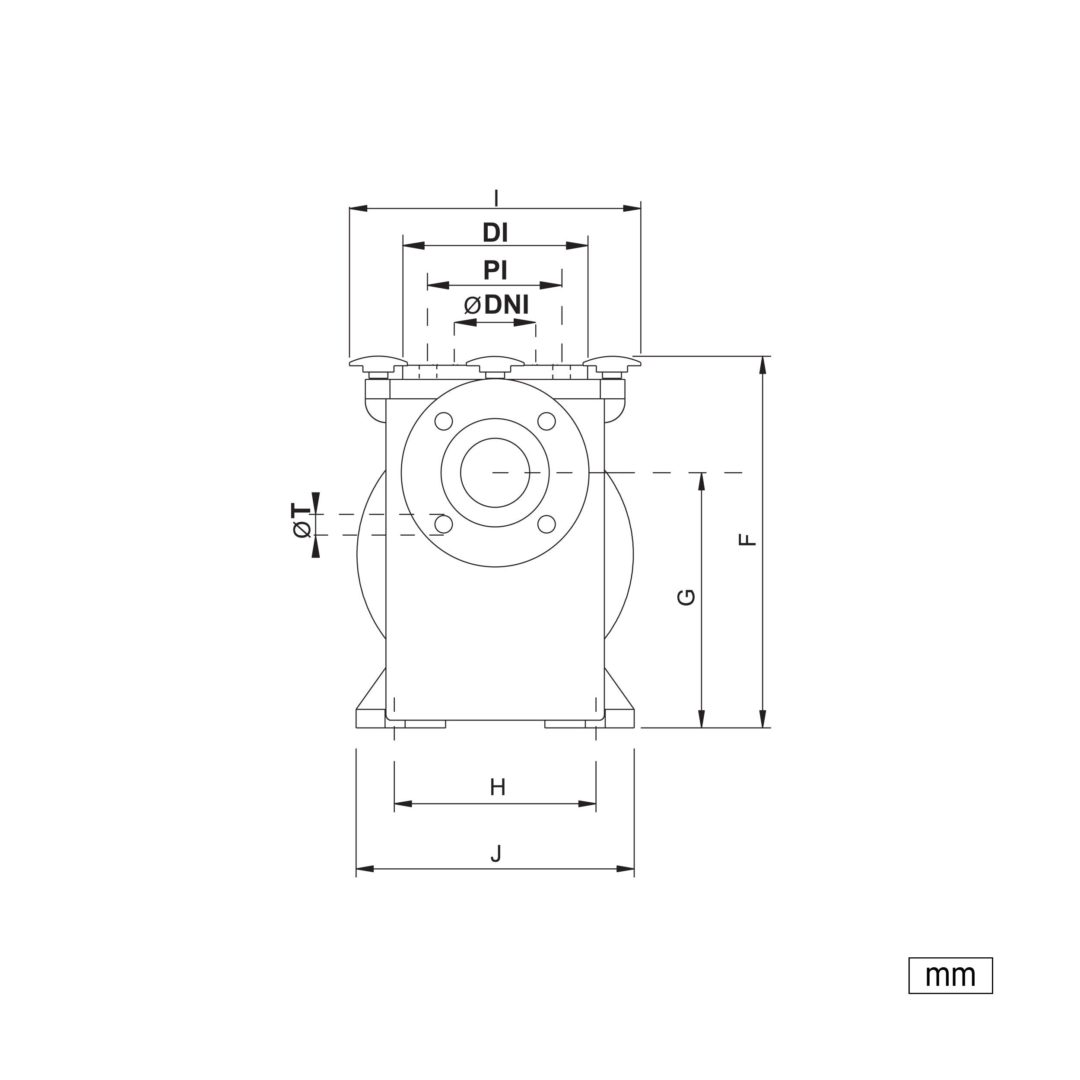

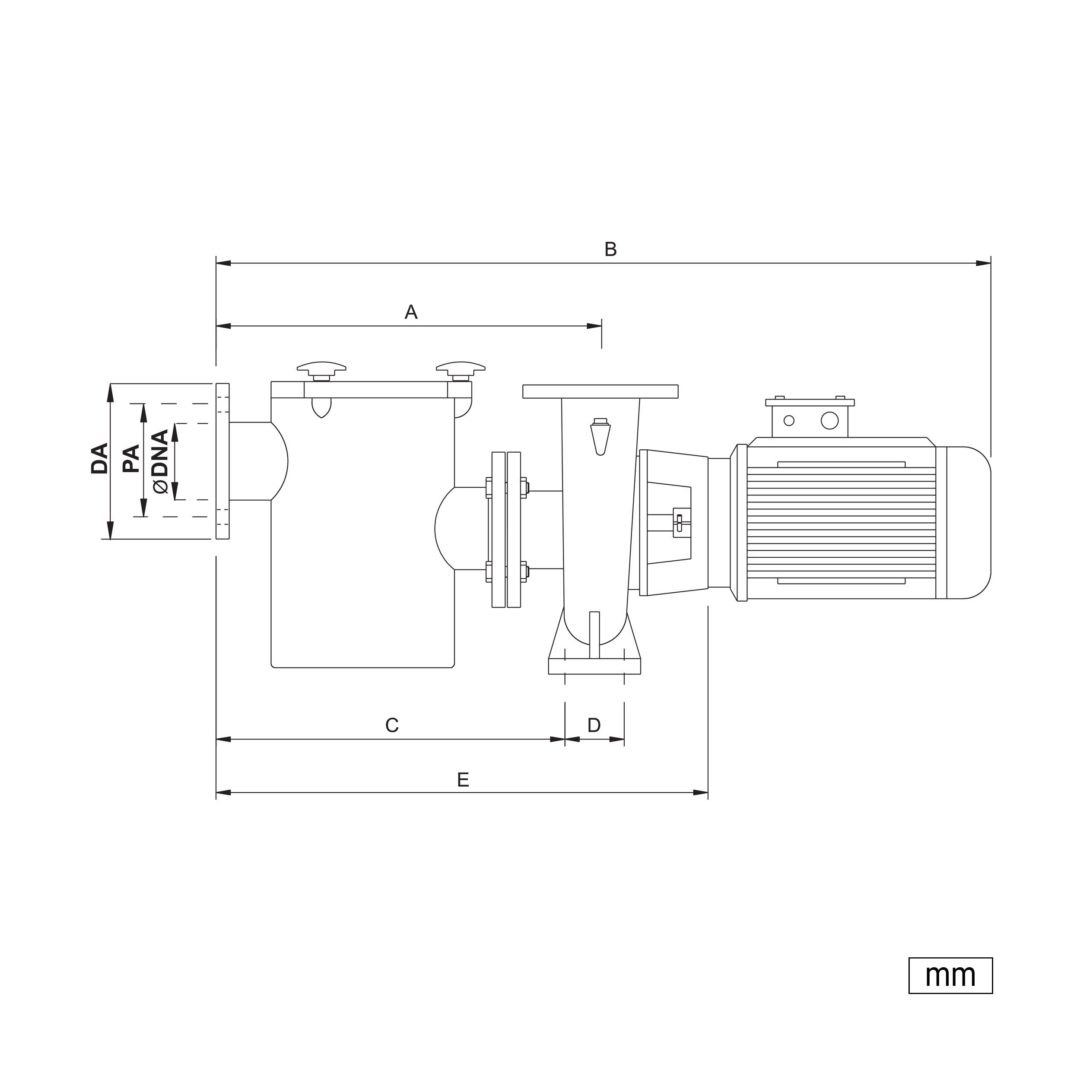

Model	HP	Α (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	I (mm)	J (mm)	Ø DNA	DA	PA	NºT	Ø T	Ø DNI	DI	PI
CIS-300-IE3	3,0	465	979	430	70	639	360	250	212	265	302	65	185	145	4	18	50	165	125
CIS-400-IE3	4,0	442	998	398	95	616	450	250	250	320	333	80	200	160	4	18	65	185	145
CIS-550-IE3	5,5	442	1021	398	95	616	450	250	250	320	333	80	200	160	4	18	65	185	145
CIS-552-IE3	5,5	490	1138	443	95	733	430	270	280	345	365	100	220	180	8	18	80	200	160
CIS-750-IE3	7,5	490	1248	443	95	733	430	270	280	345	365	100	220	180	8	18	80	200	160
CIS-1000-IE3	10,0	500	1258	440	120	743	480	270	280	360	392	125	250	210	8	18	100	220	180
CIS-1500-IE3	15,0	515	1413	455	120	788	505	270	315	400	424	125	250	210	8	18	100	220	180
CIS-2000-IE3	20,0	585	1528	525	120	858	611	380	315	400	472	150	290	240	8	18	125	250	210
CIS-2500-IE3	25,0	585	1558	525	120	858	611	380	315	400	472	150	290	240	8	18	125	250	210
